BXL-DZ20 Veterinary Color Doppler Ultrasound Diagnostic Instrument

Product Features: Wireless connection color image
Working: ≥3H
Screen: 15 Inch
Sunshade:
Weight: 6KG
Water-proof、Dush-proof、Drop-proof。
Description Warranty Info
Description

The BXL-DZ20 veterinary color Doppler ultrasound diagnostic instrument is mainly used for animal reproductive organ examination, backfat eye muscle, heart, organ, and tendon examination.

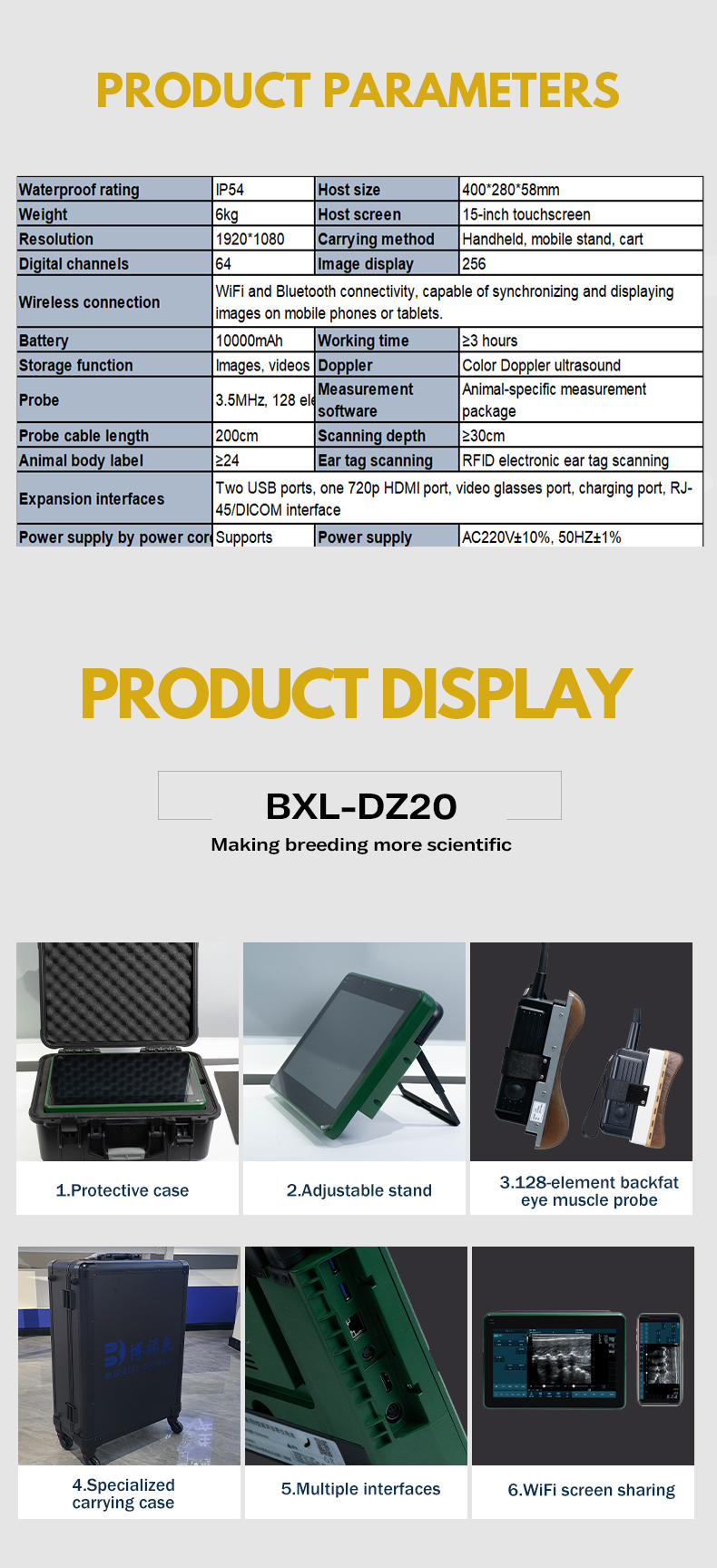

BXL-DZ20 Main technical Specifications


1. Applicable conditions: waterproof and dustproof, IP54,anti-fall


2. Device weight: 6KGs


3. Main screen size: 15-inch touch screen Resolution: 1920*1080


4. Power supply: AC220V±10%,50Hz±1


5. The device has a handle (can be suspended), a mobile bracket (adjustable angle), and can be suspended on a mobile cart.


6. Host channel numbers: 64 channels, Windows 10


7. Full-area synthetic aperture beamformer, real-time point-by-point dynamic reception focusing technology


8. Image rotation: 0 °, 90 °, 180 °, 270 ° rotation; Image flip: up and down, left and right, Image adjustment: focus adjustment, focus position and quantity adjustable. The image frame is adjusted on average and the frame is adjustable on average. The spots are reduced with 5 adjustments.


9. Image display: 256 grayscale scan depth: ≥30cm


10. Total gain: 0-100 Adjustable Left and Right Segment Gain 8 Segment Adjustable


11. Conventional measurements and calculations: distance, depth, area, circumference, volume, angle, narrow ratio, ratio, speed, gradient, acceleration, heart rate, histogram, anatomy, IMT measurements. Automatically generate and print reports on a variety of conventional measurements


12. Animal body marker: ≥24 Species


13. Measurement calculation software Package: Animal Specific Measurement Package


14. Host with stylus, wireless connection keyboard, wireless connection mouse


15. With one-click full screen function; System vertical screen display function


16. Positive and Negative Pulse Harmonic Imaging Technology and Real-time Dynamic Deformation Technology


17. Working time: ≥3 hours

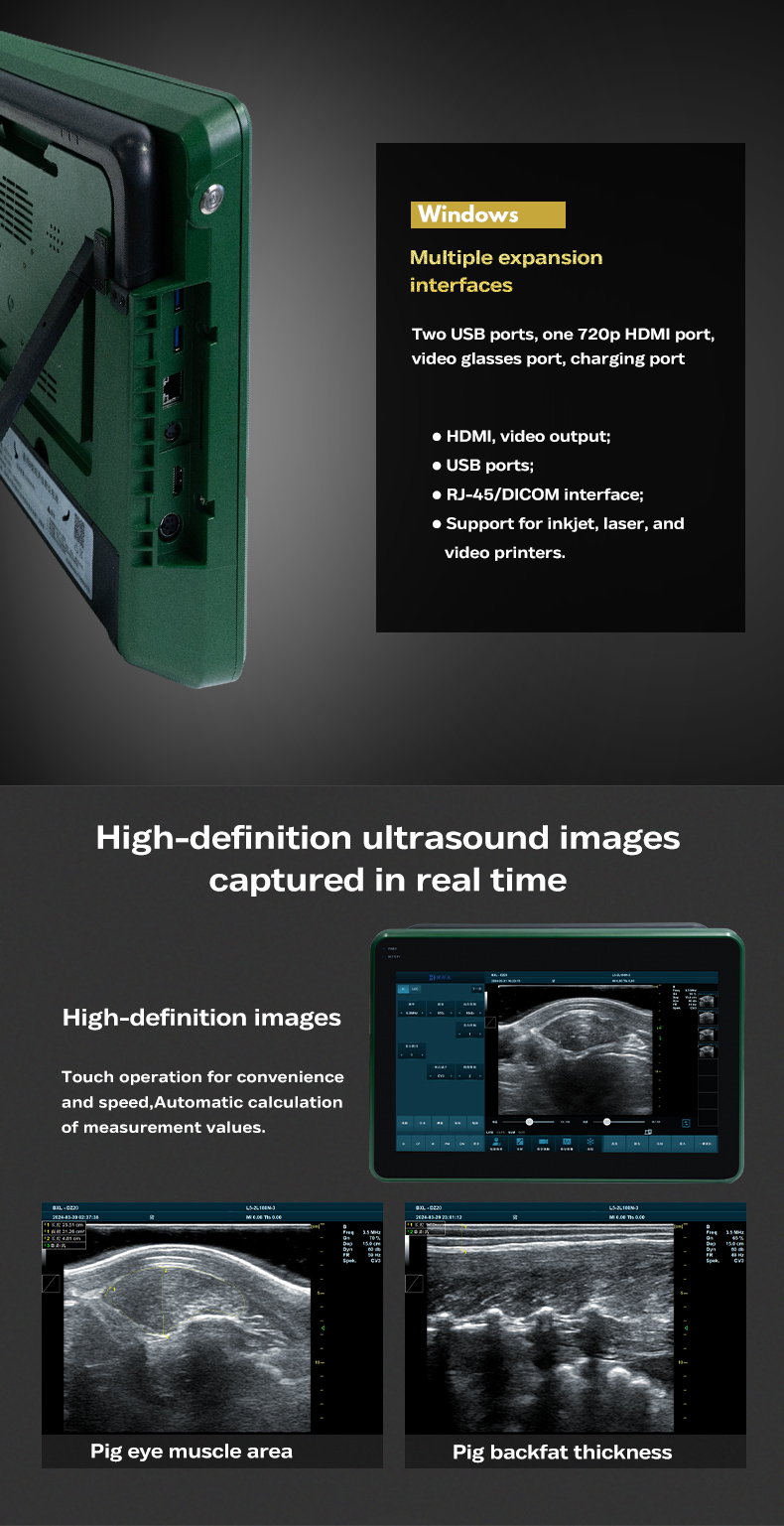

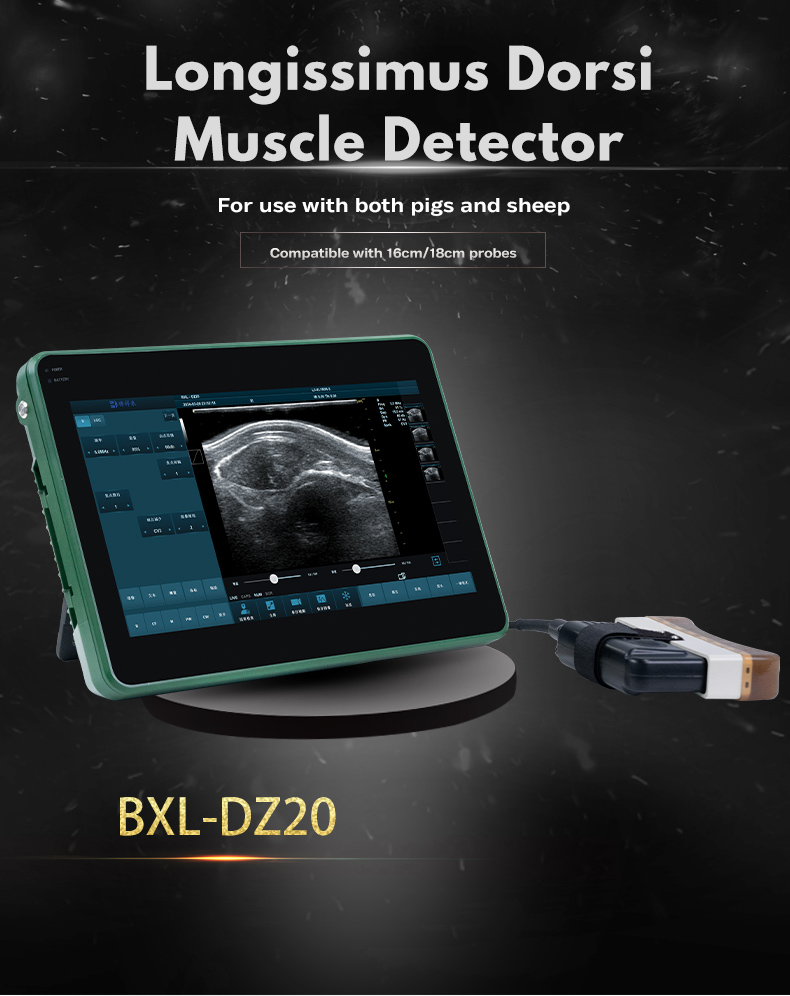

BXL-DZ20 Veterinary Color Doppler Ultrasound Diagnostic Instrument(图1)

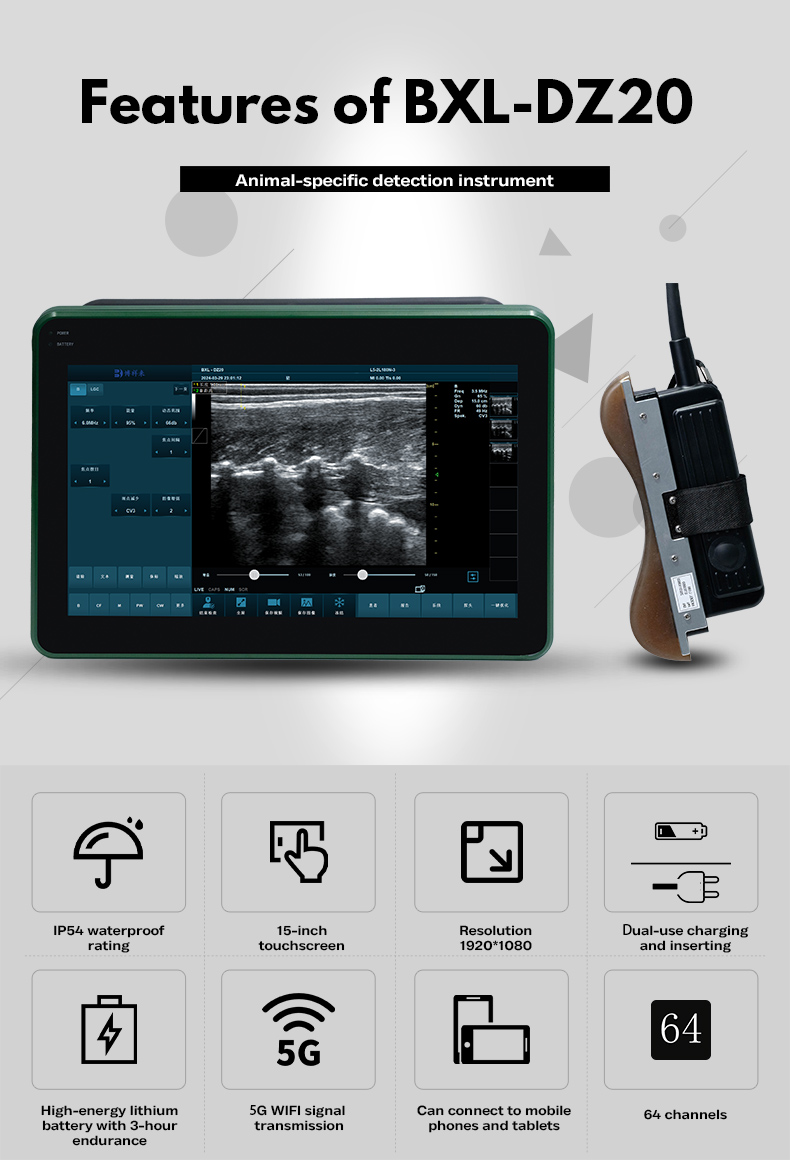

BXL-DZ20 Veterinary Color Doppler Ultrasound Diagnostic Instrument(图2)

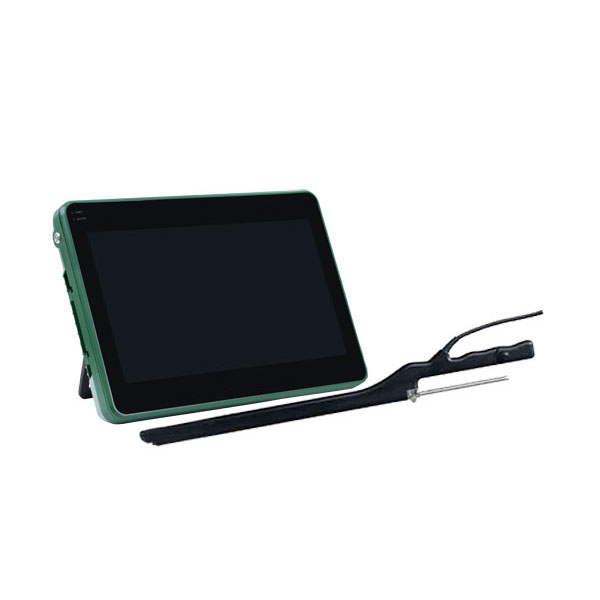

BXL-DZ20 Veterinary Color Doppler Ultrasound Diagnostic Instrument(图3)

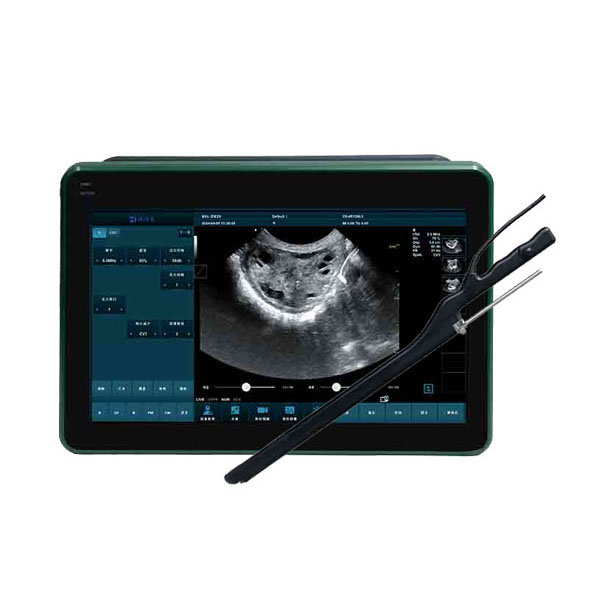

BXL-DZ20 Veterinary Color Doppler Ultrasound Diagnostic Instrument(图4)

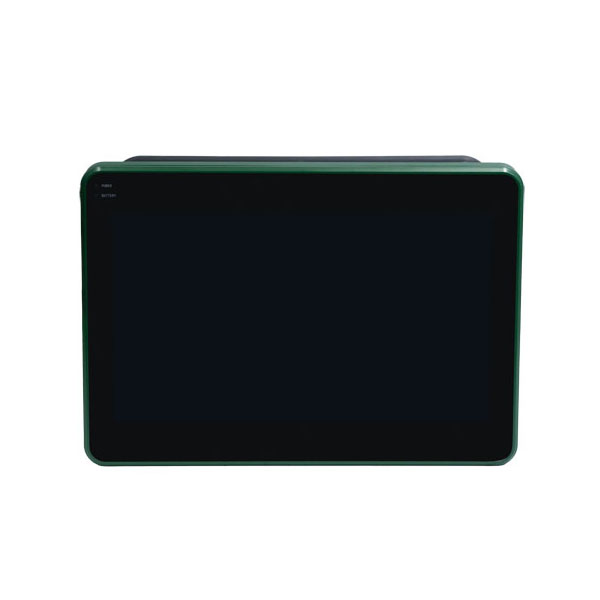

BXL-DZ20 Veterinary Color Doppler Ultrasound Diagnostic Instrument(图5)

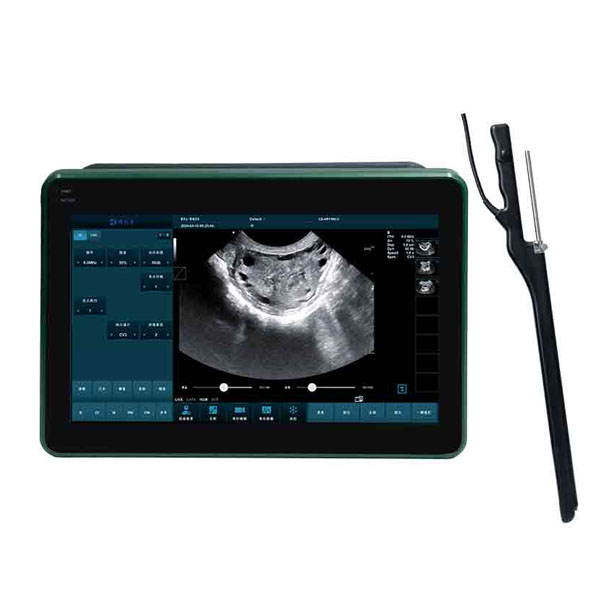

BXL-DZ20 Veterinary Color Doppler Ultrasound Diagnostic Instrument(图6)

Warranty Info

Main unit: 18 months
Probe: 12 months
