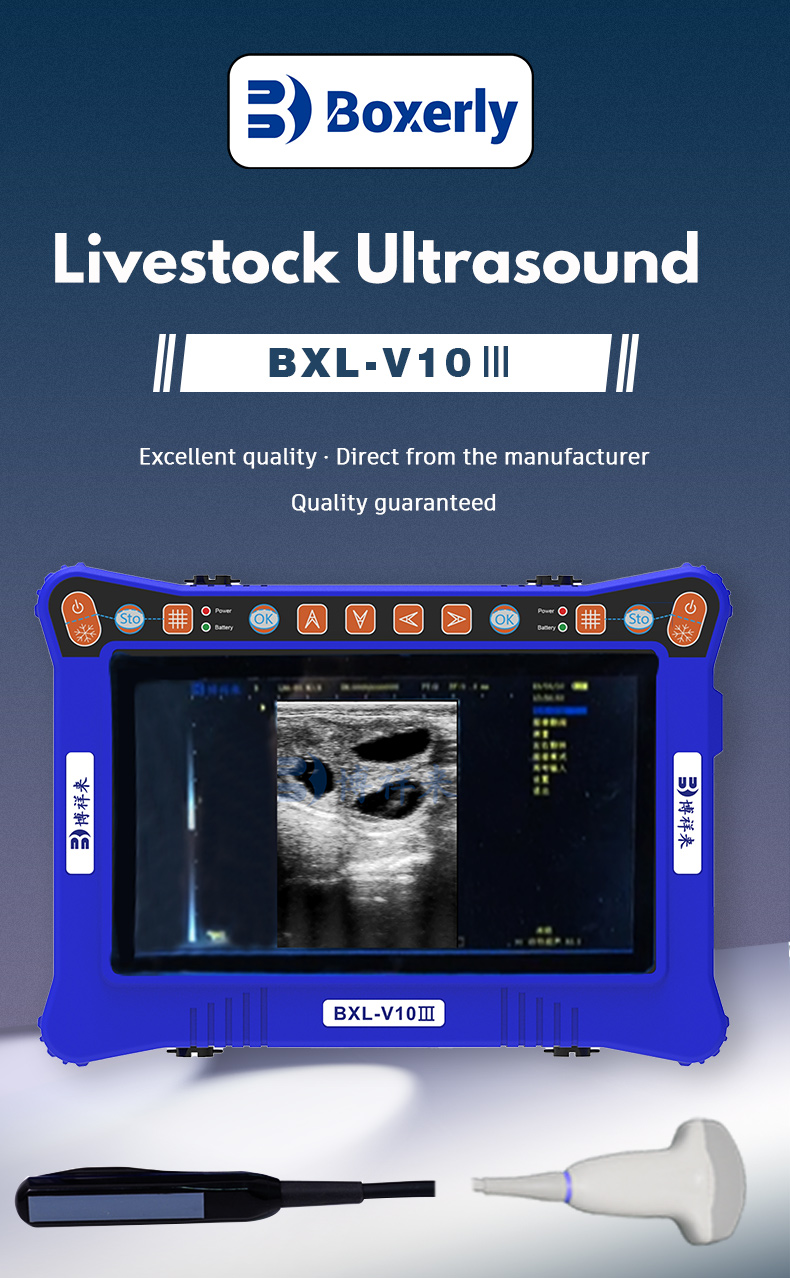

BXL-V10Ⅲ

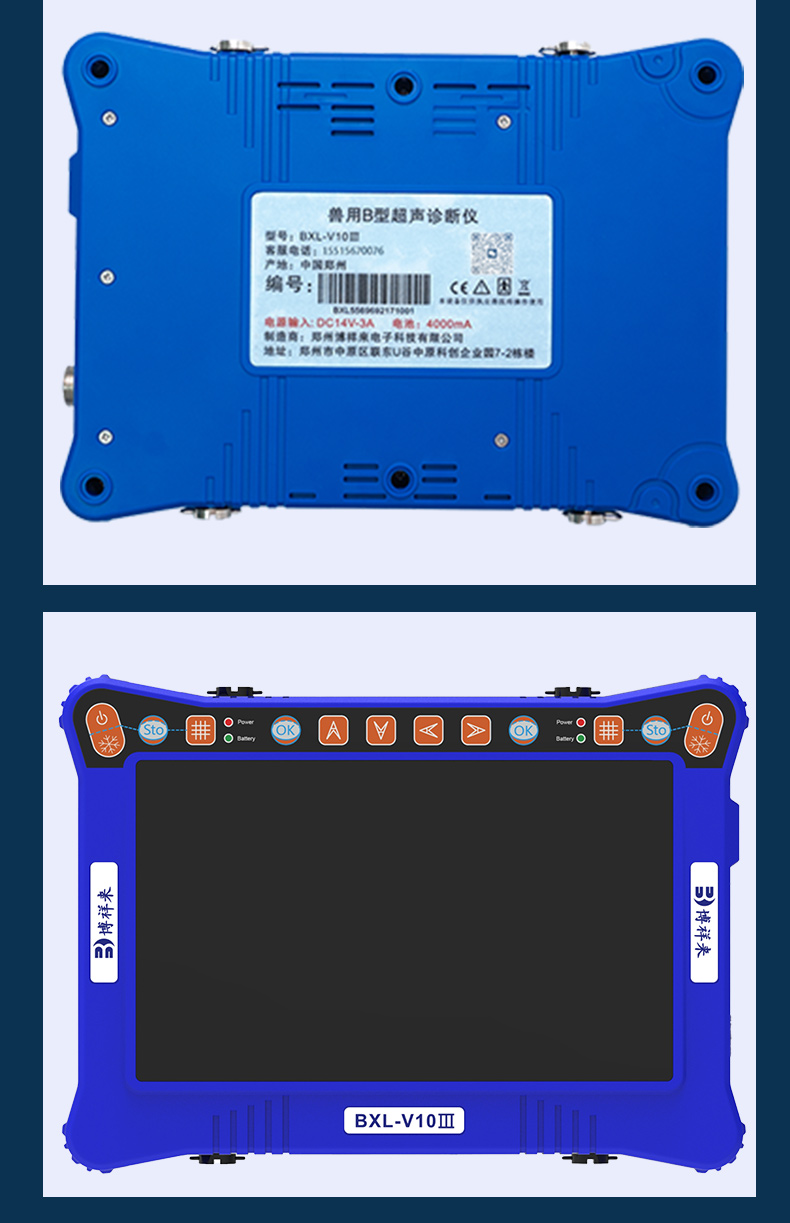

The BXL-V10Ⅲ is a high-performance veterinary ultrasound scanner featuring a strap-style handheld design and IP54-rated waterproof and dustproof protection. Equipped with a ≥7.0-inch HD LCD, it supports electronic convex, micro-convex, and linear array scanning. The system offers advanced imaging technologies including DBF, RDA, DRA, and DFS, delivering clear, high-resolution images. With over 6 hours of battery life, 256 grayscale levels, multiple pseudo-color modes, and one-touch USB storage, it ensures efficiency and clarity in field diagnostics. Standard configuration includes a 6.5 MHz rectal or 3.5 MHz convex probe.

Talk to an expert

Specifications

BXL-V10Ⅲ Portable USG Veterinary ultrasound Machine is an ultra-lightweight Portable USG machine that offers diagnostic imaging, even capable of examining the smallest structures. It comes in three versions: linear rectal probe, convex recta

BXL-V10Ⅲ Portable USG Veterinary Ultrasound Machine(图1)

BXL-V10Ⅲ Portable USG Veterinary Ultrasound Machine(图2)

BXL-V10Ⅲ Portable USG Veterinary Ultrasound Machine(图3)

BXL-V10Ⅲ Portable USG Veterinary Ultrasound Machine(图4)

BXL-V10Ⅲ Portable USG Veterinary Ultrasound Machine(图5)

BXL-V10Ⅲ Portable USG Veterinary Ultrasound Machine(图6)

BXL-V10Ⅲ Portable USG Veterinary Ultrasound Machine(图7)

BXL-V10Ⅲ Portable USG Veterinary Ultrasound Machine(图8)

BXL-V10Ⅲ Portable USG Veterinary Ultrasound Machine(图9)

BXL-V10Ⅲ Portable USG Veterinary Ultrasound Machine(图10)

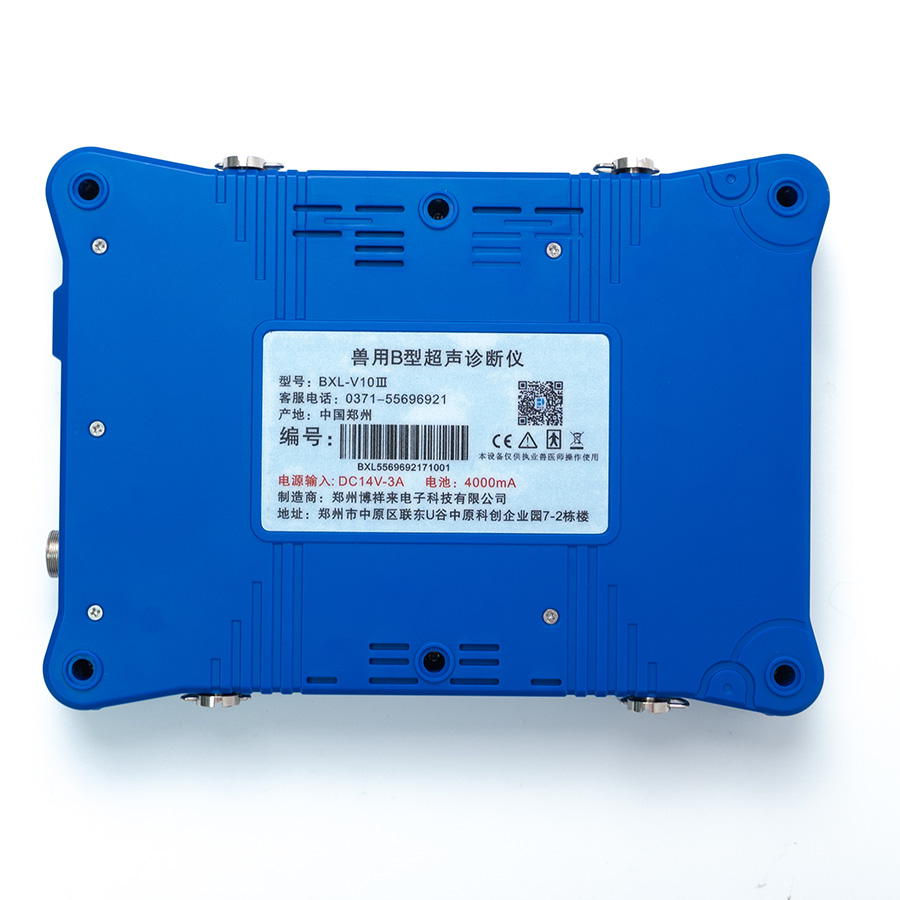

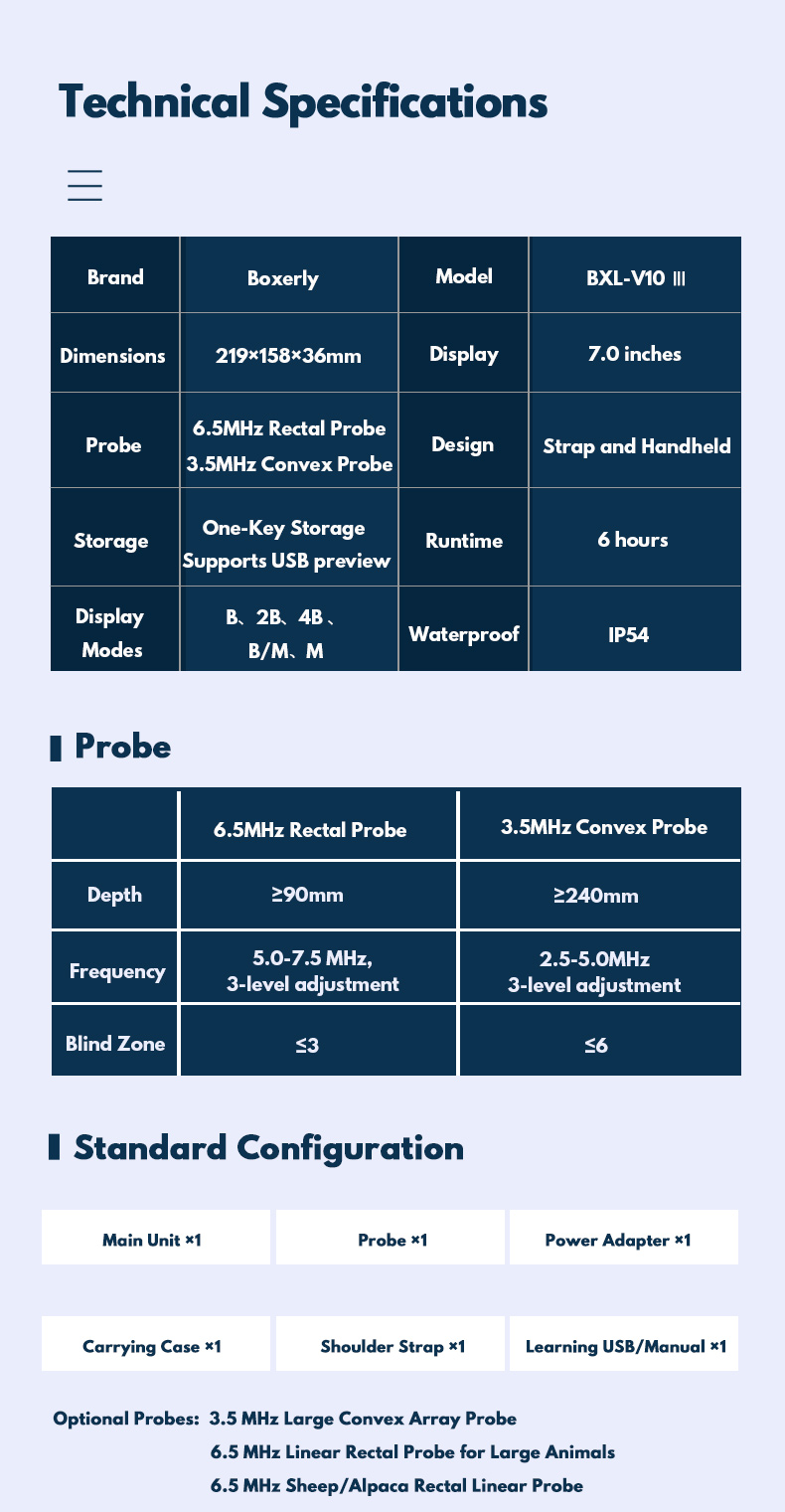

1. Model: BXL-V10Ⅲ

2. Main Unit Dimensions: 219 mm × 158 mm × 36 mm

3. Software Version: B3.3 HD version, specialized veterinary software

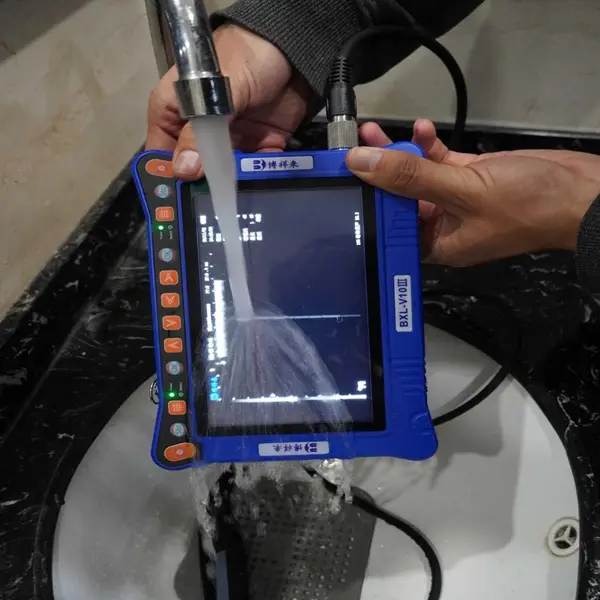

4. Protection: Waterproof and dustproof, with an IP54 rating; robust and durable

5. Controls: Left and right side buttons for ease of use with either hand

6. Battery Life: Over 6 hours of operation on a single charge

7. Design: Strap-style, handheld design

8. Display Screen: 7.0-inch full-view, high-brightness, high-resolution, high-definition LCD, wide temperature range (-30°C to 80°C)

9. Probe Upgrade: No attached accessories

10. Scanning Method: Electronic convex array (micro-convex), electronic linear array

11. Image Processing: Pseudo-color, grayscale correction, image smoothing, histogram, microcomputer control, and digital scan converter (DSC), utilizing technologies such as digital beamforming (DBF), real-time dynamic aperture imaging (RDA), real-time dynamic sound velocity tracking (DRA), real-time dynamic point-by-point receiving focusing (DRF), digital frequency scanning (DFS), and frame correlation, ensuring clear, stable, and high-resolution images

12. Image Display Modes: B, 2B, 4B, B/M, M, and various other display modes

13. Image Display: Large convex probe depth: 90-240 mm, 16 adjustable levels; rectal probe depth: 60-130 mm, 8 adjustable levels; images can be adjusted up/down, left/right, 256 levels of grayscale, 16 types of animal body marks

14. Frequency Adjustment: Three levels of adjustment for the rectal probe (5.0-7.5 MHz) and the large convex probe (2.5-5.0 MHz)

15. Storage: One-touch storage; supports USB storage and previewing, with one-touch storage functionality on both left and right side buttons

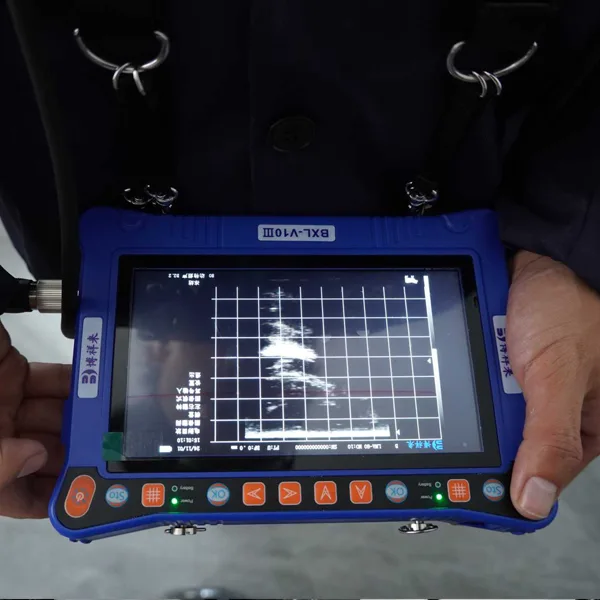

16. Grid Setup: Quick measurement function

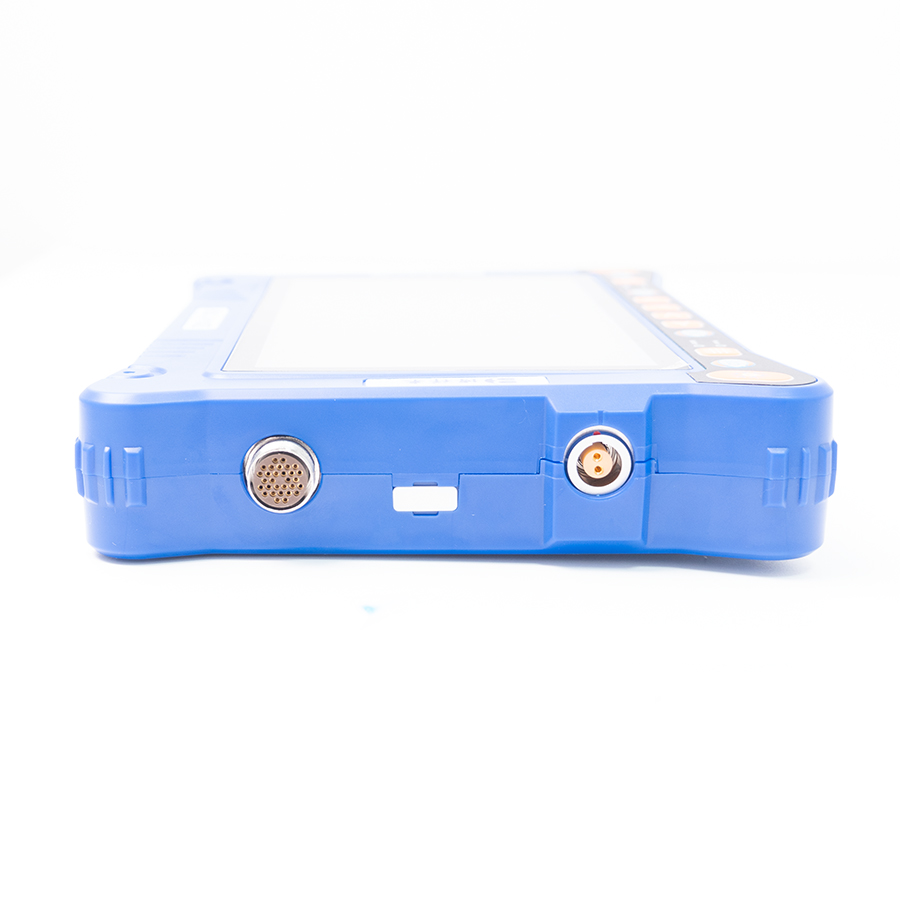

17. Video and Charging Interface: Integrated, eight-pin waterproof interface

18. Grayscale: 256 levels

19. Pseudo-color: Multiple pseudo-color processing options

20. Patent: Patented product

21. Main Unit Rated Input: DC 14V 3.0A

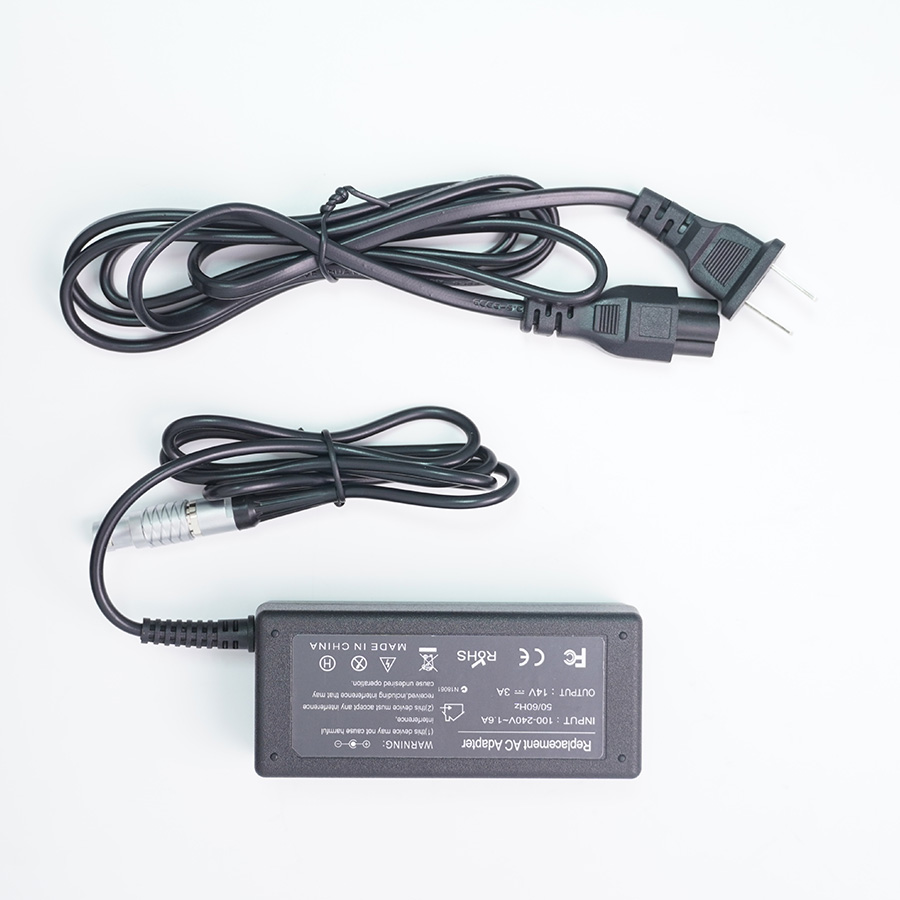

22. Power Adapter Output: DC 14.0V 3.0A

23. Power Supply: 100-240V~1.2-0.6A, Frequency: 50-60Hz

24. Preset Functions: Various system presets

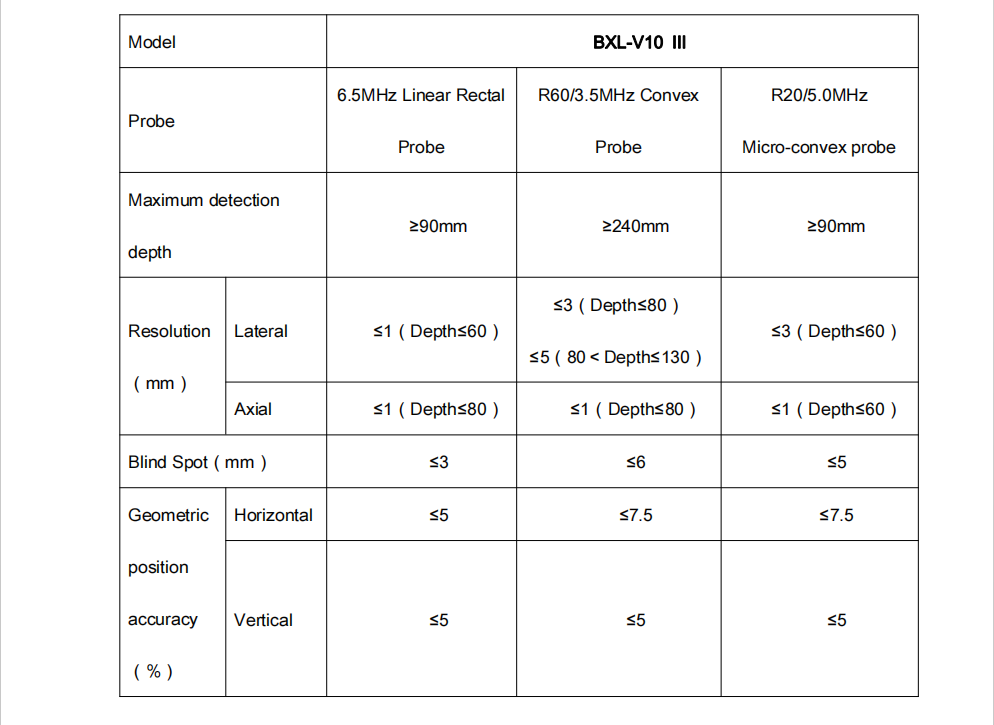

Probe Configuration:

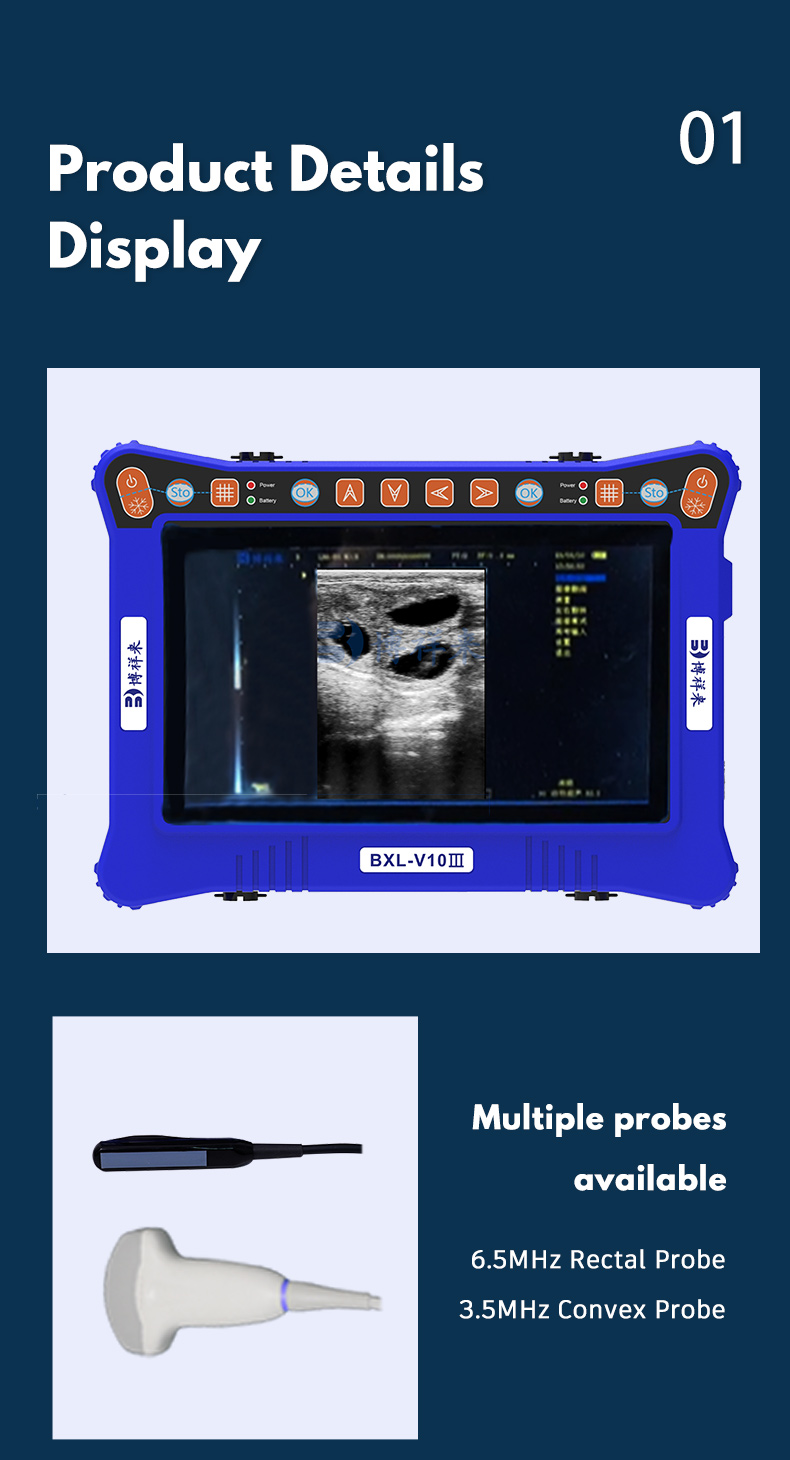

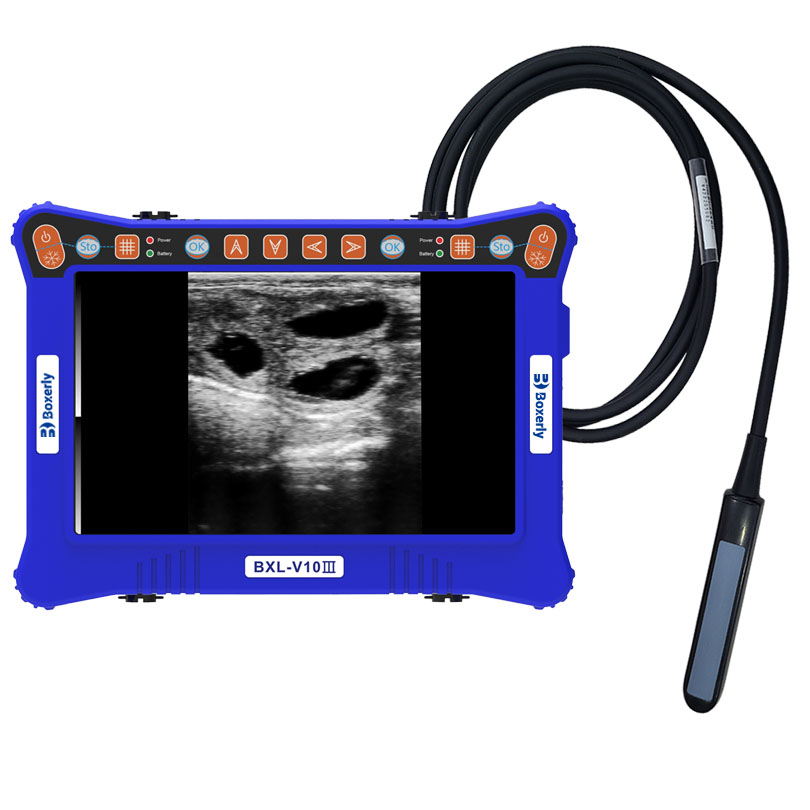

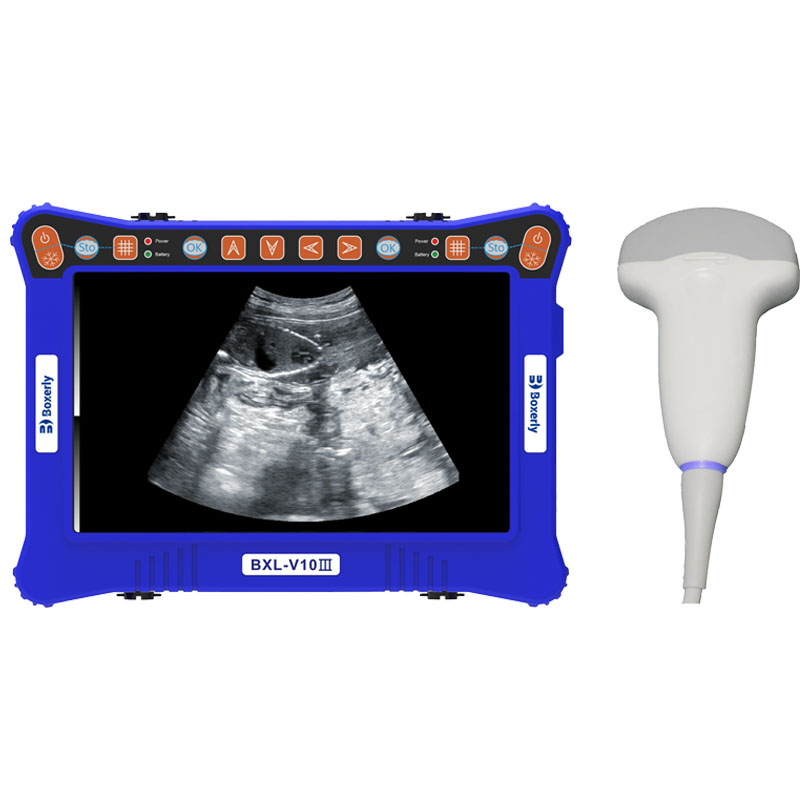

Standard Configuration: 6.5 MHz 80-element rectal probe (or R60/3.5 MHz 80-element convex probe)

Optional Configuration: R20/5.0 MHz 80-element micro-convex probe

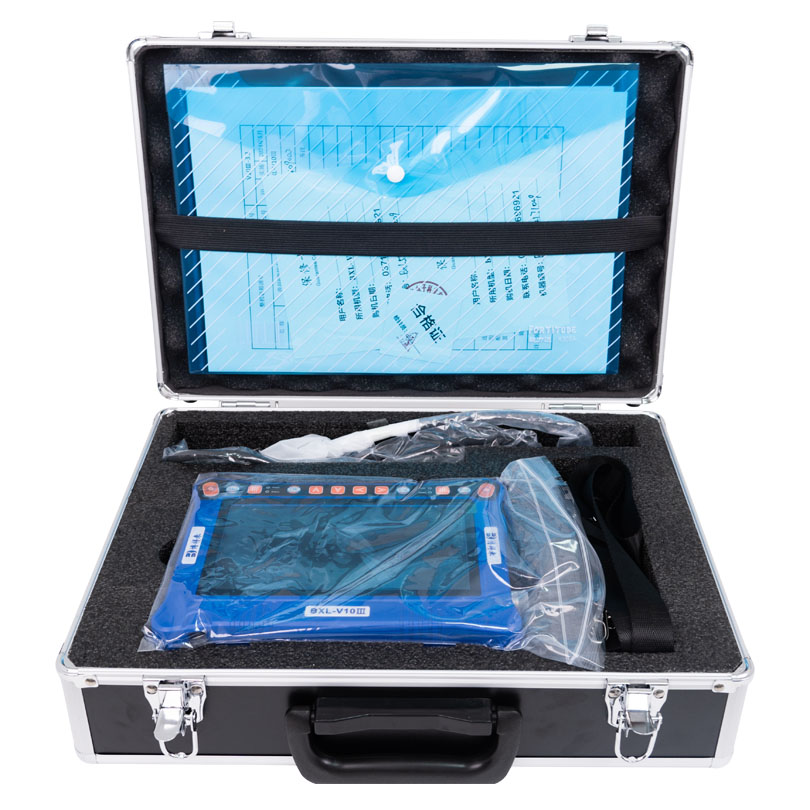

Standard Configuration:

- 1 main unit

- 1 probe

- 1 power adapter

- 1 set of training USB and user manual

- 1 shoulder strap

- 1 carrying case

Optional Probes:

- 3.5 MHz large convex array probe

- 6.5 MHz linear array probe for large animals (rectal)

- 6.5 MHz linear array probe for sheep/alpaca (rectal)

BXL-V10Ⅲ Portable USG Veterinary Ultrasound Machine(图11)

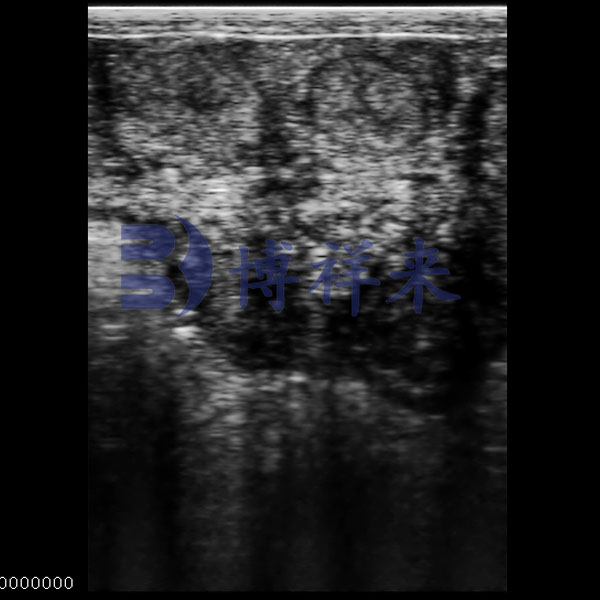

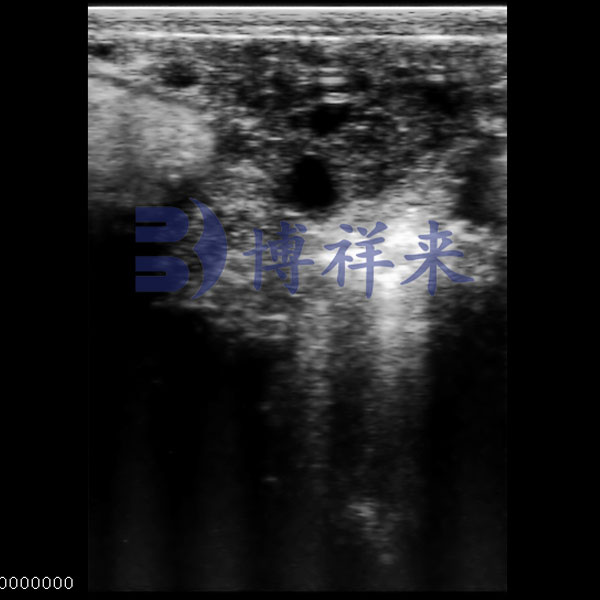

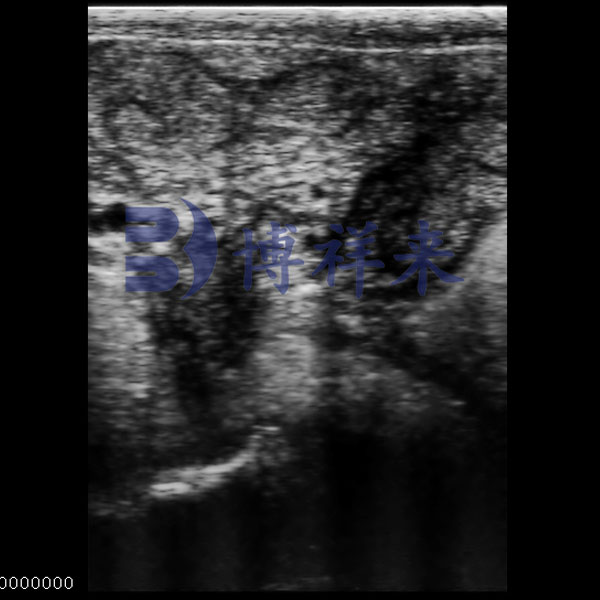

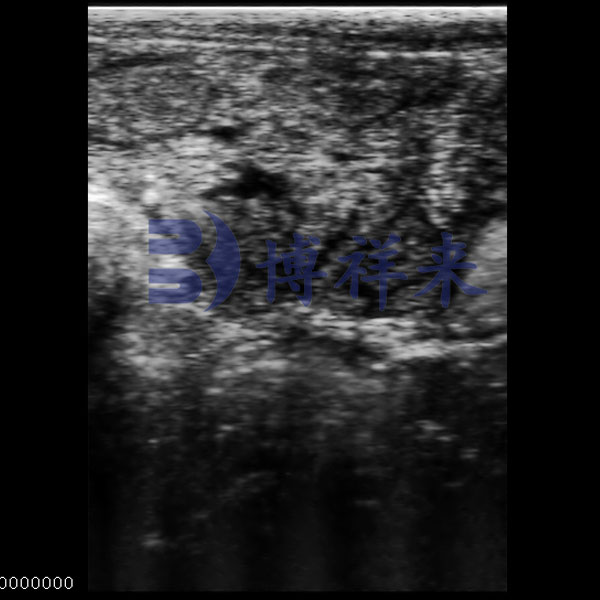

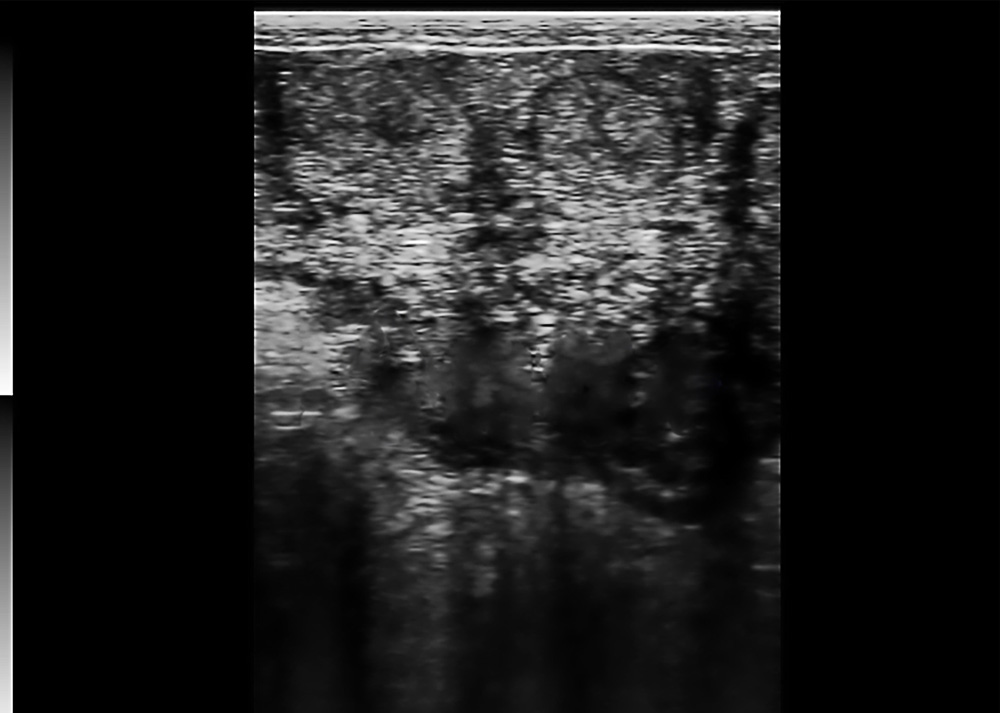

Bovine Uterus Ultrasound

● Shows complete uterine section with clear internal zoning.

● Balanced contrast for identifying tissue makeup.

● Displays wall thickness and lumen features.

● Suitable for reproductive assessment.

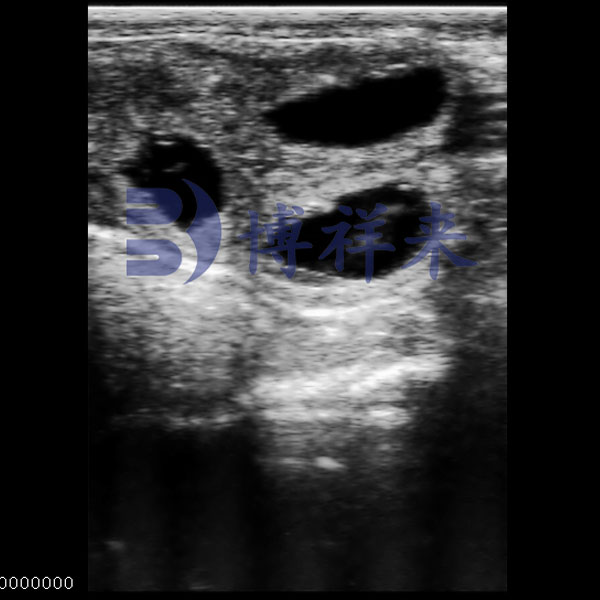

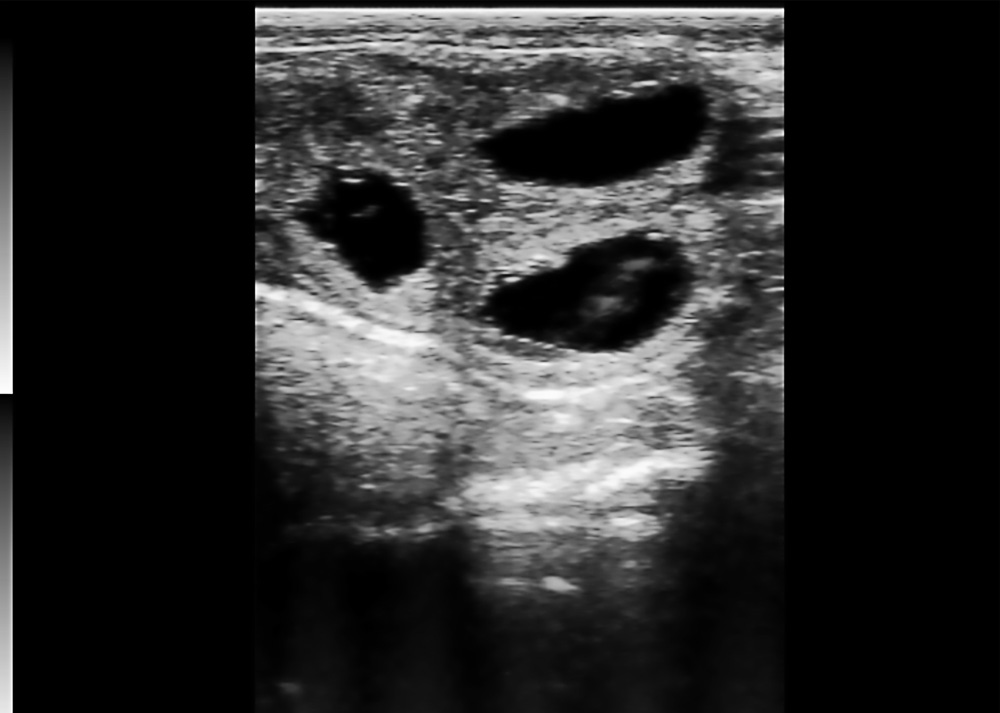

Ovarian Follicle Ultrasound

● Displays multiple follicle cavities of varied shapes.

● Layered echoes for structural recognition.

● Shows cavity distribution and size.

● For reproductive monitoring in livestock.

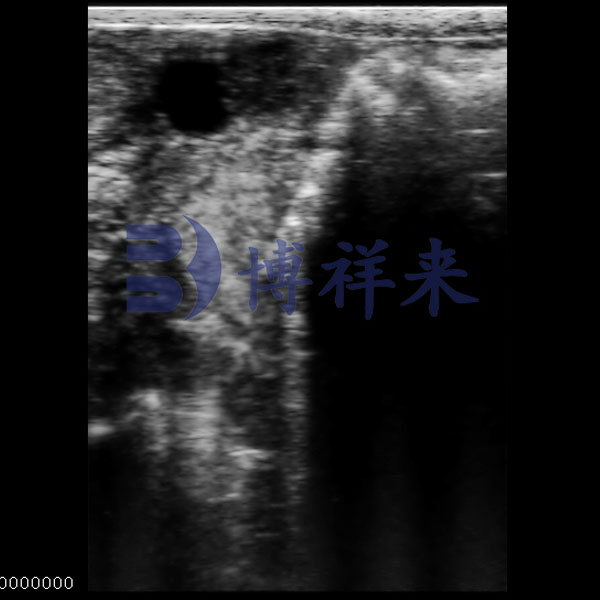

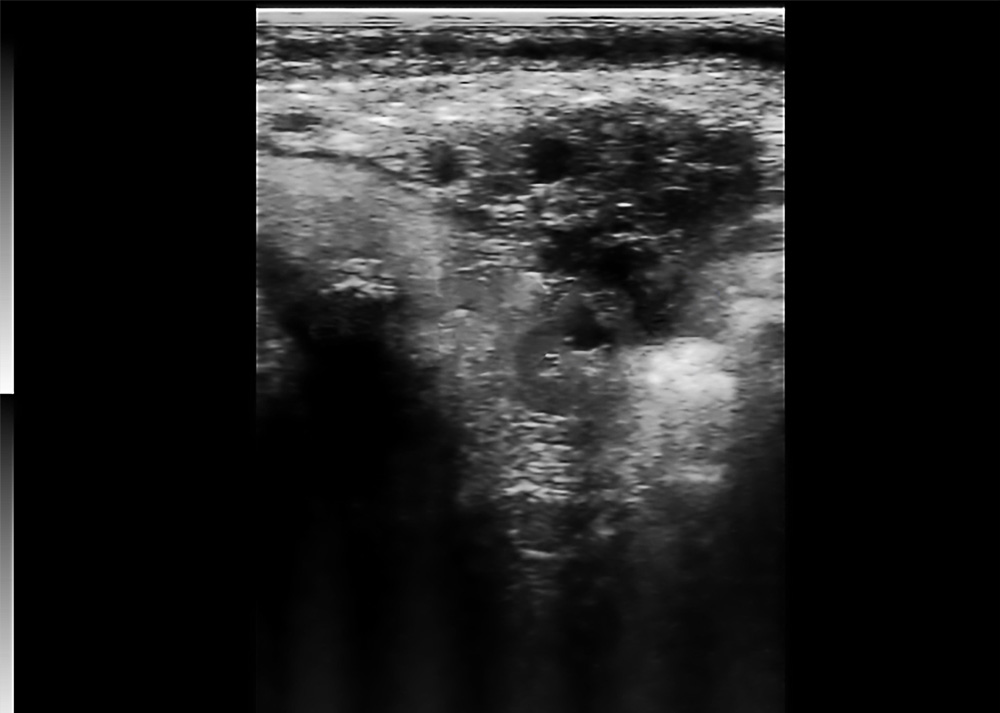

Bovine Pregnancy Ultrasound

● Depicts early gestational structures with clear contours.

● Stable contrast highlights fluid-filled zones.

● Outlines embryo–uterus spatial relation.

● Supports pregnancy stage evaluation.

BXL-V10III Button Guide

The BXL-V10III is a multi-purpose ultrasound device for livestock animals, fully housed in a suitcase that contains the main unit, one probe, and other accessories.

BXL-V10III Button Guide

The BXL-V10III is a multi-purpose ultrasound device for livestock animals, fully housed in a suitcase that contains the main unit, one probe, and other accessories.

Demo

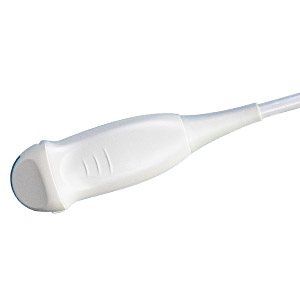

Optional Probes

Rectal Linear Probe
Sheep Rectal Linear Probe
Rectal Convex Probe
Micro-convex Probe
Sheep Abdominal Probe

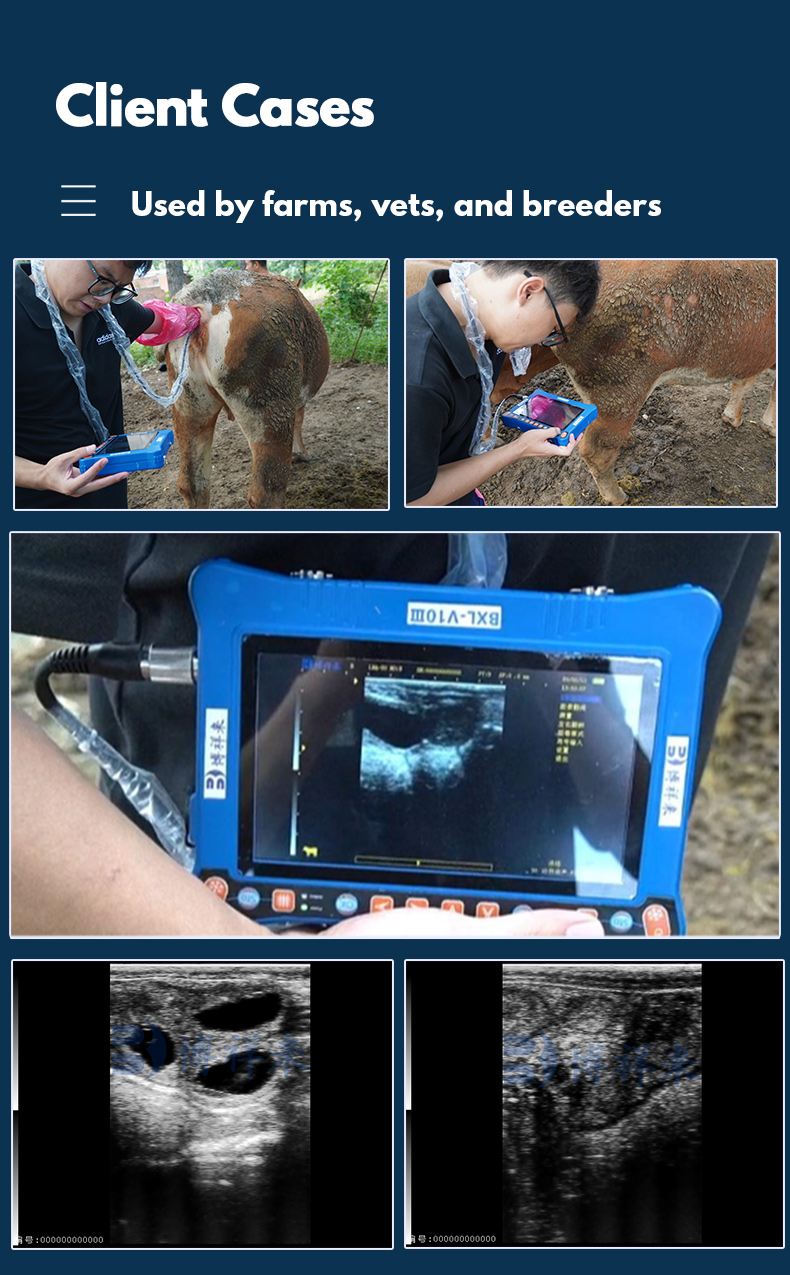

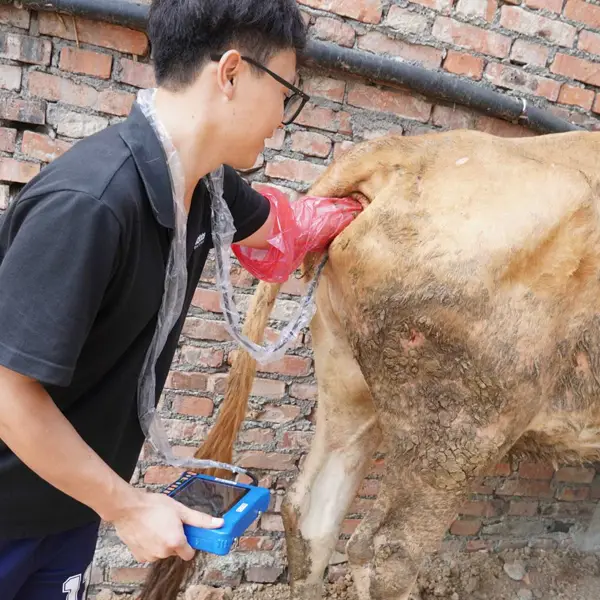

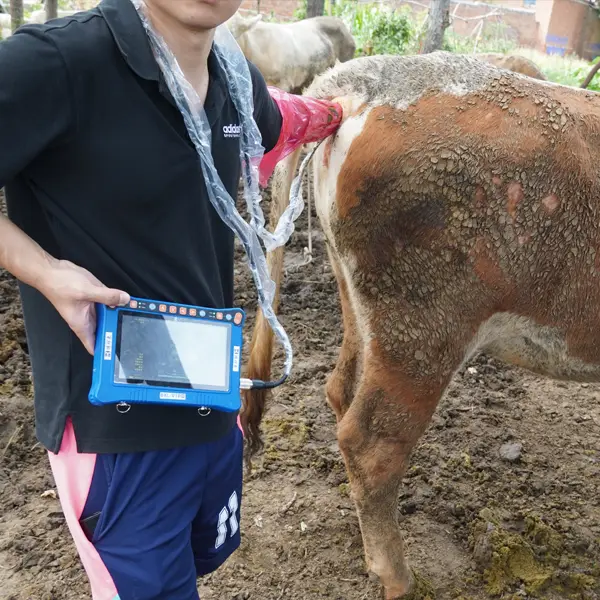

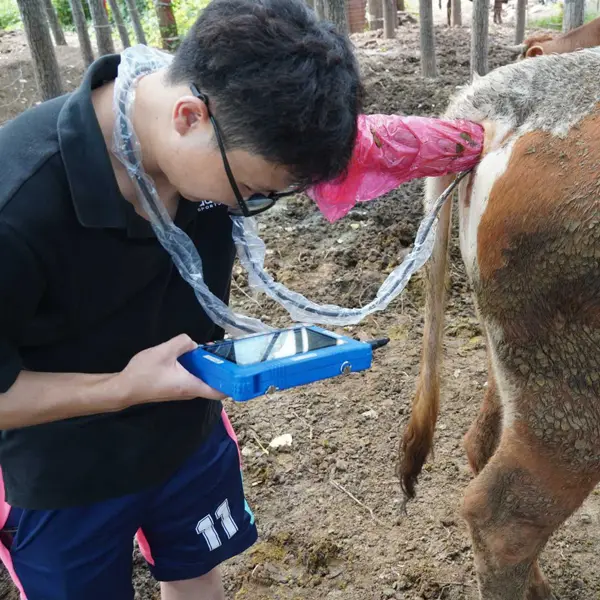

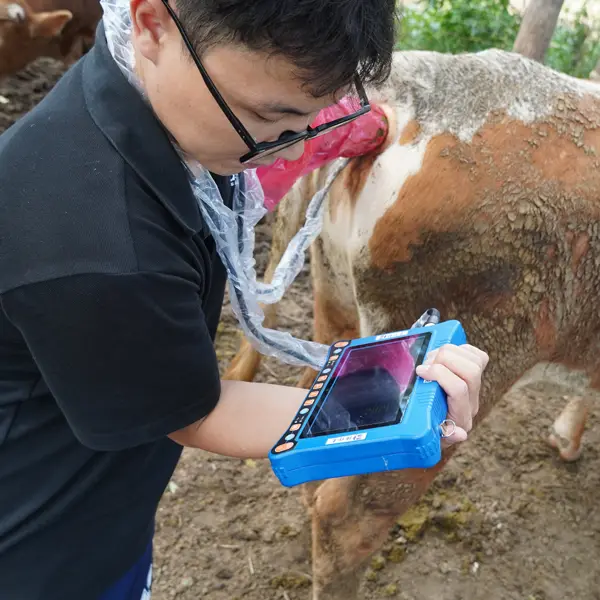

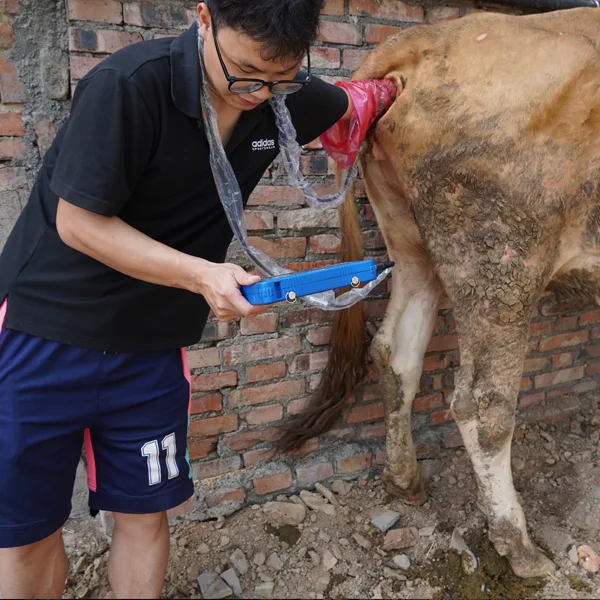

Case Site
