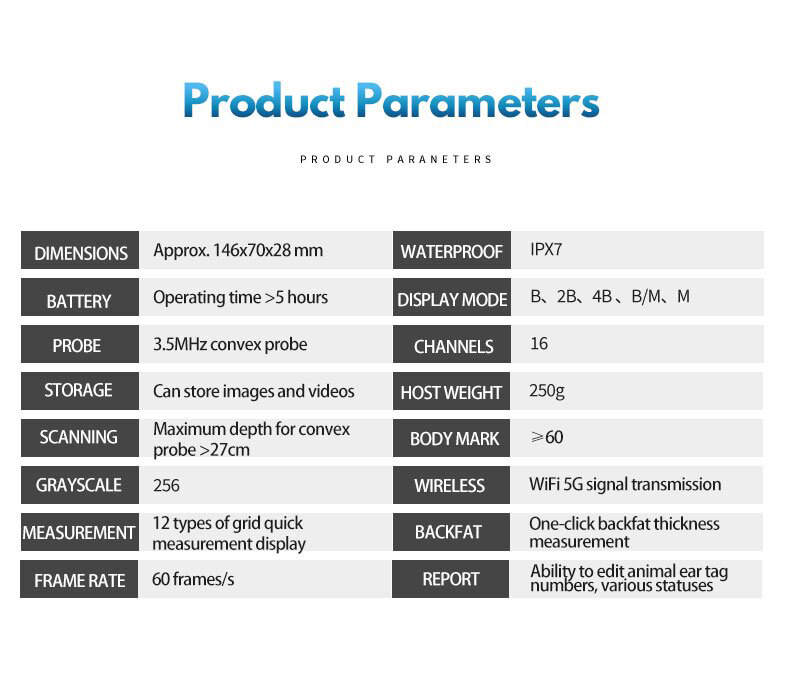

- Technical parameters

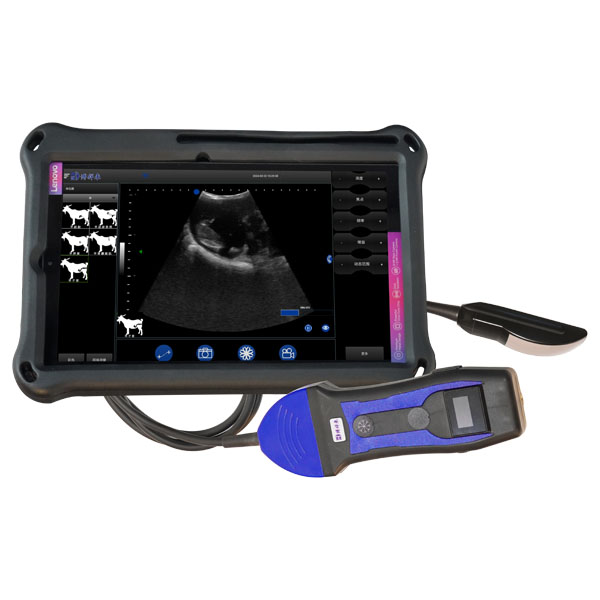

1.1. The whole machine is waterproof and dustproof, with a waterproof level of IPX7; strong and durable
1.2. Fully digital wireless animal-specific Doppler color ultrasound system, suitable for scanning cattle, sheep, horses, pigs, donkeys, camels, small animals, wild animals and other animals
1.3. Number of channels: 24

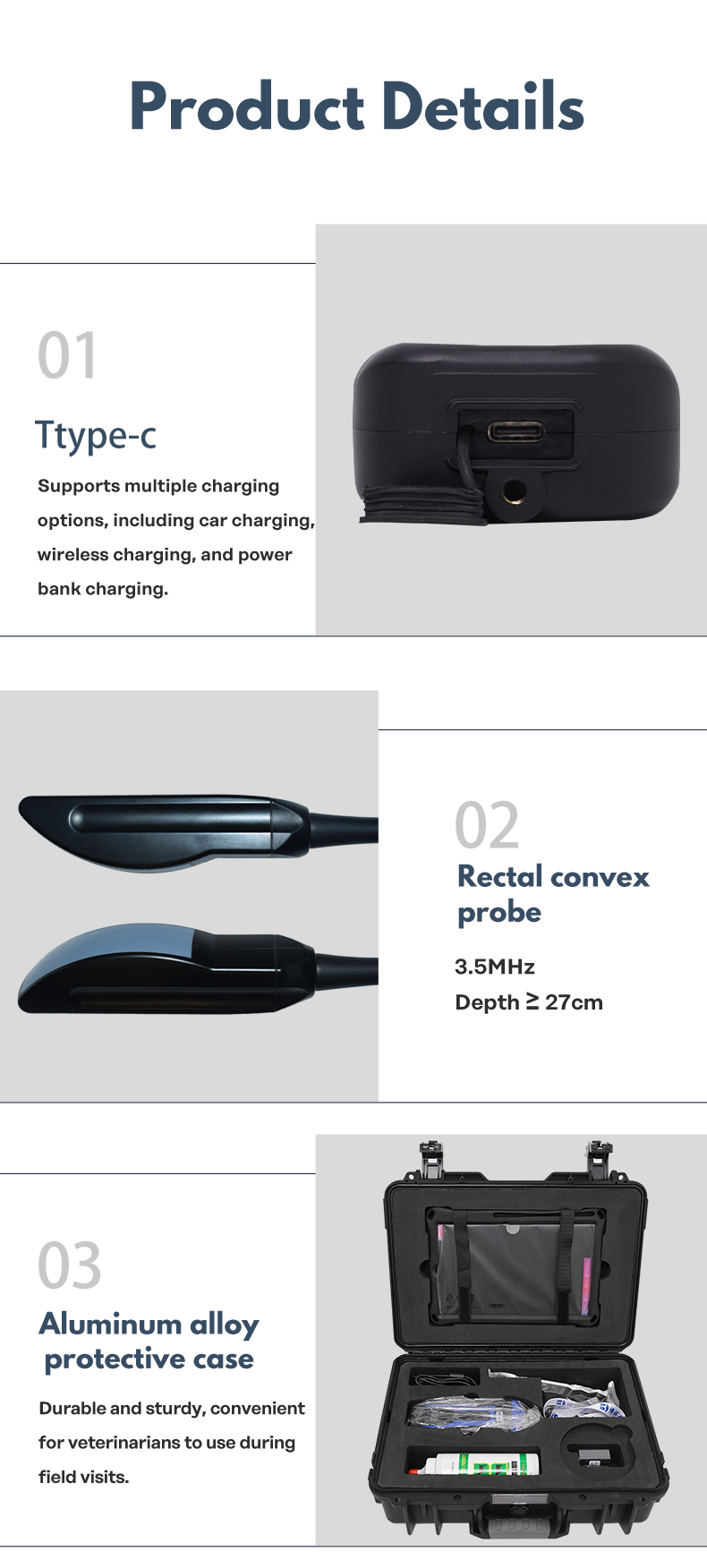

1.4. Built-in lithium battery, working life ≥5 hours. Type-c data cable charging, wireless charging, car-mounted, fast charging, power bank power supply
1.5. Ultrasound system scanning mode: B, 2B, 4B, B/M, M and other display modes, Doppler color ultrasound C mode
1.6. Doppler color ultrasound C mode imaging: all equipped probes support color Doppler imaging, probe color Doppler frequency ≥ 3 groups
1.7. Color Doppler sampling frame angle ≥ ±15 degrees adjustable, color gain ≥255dB
1.8. The host system comes with a Wi-Fi module to realize wireless transmission mode, 5G transmission

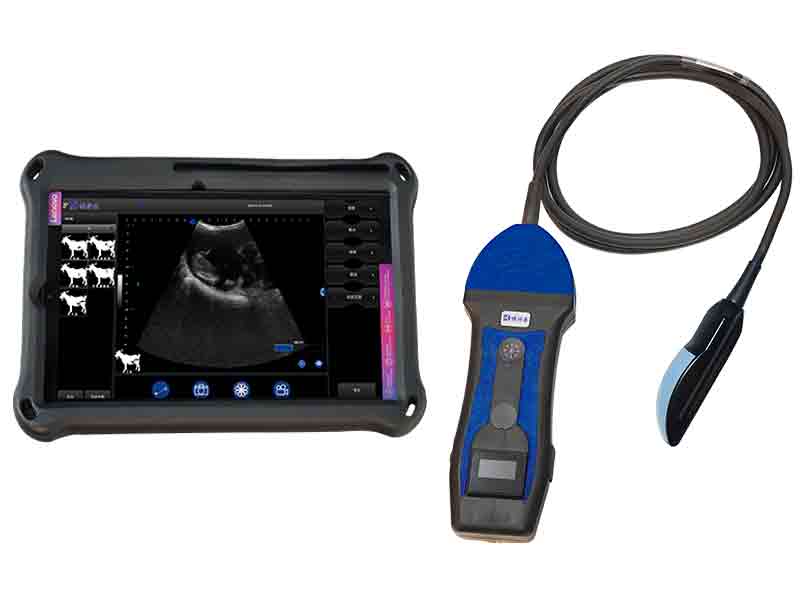

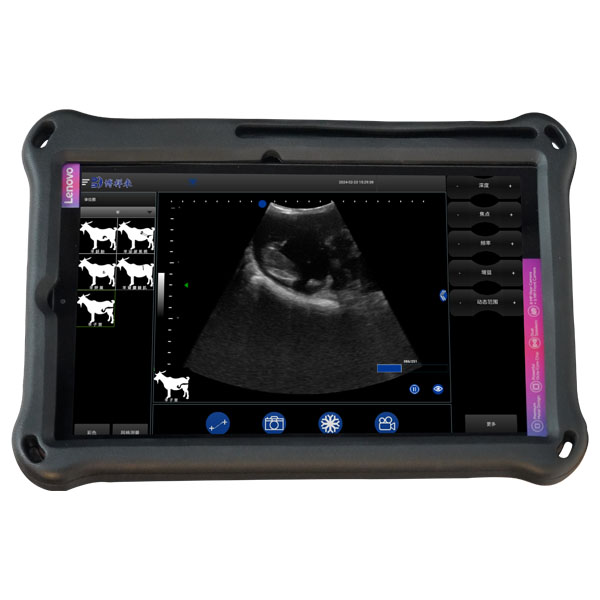

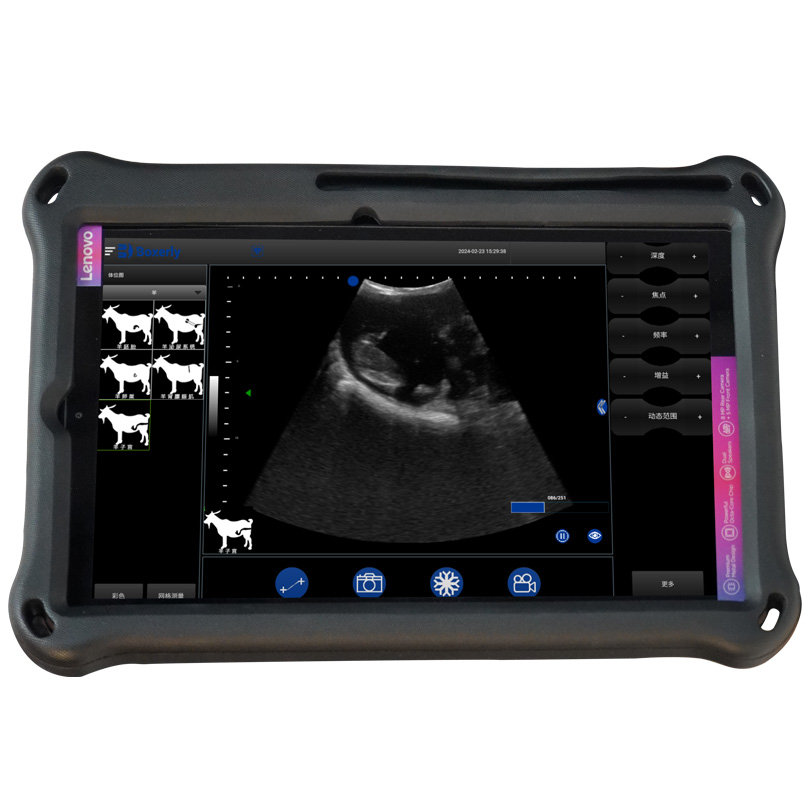

1.9. Wireless connection display supports: iPad tablets, smart phones, laptops, desktop computers. The display size and resolution can be selected by yourself
1.10. The display is installed with free APP for wireless display. The APP is compatible with the following operating systems: Android (Android), Windows (Microsoft)
1.11. System grayscale: 256 levels, system dynamic range ≥180dB, A/D conversion ≥12bit
1.12. Clip gain: TGC is adjustable in eight segments, TGC can be adjusted with one button
1.13. Parameter sliding adjustment
1.14. It has Chinese and English operation interfaces
1.15. Host startup time: 1 second. The host has a freeze key full digital beamformer

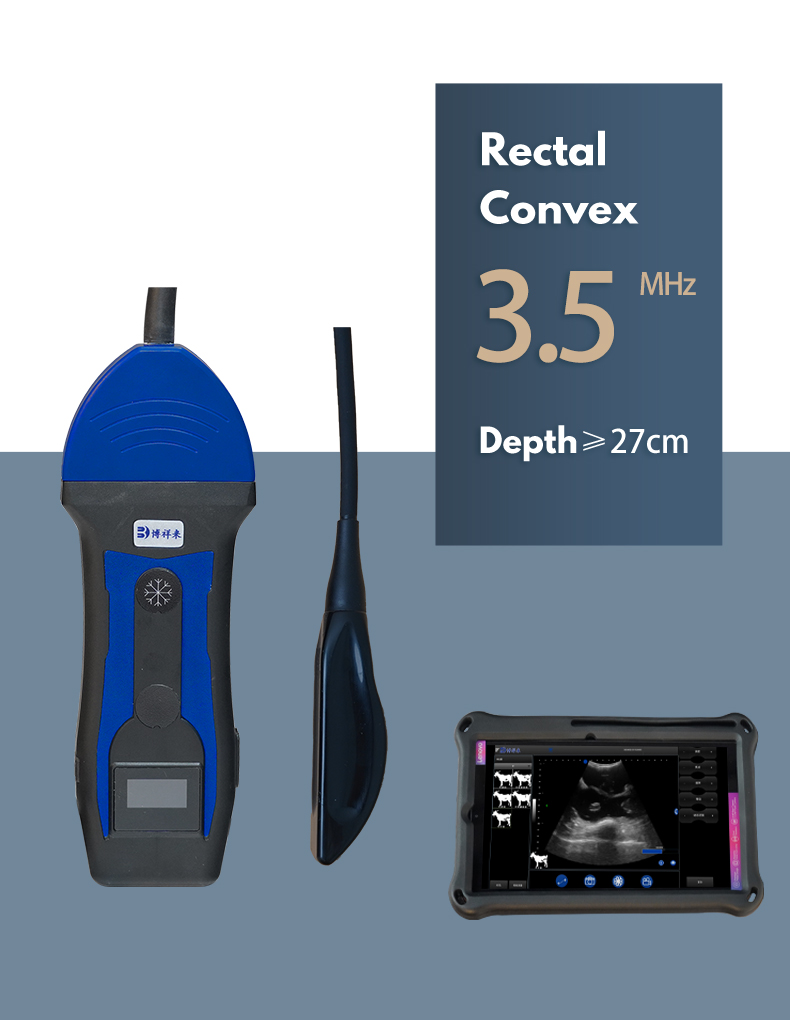

1.16. Scanning depth: the maximum depth of the rectal convex array probe is ≥27cm

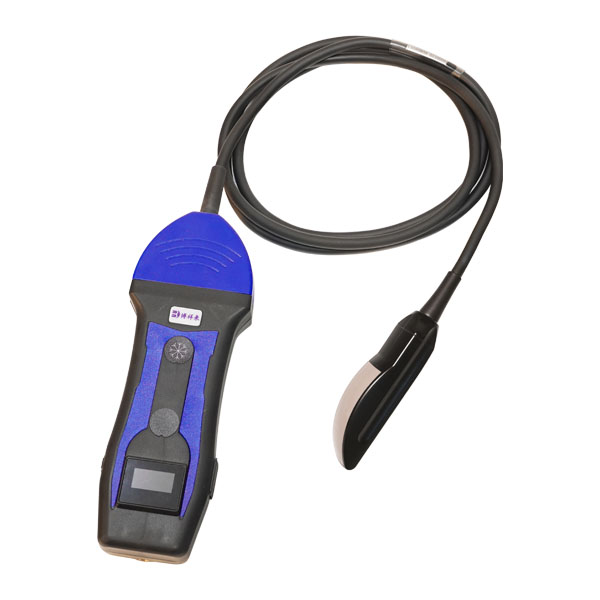

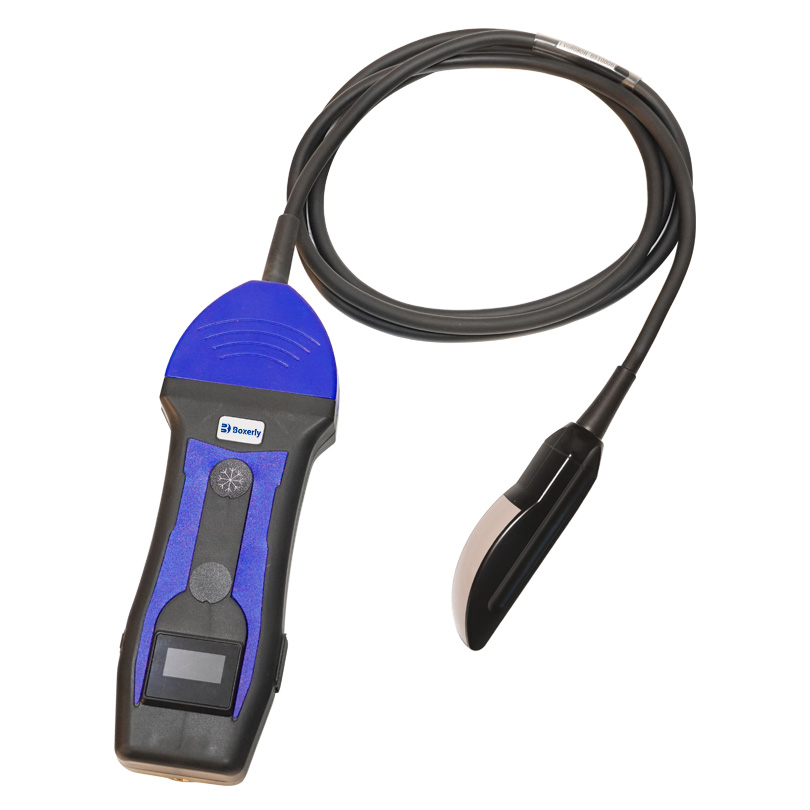

1.17. Host probe: 3.5MHz rectal convex array
1.18. Harmonic imaging: two gears Frequency: 2.9-5.0MHz Gain adjustment: 0-255 Dynamic range adjustment: 0-15 Transmitting power: 0-3
1.19. Focus: 3-15 13 gear adjustment
1.20. One-key image optimization function
1.21. Measurement and analysis: supports basic measurements such as distance, circumference, area, and circle area, and has a variety of animal professional obstetric analysis software packages, ≥30 types of animal obstetric measurements. Various measurement functions such as heart measurement
1.22. How to use the host: It can be clipped to the belt and can be held in hand. How to use the display: wrist, sling
1.23, grid setting quick measurement function, 12 grid quick measurement display
1.24, one-button back fat thickness measurement function
1.25, screw fast fix extension rod, suitable for animal inspection
1.26, multiple system preset functions, B mode imaging can be partially enlarged/reduced
1.27, inspection type: the software has built-in inspection preset modes for embryos, ovaries, uterus, urinary system, back fat, and other parts of animals such as cattle, sheep, horses, pigs, and donkeys. You can choose each mode for corresponding inspection and professional measurement. The corresponding host parameters are fixed in each mode. Inspection modes ≥30
1.28. Body markers: cattle (embryo, ovary, uterus, urinary system, backfat, buttocks and other body markers), pigs (embryo, ovary, uterus, urinary system, backfat, buttocks and other body markers), goats (embryo, ovary, uterus, urinary system, backfat, buttocks and other body markers), buffalo, sheep, alpaca, cats, dogs and other animals, no less than 60 body markers
1.29. Storage: static image storage and preview, body markers can be added to the image when saving the image, dynamic movie image storage and playback ≥255 frames, expandable
1.30. Animal report: animal ear tag number, various states, etc. can be edited. When saving the animal image, there is a corresponding function of taking animal photos
1.31. Host rated input: DC9.0V 2.22A; Adapter output: DC9.0V 2.22A
1.32. Power supply: 100-240V～0.8A Frequency: 50-60Hz
1.33. Patented product, patent number:
1.34. Weight: 250g (with probe)
1.35. Image frame rate: 60 frames/second
1.36. Host size: 198×70×28 mm (length×width×height)
1.37. Software version: Animal-specific version
2 Main functions
2.1. Color Doppler ultrasound technology to observe the blood flow function of each organ
2.2. Wireless WiFi connection to iPad tablets, smart phones, laptops, and desktop computers
2.3. Support full-screen function
2.4. Support report preview function
2.5. One-click optimization function
2.6. THI tissue harmonic imaging technology function
2.7. Digital focusing function
2.8. Speckle noise suppression technology function
2.9. Support spatial composite imaging function
2.10. Support two-dimensional image angle deflection function
2.11. Support parameter sliding adjustment function
2.12. 5G transmission, fast image transmission speed
2.13. Clear judgment of animal pregnancy, uterine disease, ovarian disease, and ovarian detection
2.14. Light weight, easy to carry, and multiple carrying methods
2.15. The operating system supports remote online free upgrade function
2.16. Multiple body marker corresponding parameter setting function

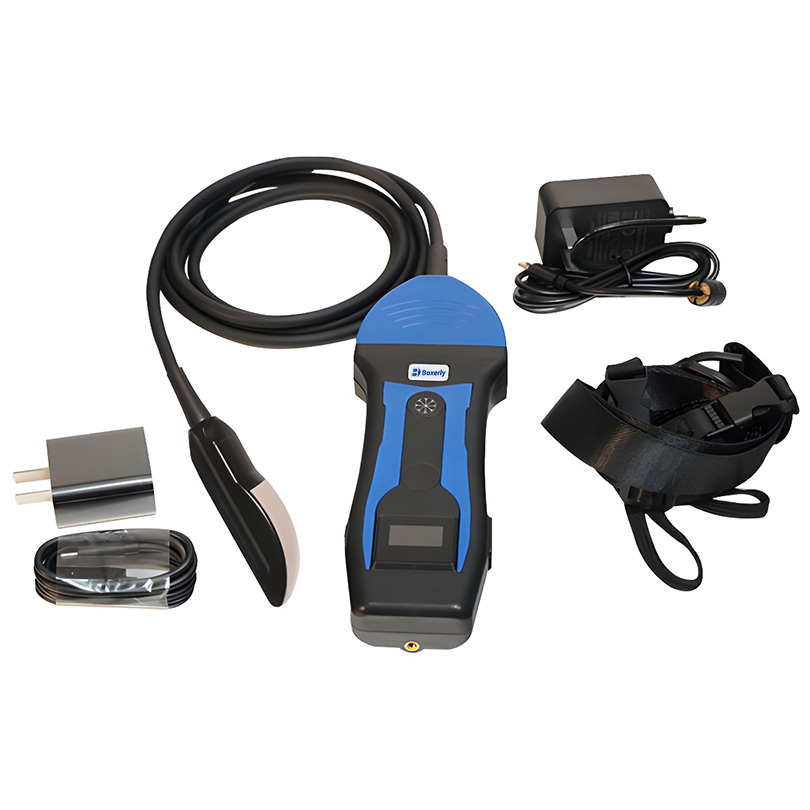

Standard configuration:
Host 1
Flat panel display 1
Flat panel display protective case 1
Cross strap 1
Adapter 1
Wireless charger 1
Learning USB drive 1
Instruction manual/certificate/warranty card 1 set

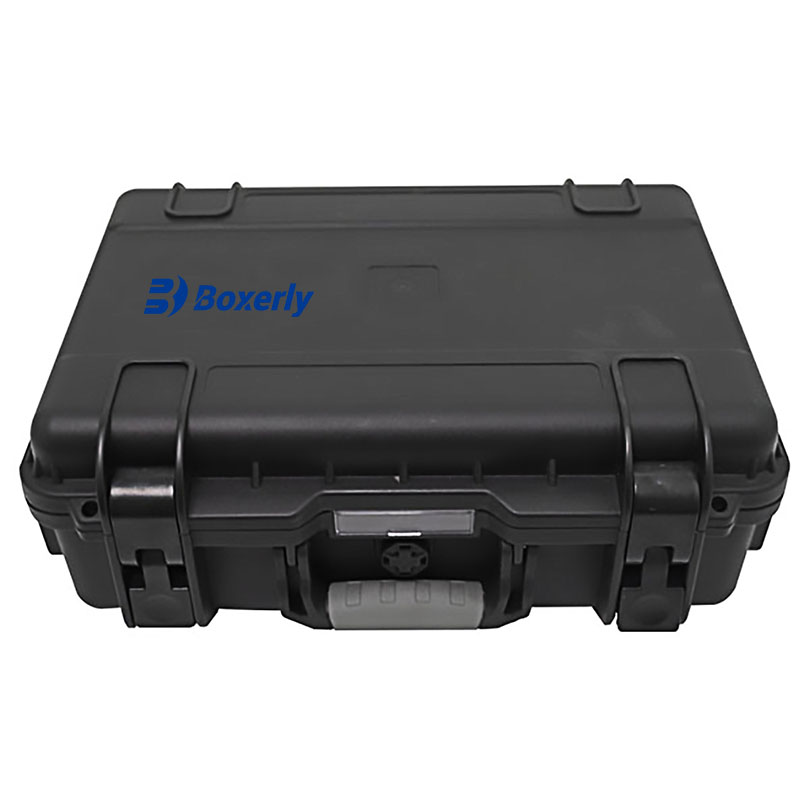

Suitcase 1
Coupon agent 1 bottle
Optional accessories:
Extension rod
