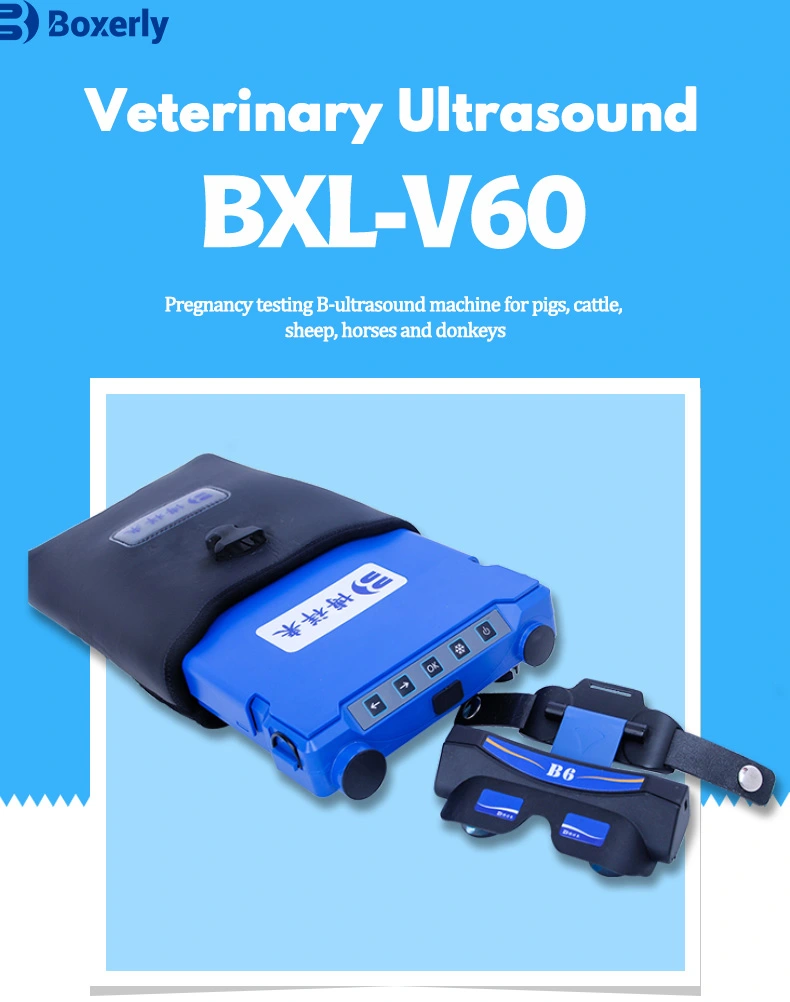

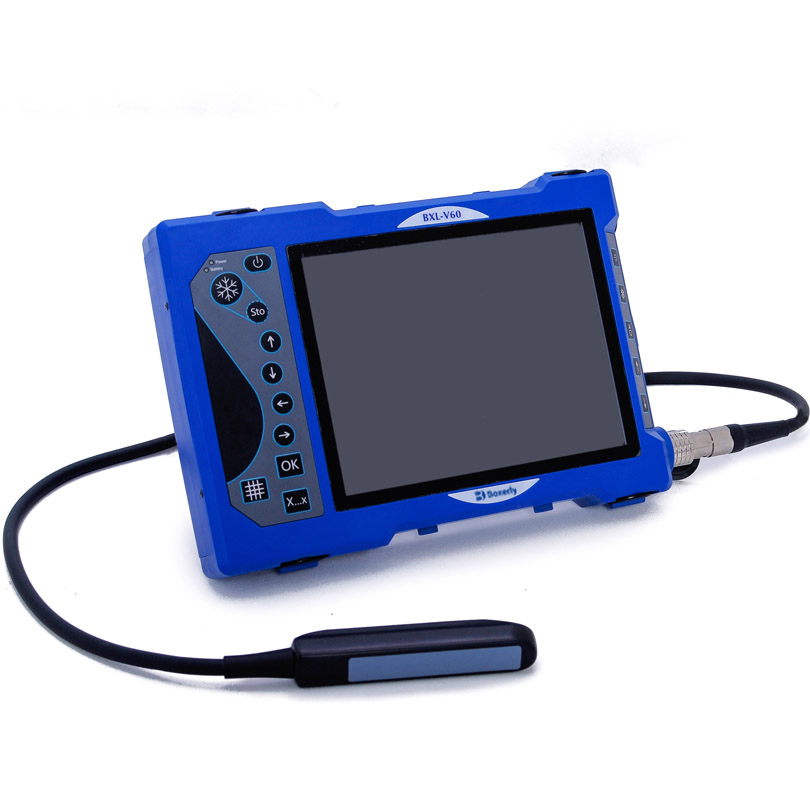

BXL-V60 Portable Ultrasound Machine with Video Glasses – The Latest in Your Hands! Combining unprecedented display performance with outstanding peripheral vision.

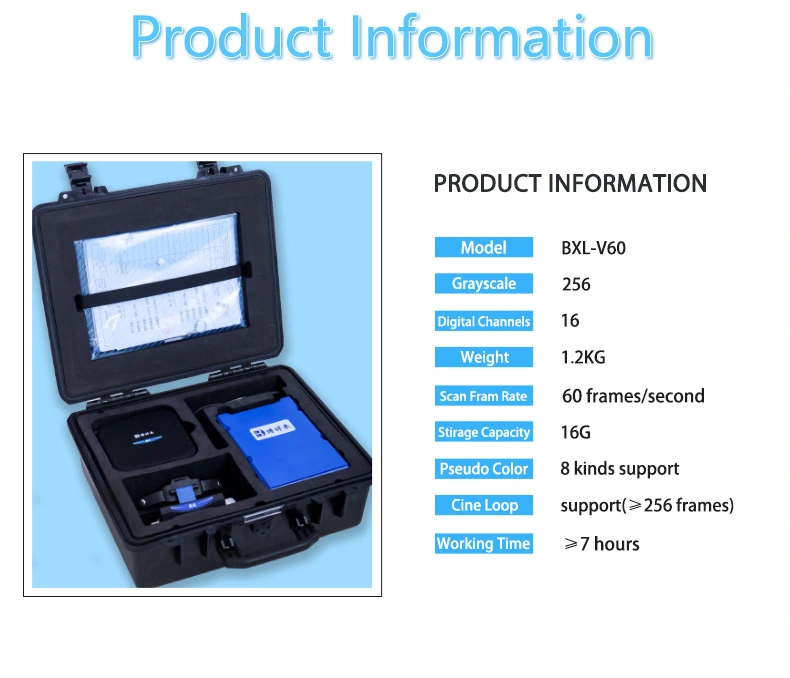

BXL-V60 Technical Parameters

1. Imaging Modes: B, M,2B, B/M,4B

2. Scan Frame Rate: 60 frames /second

3. Digital Channels: 16 Channels

4. Dust And Splash Proof: IP56-Host / IP67-Probe

5. Storage Capacity: 16GB

6. Image Storage: 1000* frames Image

7. Export Function: Support

8. Storage Expand Function: Support U disk / TF card (with Reader)

9. Display (Glasses): 80″ imaging OLED Glasses(1024*768 Pixel)

10. Cine Loop: Support (≥256 Frames)

11. Pseudo Color: 8 Kinds

12. Support Body Remark: 45 Kinds

13. Support Battery Life: 7-7.5 Hours (single battery)

14. Charging Options: DC Power Adapter

15. Dimension (Packaged): 500x240x440mm

16. Weight (Host): 1.20 KGS

17. Weight (Packaged): 8.18 KGS

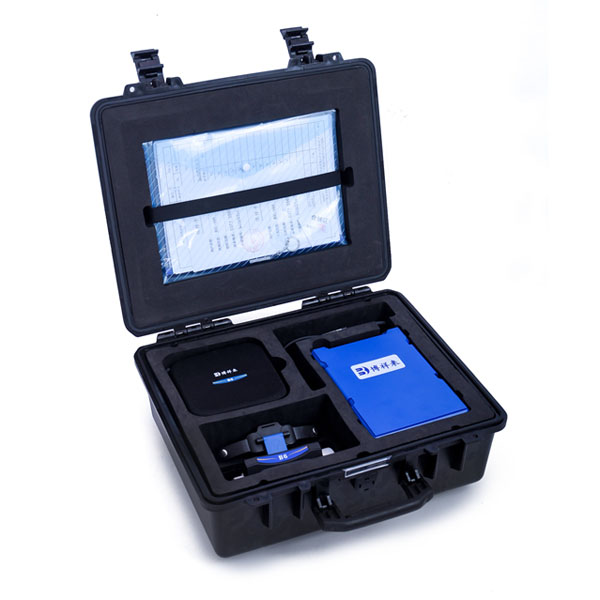

18. Packaging: High Strength Anti-damage Protection Box

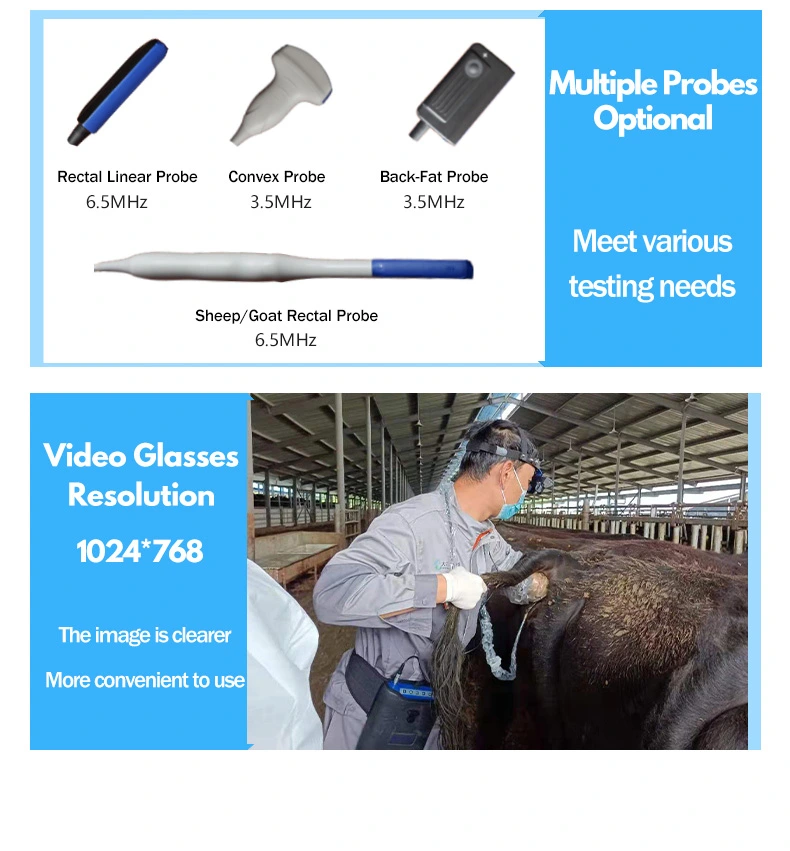

19. Optional Configuration:

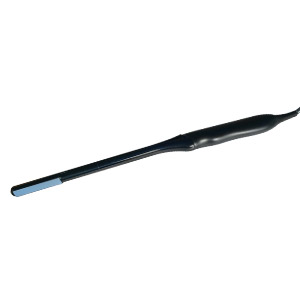

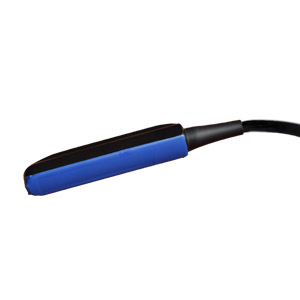

（1）6.5MHz Rectal Linear Probe

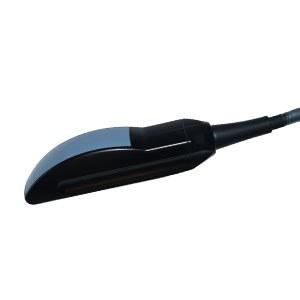

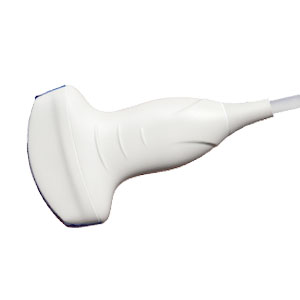

（2）3.5MHz Convex Probe

（3）3.5MHz Rectal Convex Probe

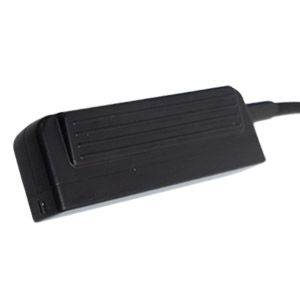

（4）6.5MHz Sheep/Goat Rectal Probe 3.5MHz Back-Fat Probe

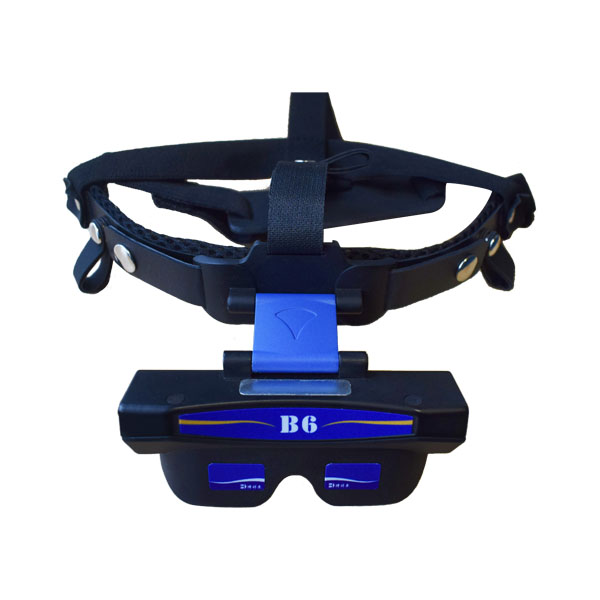

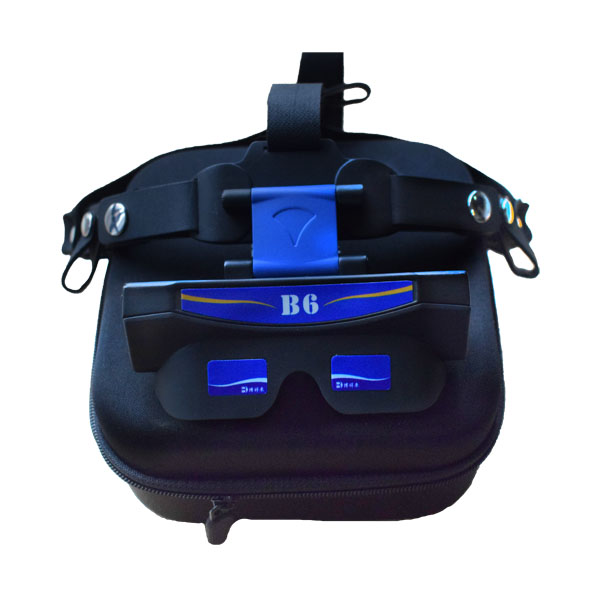

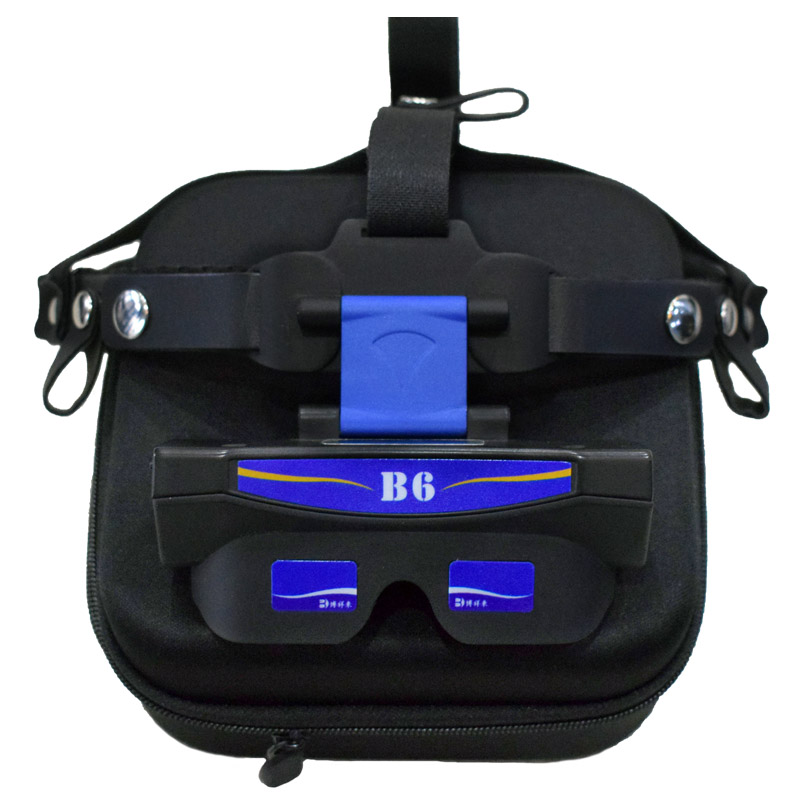

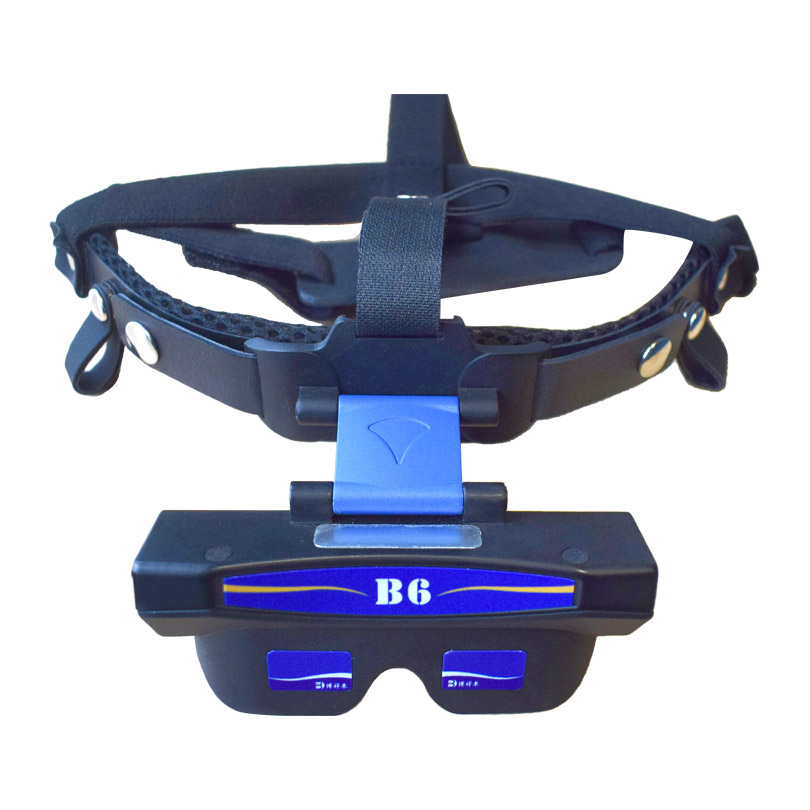

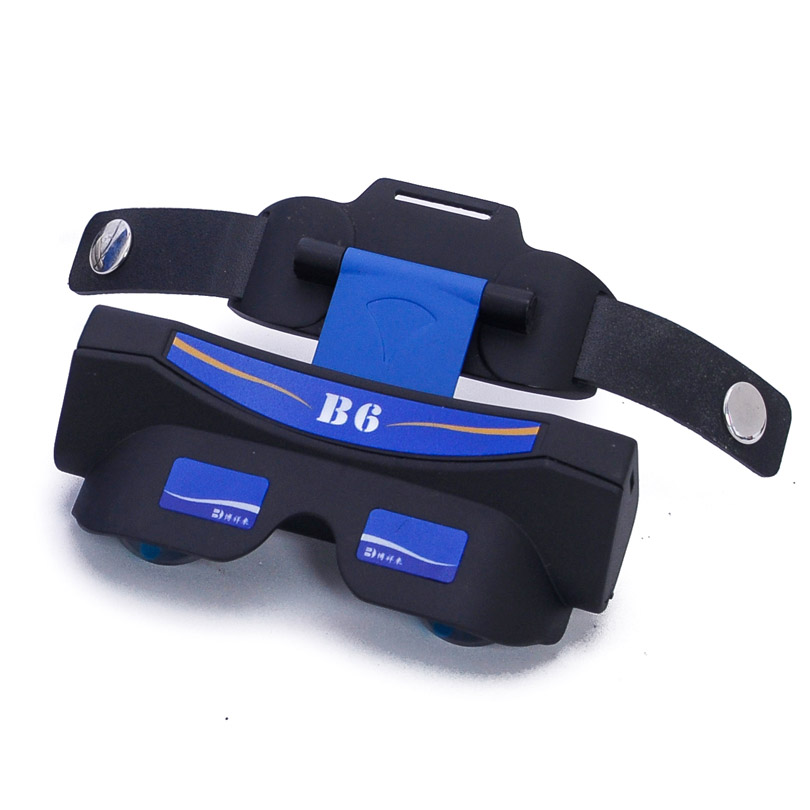

Video glasses technical parameters

1. Configure B6 type 2D\3D switchable video glasses

2. Semi-immersive design

3. The original picture is not distorted, and there is no screen window or graininess.

4. HD OLED screen

5. Screen size: 80 inches

6. Binocular 36 degree transmitted light group.

7. Resolution: 1024*768

8. Transmission interface: AV aviation head HD waterproof interface

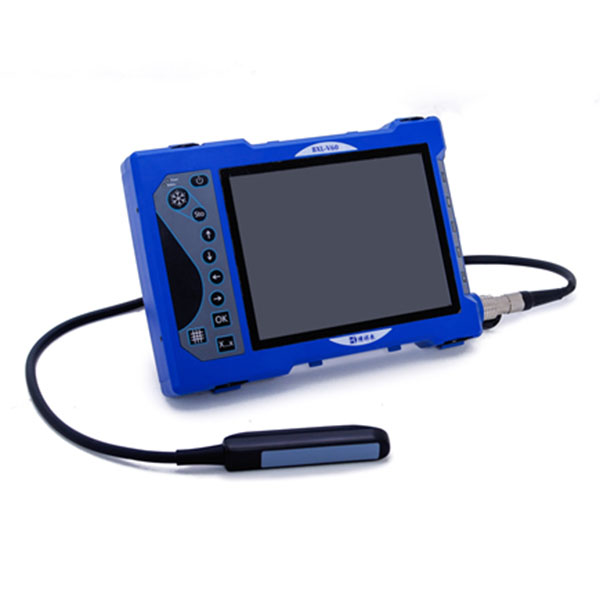

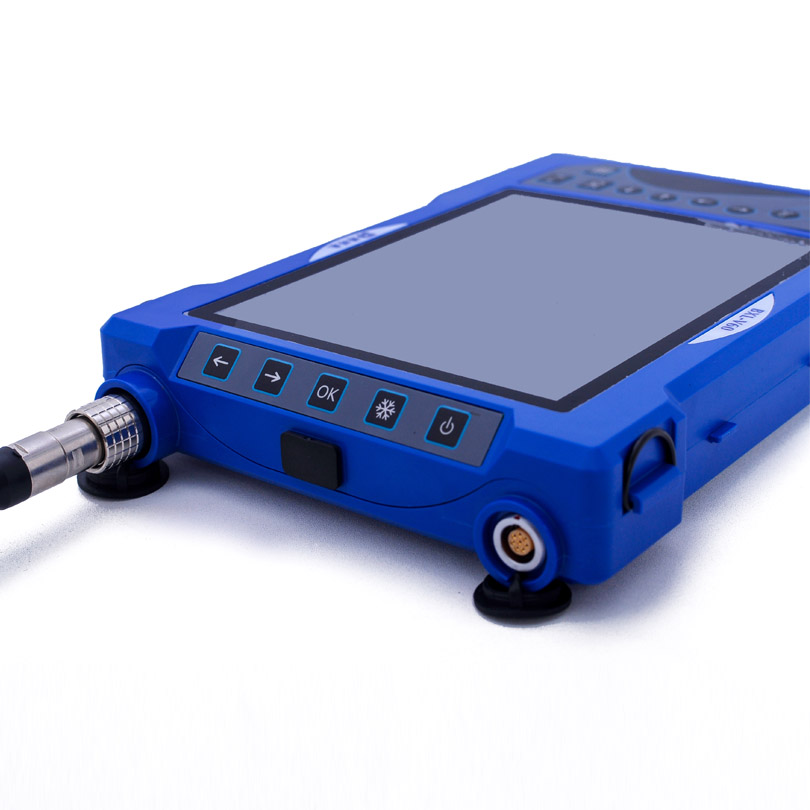

Host technical parameters

1. The whole machine is waterproof and dustproof, and the waterproof level is IP56; strong and durable

2. Probe: probe upgrade, no appendages; It can be equipped with large animal rectal probe, abdominal electronic convex array probe, special rectal probe for sheep/alpaca, backfat eye muscle area probe

3. Left and right buttons (convenient for left and right hand operation)

4. Work for more than 7 hours on one charge

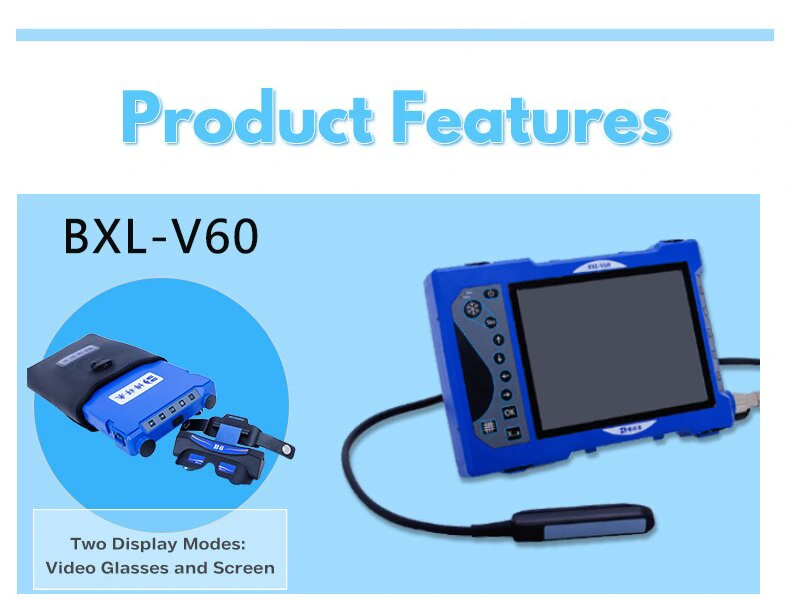

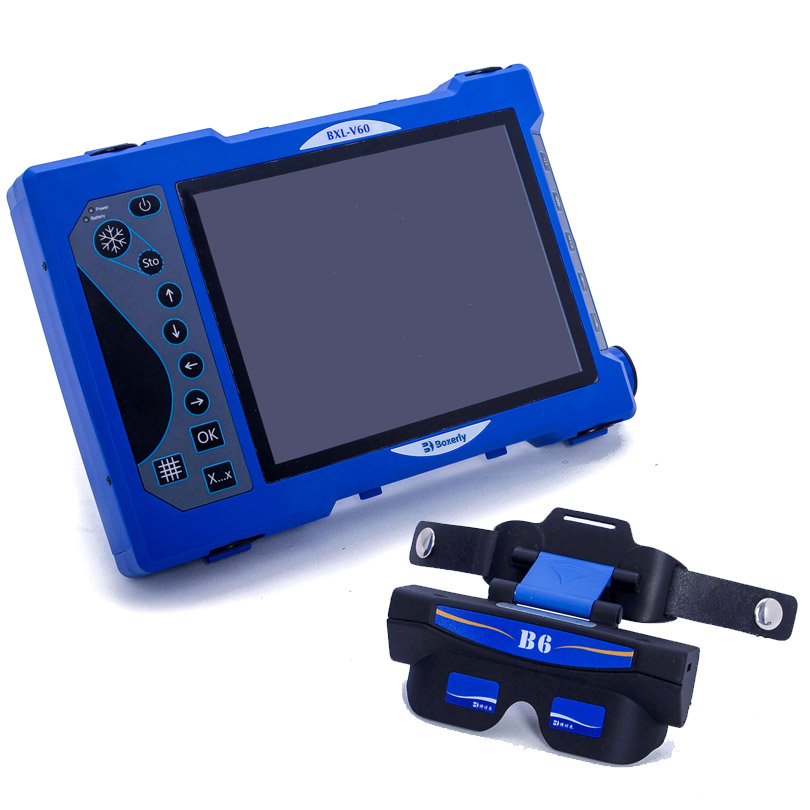

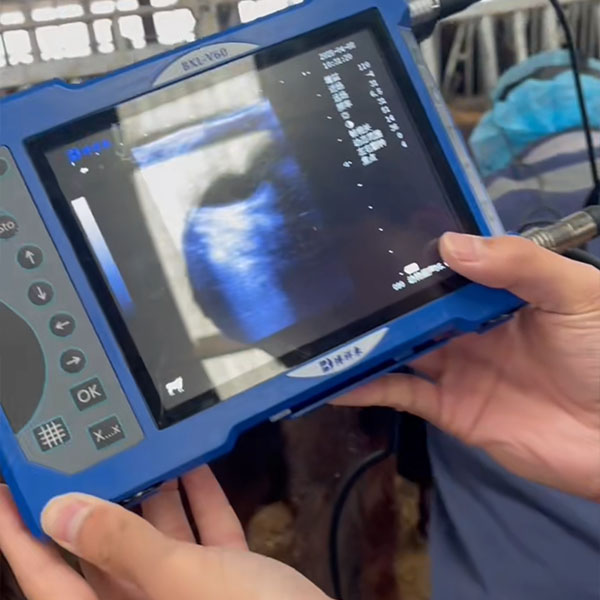

5. Display: Configure B6 type 2D\3D switchable video glasses; Host display: 8.0-inch high-definition LCD display;

6. Can be equipped with professional backfat probe, measuring backfat eye muscle area, automatic backfat thickness measurement, lean meat rate measurement function;

7. Professional custom sun visor, adjustable

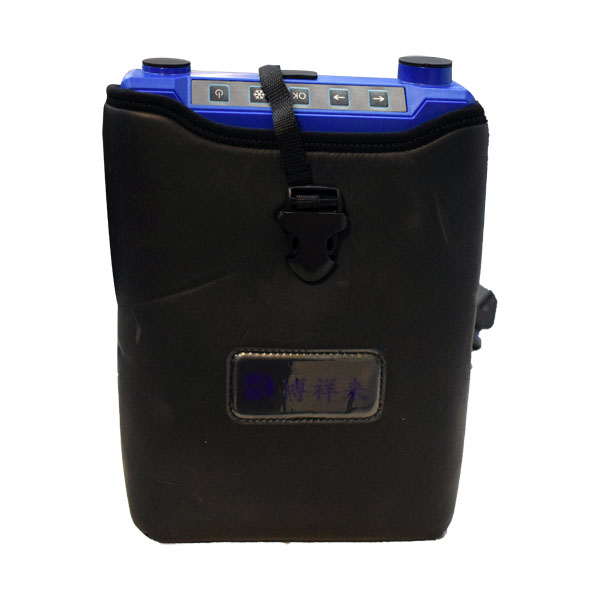

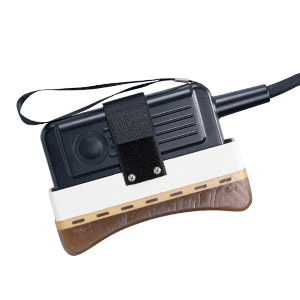

8. One-key screen off protection function, equipped with a protection board and a bag, it is more convenient to operate with video glasses

9. Position markings: beef cattle, dairy cows, buffaloes, goats, sheep, alpaca, pigs, cats, dogs, etc., no less than 45 kinds of animal position markings are optional

10. Grayscale：256；

11. With movie playback, 256 frames can be visited frame by frame

12. 16 channels

13. Storage: One key storage; and support U disk storage preview, etc.

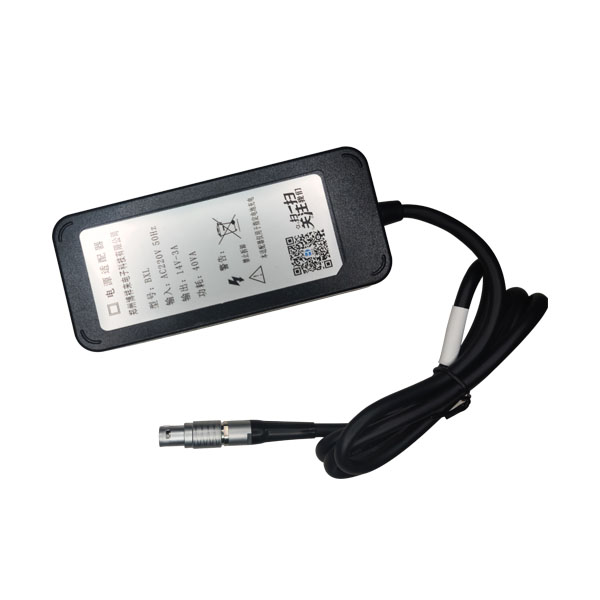

14. Host rated input: DC14V 3.0A;

15. Adapter output: DC14.0V 3.0A;

16. Gain range: 10-110; near field gain -31-0; far field gain 0-31

17. Dynamic adjustment range: 12-147

18. Depth: Maximum depth ≥270CM

19. Frame related: 5-20

20. Brightness: 5-31

21. Focus: 1-16 adjustable

22. Contrast ratio: 20-120

23. Network power supply: 100-240V～1.2-0.6A Frequency: 50-60Hz;

24. Patented products, more than three patents

25. Weight: the weight of the whole machine is 1.2KG

26. Image frame rate: 60

27. Image U disk/TF card storage and browsing function;

28. Pseudo-color: 8 kinds of pseudo-color processing

29. Multiple system preset functions

30. Host size: about 206 × 120 × 35 (mm, length × width × height);

31. 10 kinds of grid settings quick measurement function, multiple quick measurement methods; distance, circumference, area, volume, heart rate, cycle measurement function; conventional heart measurement function; backfat/concretion rate measurement function, etc.

31. Host memory≥16G

Function

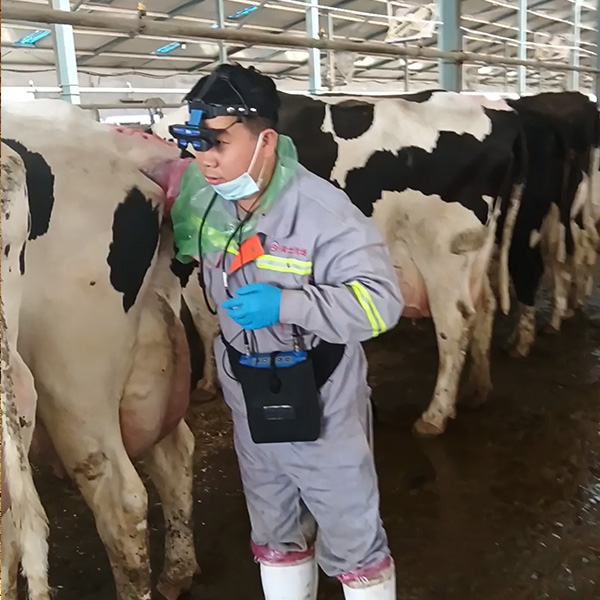

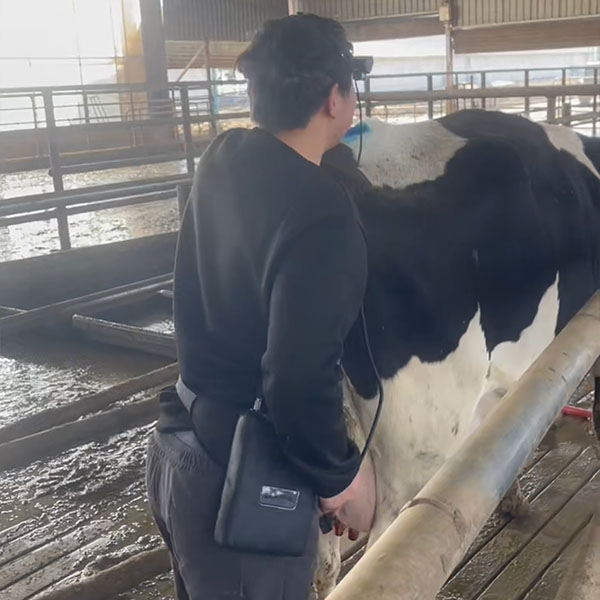

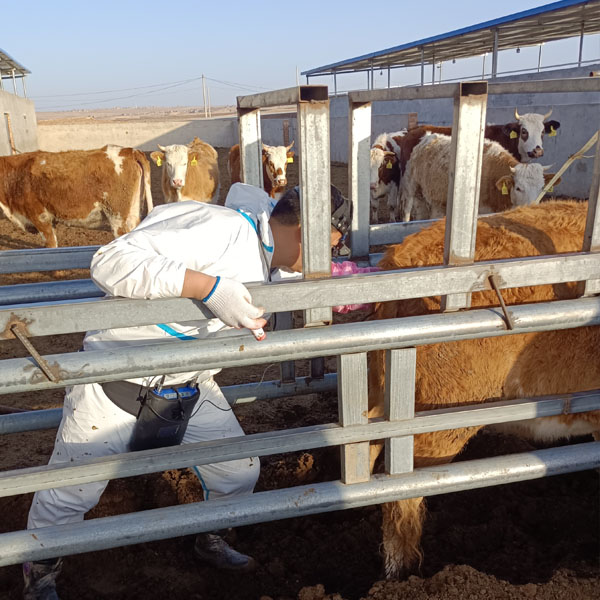

1. Equipped with special video glasses, the image is clear and easy to operate;

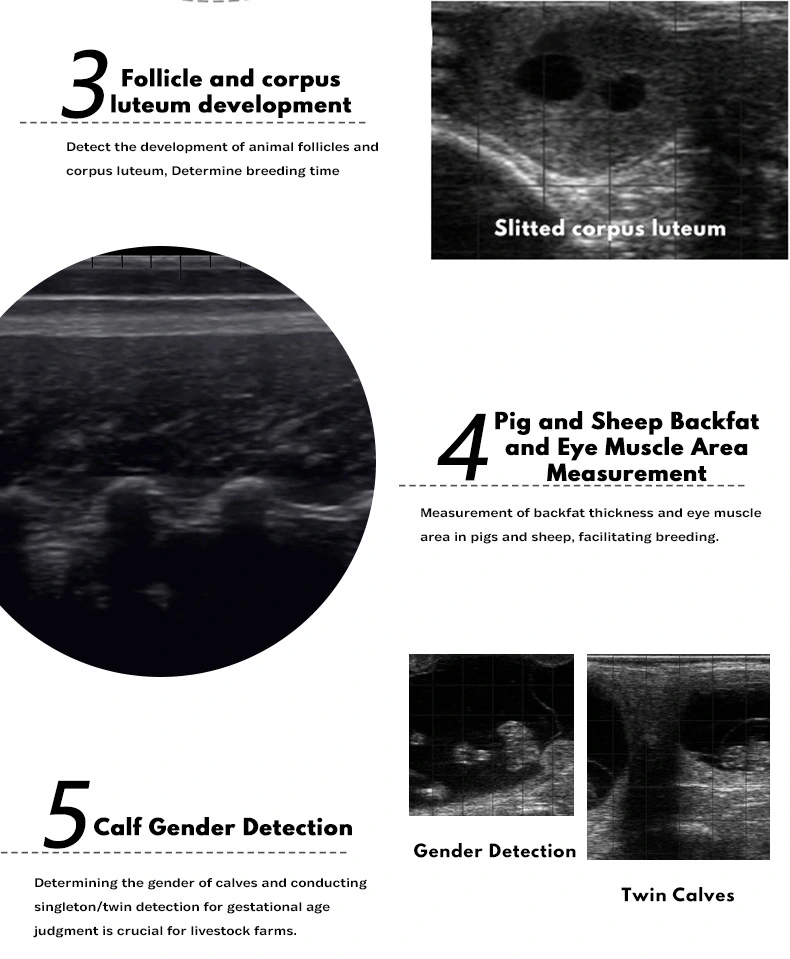

2. Various animals detect pregnancy, litter size, stillbirth, etc.;

3. Pig, cow, goat, sheep, horse, camel, dog, cat, camel distance, circumference, area, volume, heart rate, cycle measurement function; routine heart measurement function; backfat/concretion rate measurement function, etc.

4. Detection of back fat, eye muscle area and lean meat rate;

5. Detection of uterine diseases, ovaries, corpus luteum, follicular development, etc.;

6. One-key automatic detection of back fat function;

Features

• Comfortable and easy vet ultrasound machine

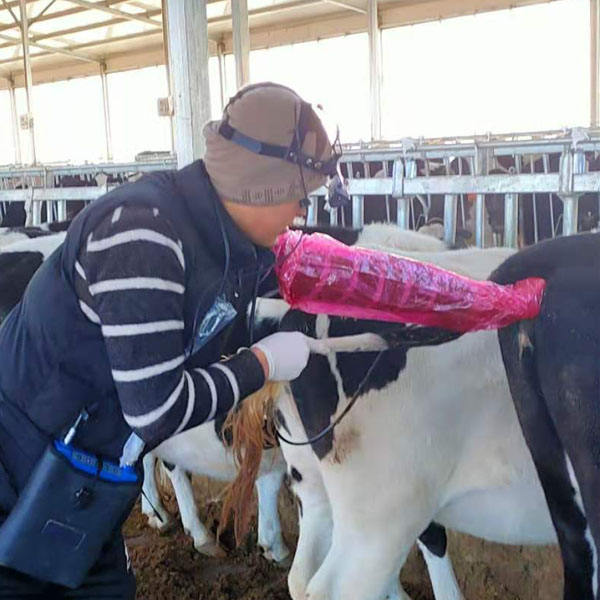

• Accurate and fast cow pregnancy test

• Designed to be durable for everyday wear and tear on the farm

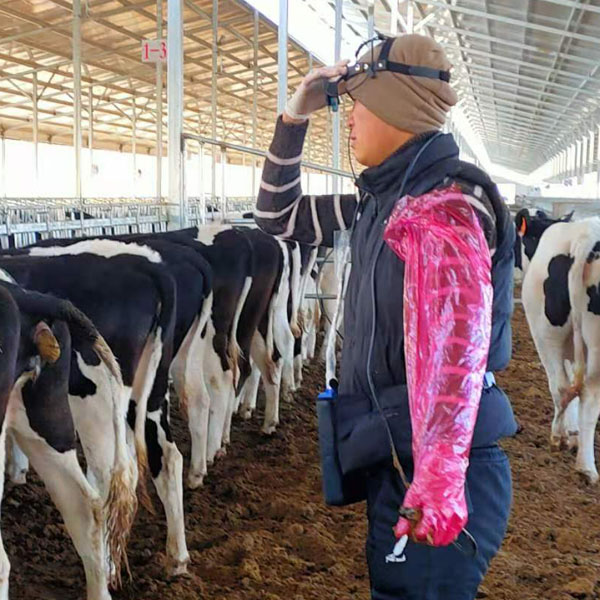

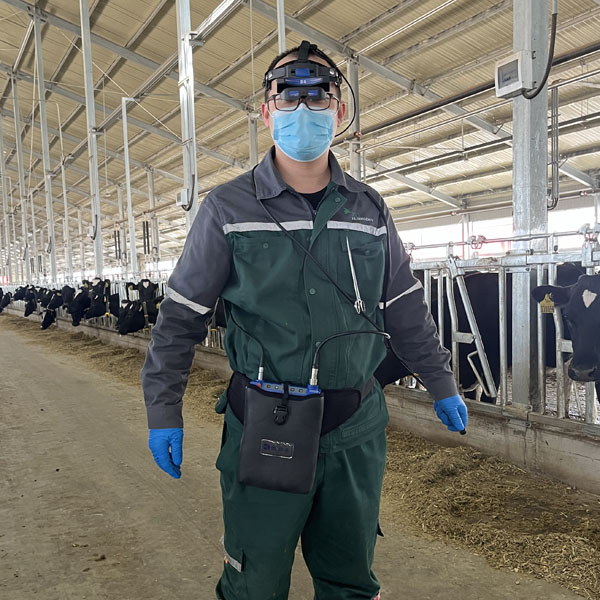

• This time our newest model of ultrasound video goggles is more comfortable, with excellent adjustment on the user’s head. If you examine a lot of animals in a row or work in very light rooms, these goggles with clear, legible image will make your work more comfortable.

Standard configuration:

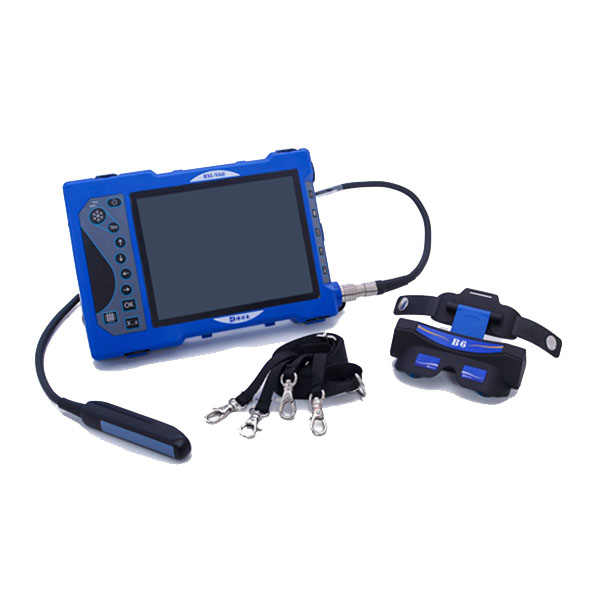

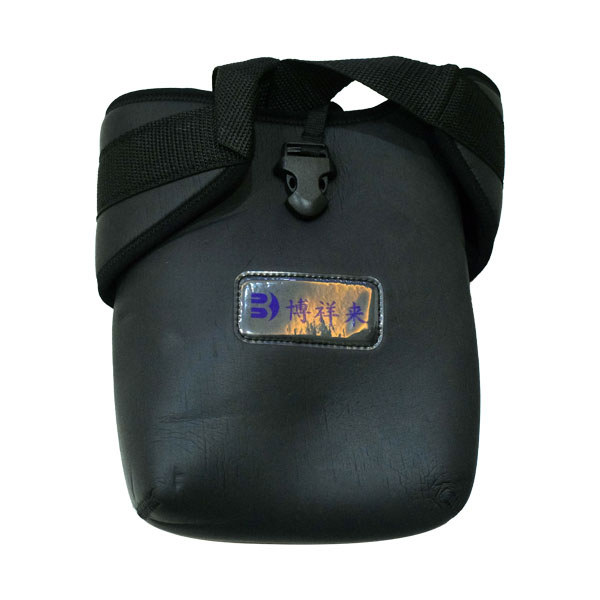

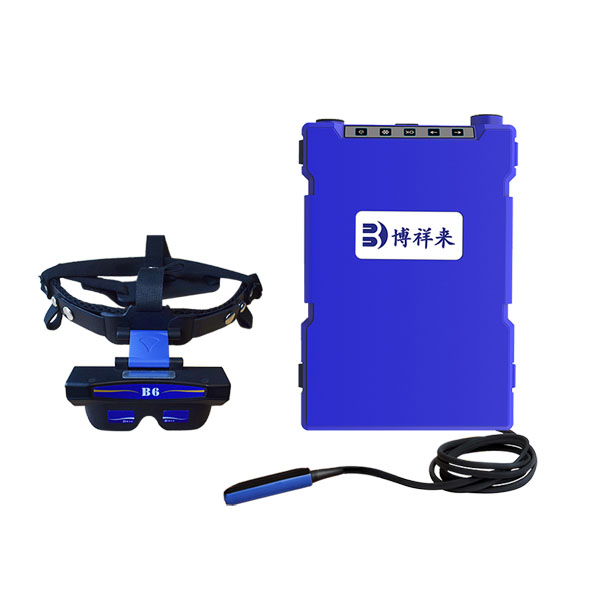

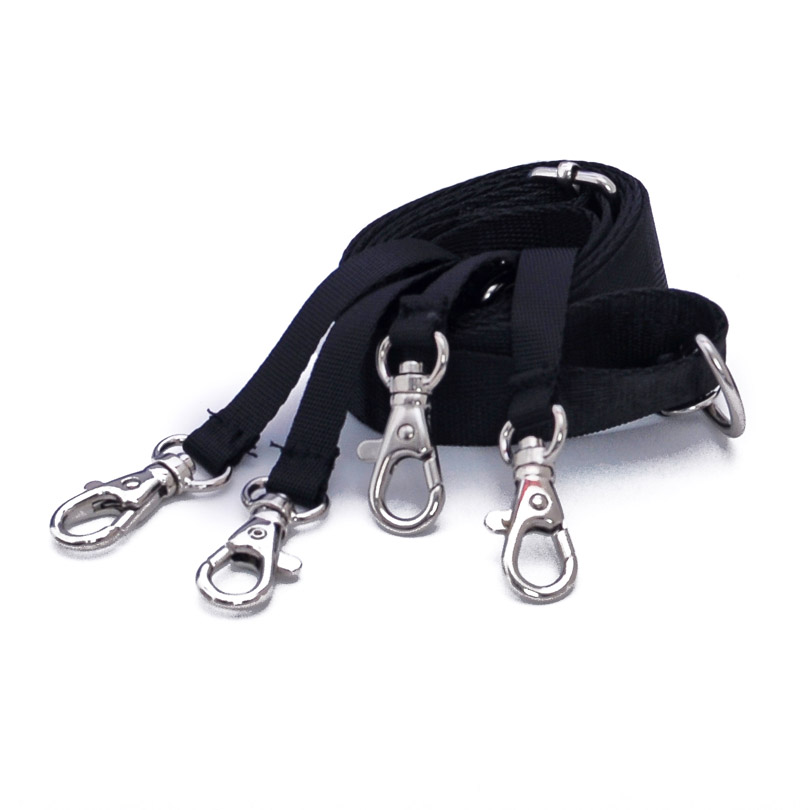

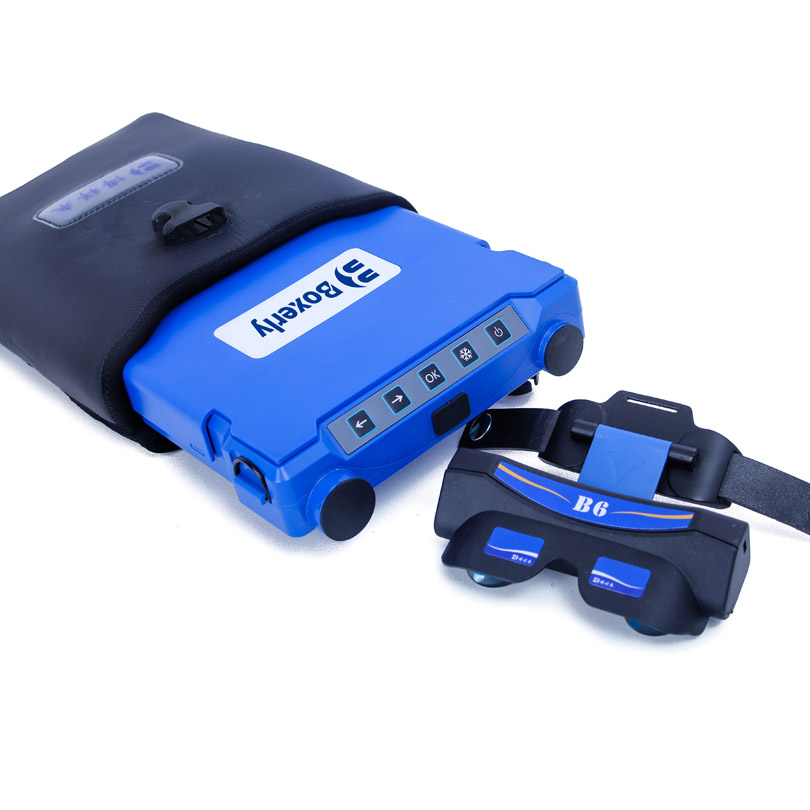

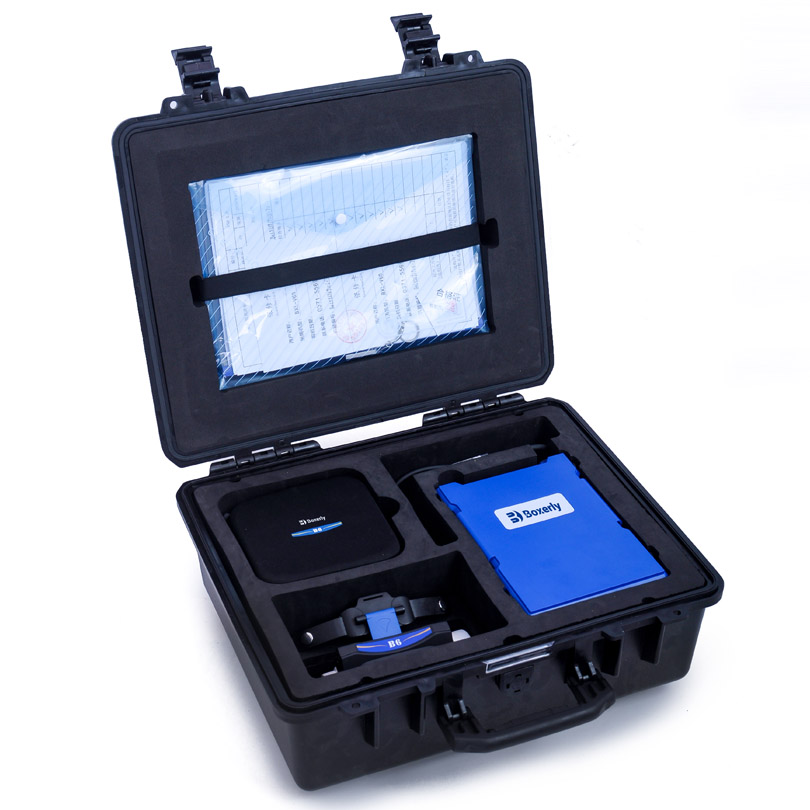

One host (including battery)、One video glasses、6.5MHz rectal probe、Adapter, host protection board, manual/warranty card/certificate, suitcase, shoulder bag.

Optional configuration: 6.5MHz rectal probe, 3.5MHz convex array probe, 6.5MHz sheep rectal probe, backfat eye muscle area probe

Main unit: 18 months
Probe: 12 months
