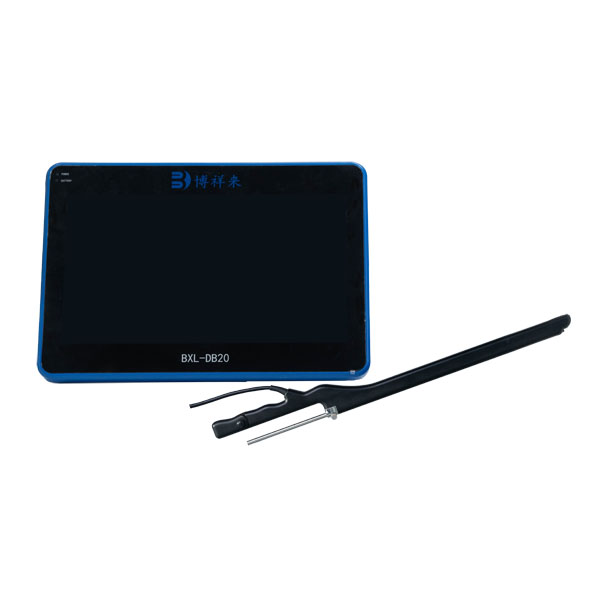

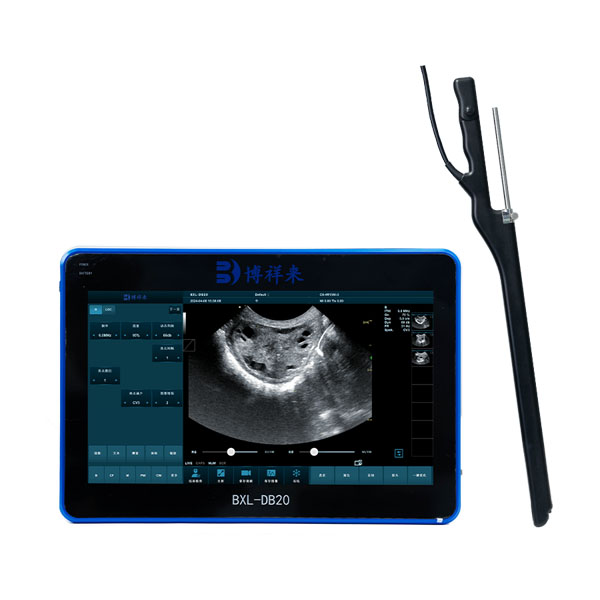

BXL-DB20 Veterinary Doppler Color OPU Ultrasound Equipment

Product Features: Wireless connection
Working: ≥3H
Screen: Wireless connection screen
Sunshade:
Weight: 6KG
Water-proof、Dush-proof、Drop-proof。
Description Warranty Info
Description

The BXL-DB20 portable cattle OPU Equipment provides a reliable scientific basis for improving insemination rates.

BXL-DB20 Main Technical Specifications


1. Applicable conditions: waterproof and dustproof, IP54,anti-fall

2. Power supply: AC220V±10%,50Hz±1

3. Device weight: 6KGs

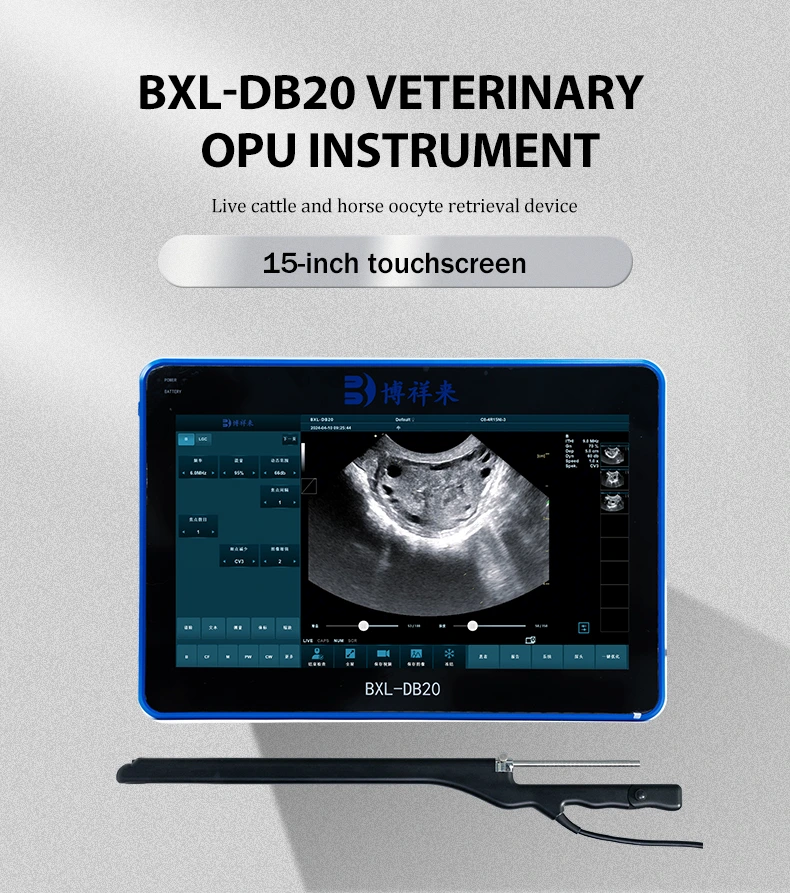

4. Main screen size: 15-inch; Touch screen Resolution: 1920*1080

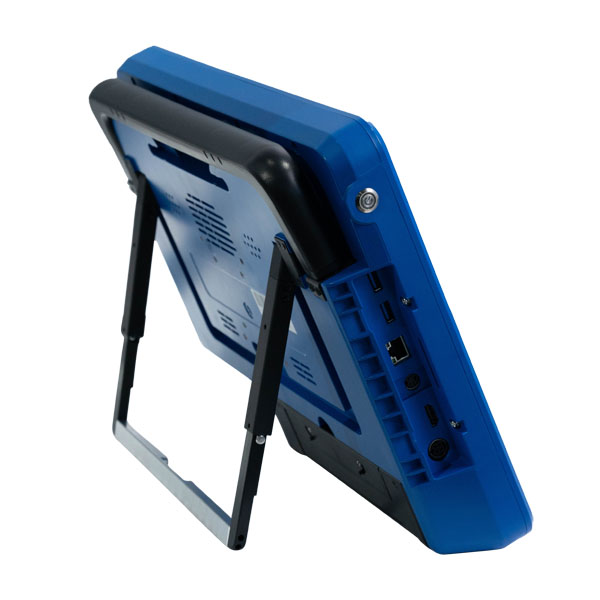

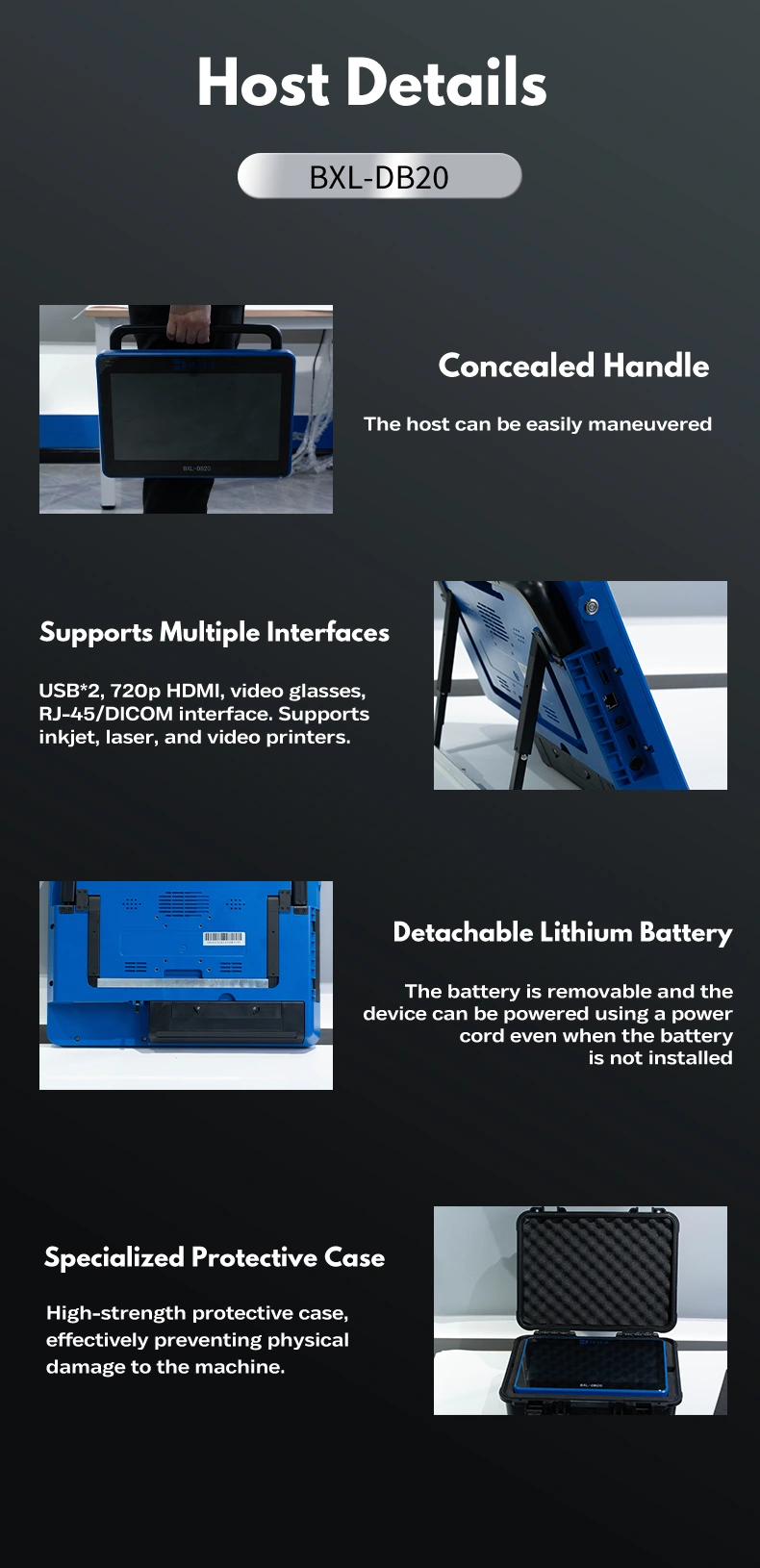

5. The device has a handle (can be suspended), and a mobile bracket (adjustable angle), and can be suspended on a mobile cart.

6. Digital Channels:64 Channels

7. Imaging mode: Color Doppler imaging system

8. Scan depth: ≥30cm

9. Image display: 256 grayscale

10. Animal body marker: ≥24 Species

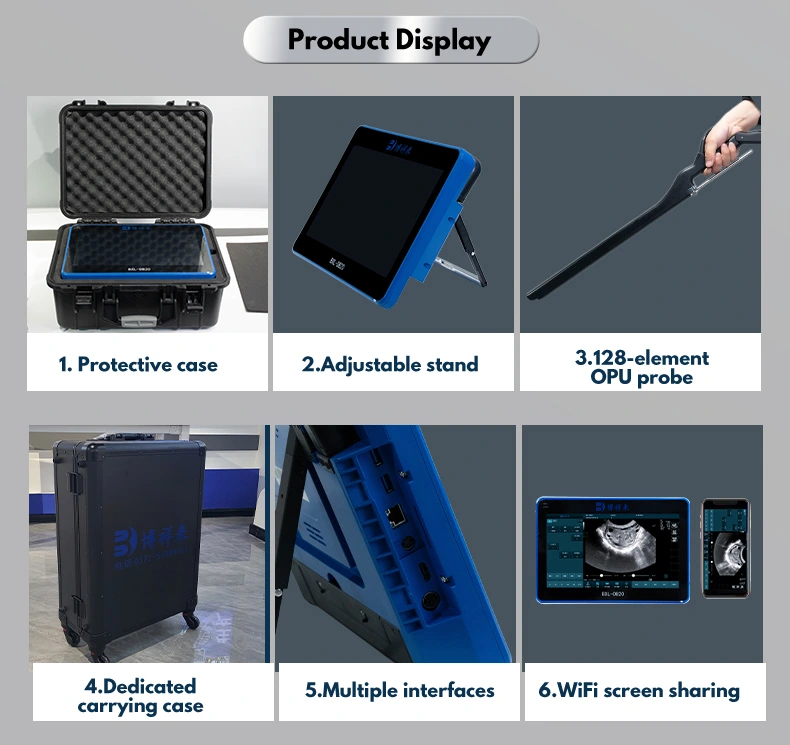

11. Wireless WiFi connection and Bluetooth connection wirelessly connect mobile phones and IPad synchronization display images with wireless remote control. RFID Electronic Ear Tag Scanning

12. Working time: ≥3 hours

13. Image, video storage.

14. Built-in professional OPU system program, can set the location direction of the oocyte retrieval needle. There are oocyte retrieval needle guide line, oocyte retrieval needle guide line with scale ruler, oocyte retrieval needle guide line with center line, oocyte retrieval needle puncture image enhancement processing.

15. Image rotation: 0 °, 90 °, 180 °, 270 ° rotation; Image flip: up and down.

16. Scan type: normal, compound extension, etc

17. Host with stylus, wireless connection keyboard, wireless connection mouse

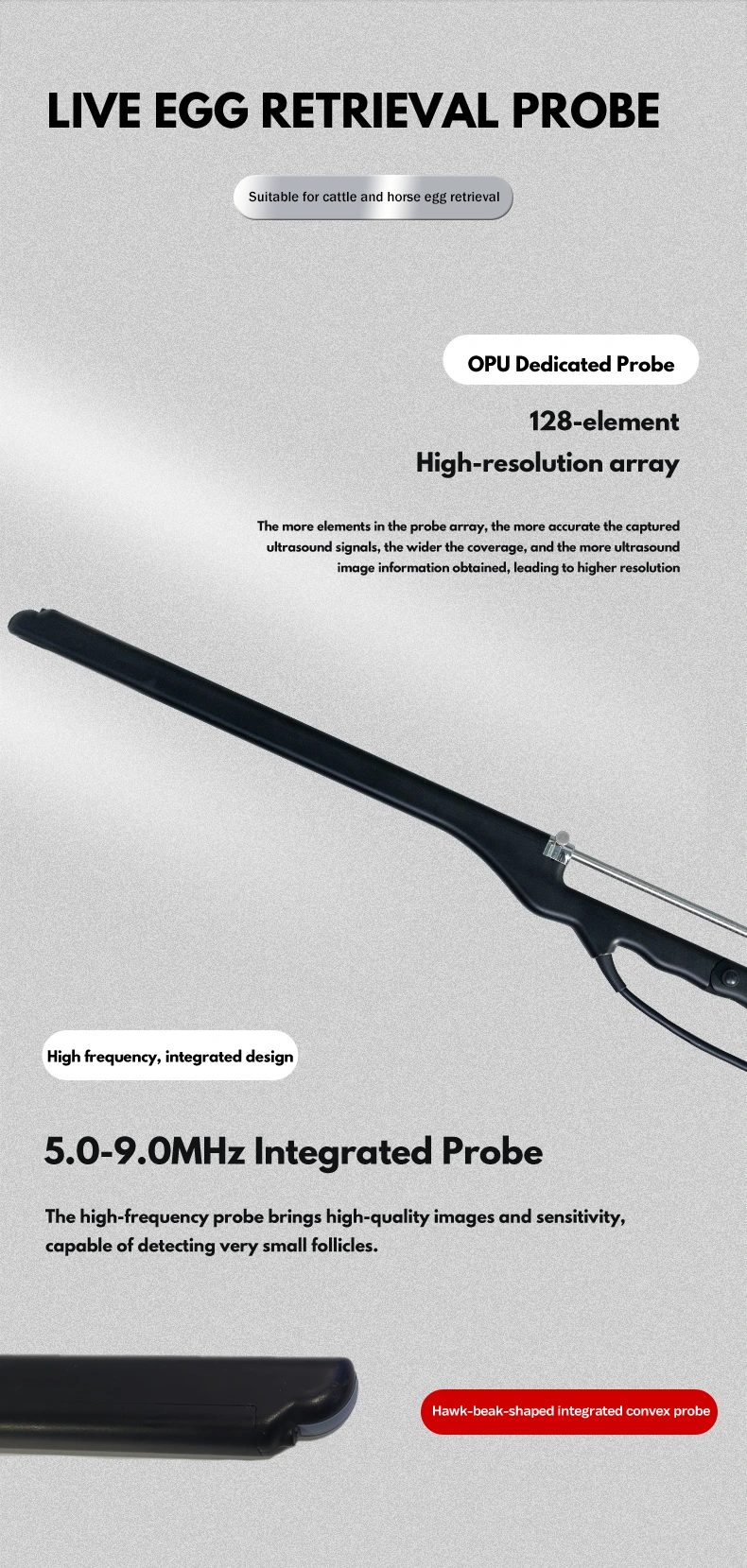

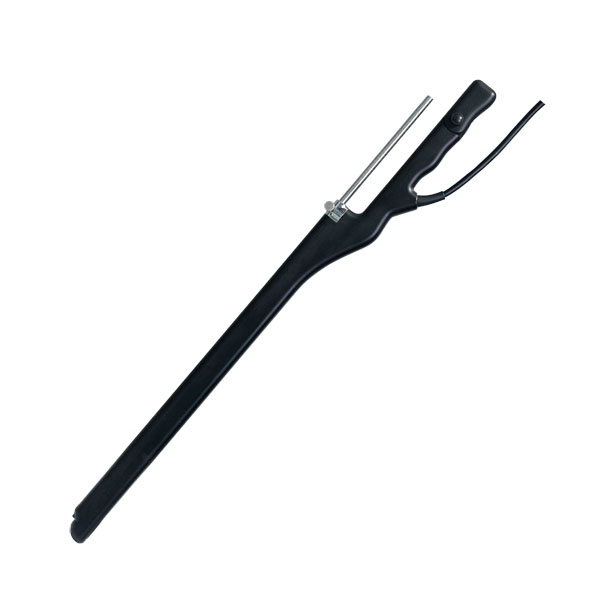

18. Optional probe type: Animal OPU special micro-convex probe, animal special back fat linear arrar probe and other probes

19. Mage adjustment: Focus adjustment, focus position and quantity adjustable. The image frame is adjusted on average and the frame is adjustable on average. The spots are reduced with 5 adjustments.

20. Image Editing: Can edit stored images

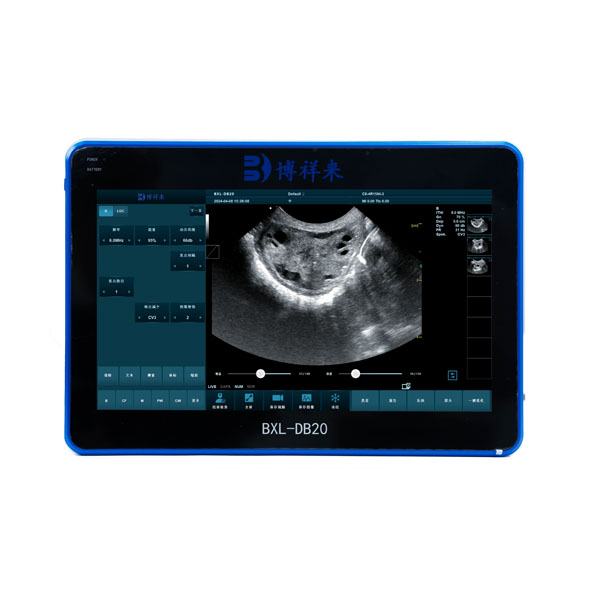

BXL-DB20 Veterinary Doppler Color OPU Ultrasound Equipment(图1)

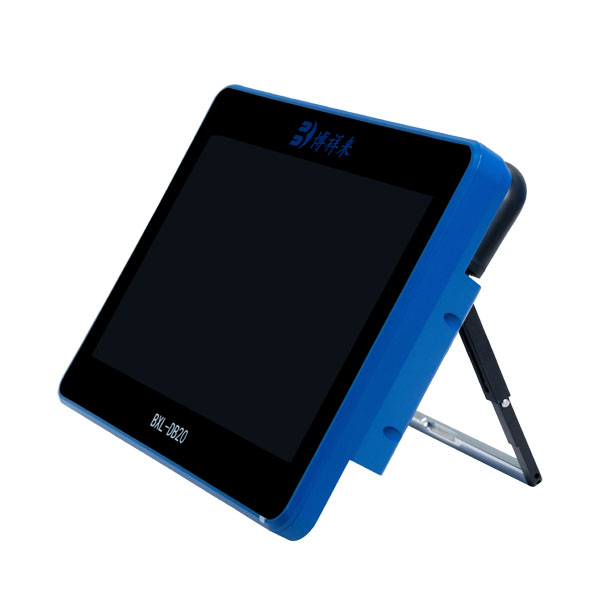

BXL-DB20 Veterinary Doppler Color OPU Ultrasound Equipment(图2)

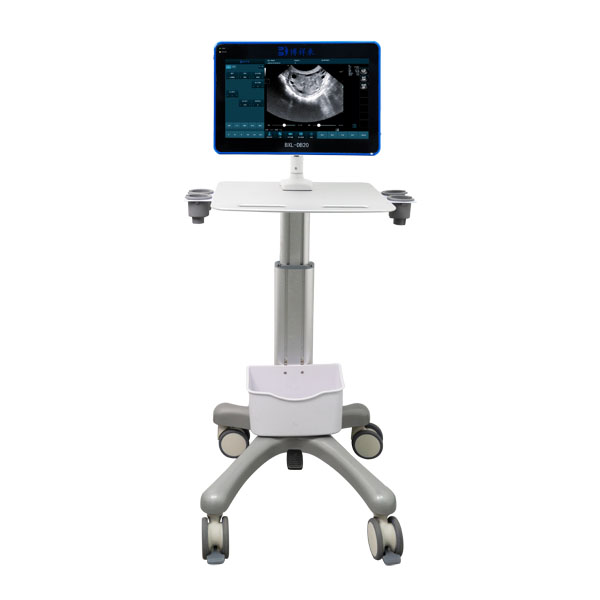

BXL-DB20 Veterinary Doppler Color OPU Ultrasound Equipment(图3)

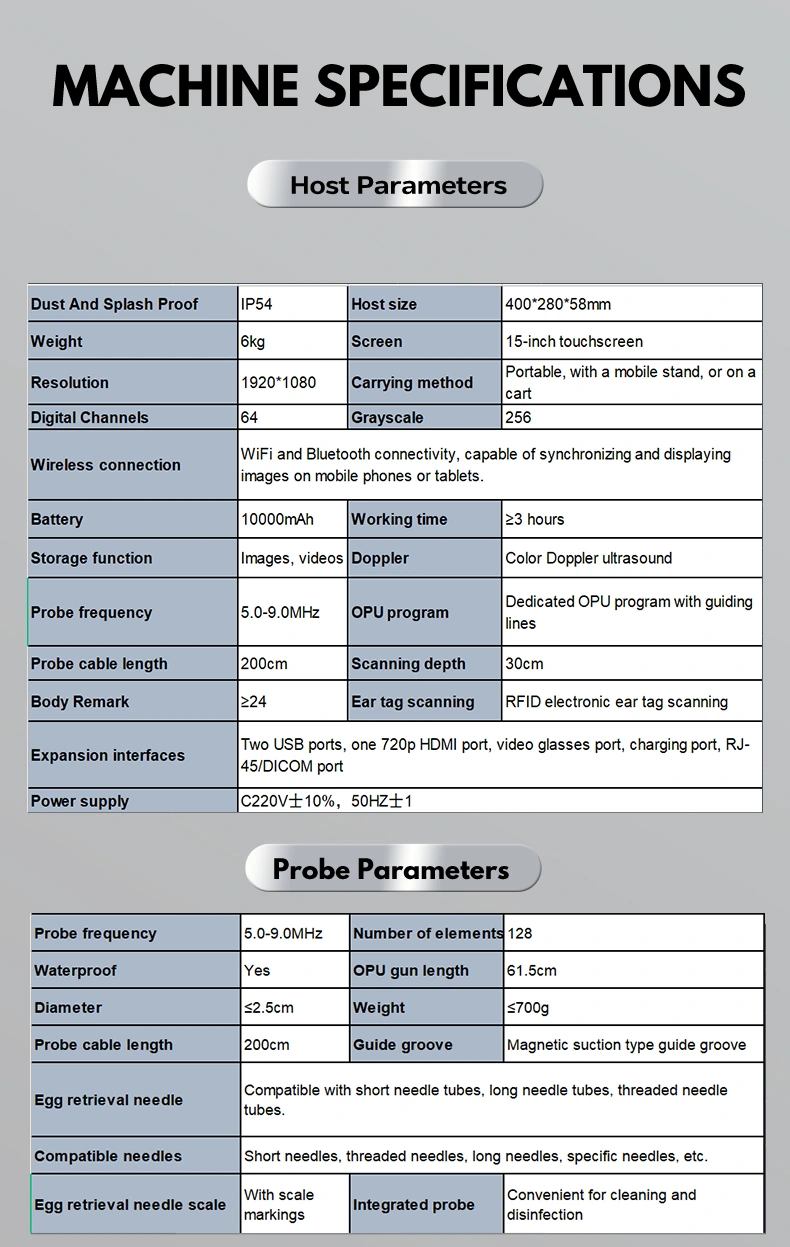

BXL-DB20 Veterinary Doppler Color OPU Ultrasound Equipment(图4)

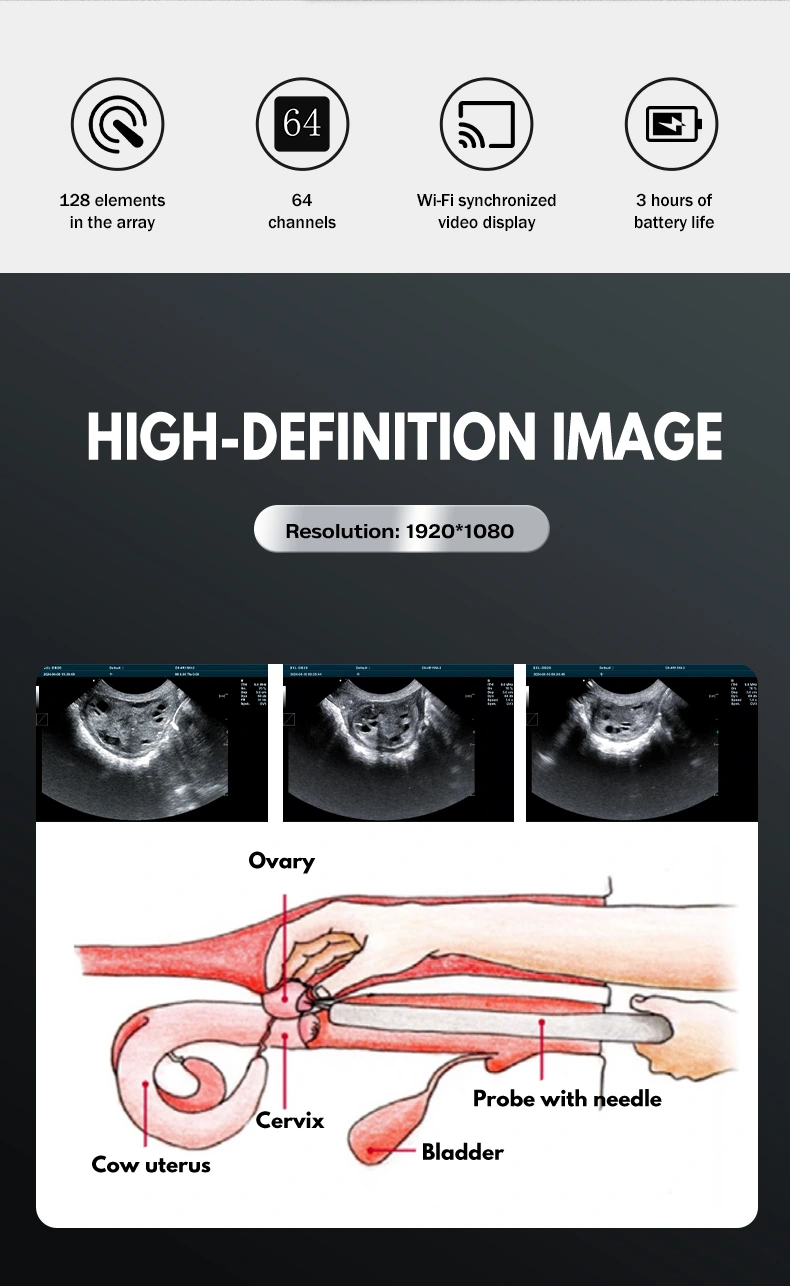

BXL-DB20 Veterinary Doppler Color OPU Ultrasound Equipment(图5)

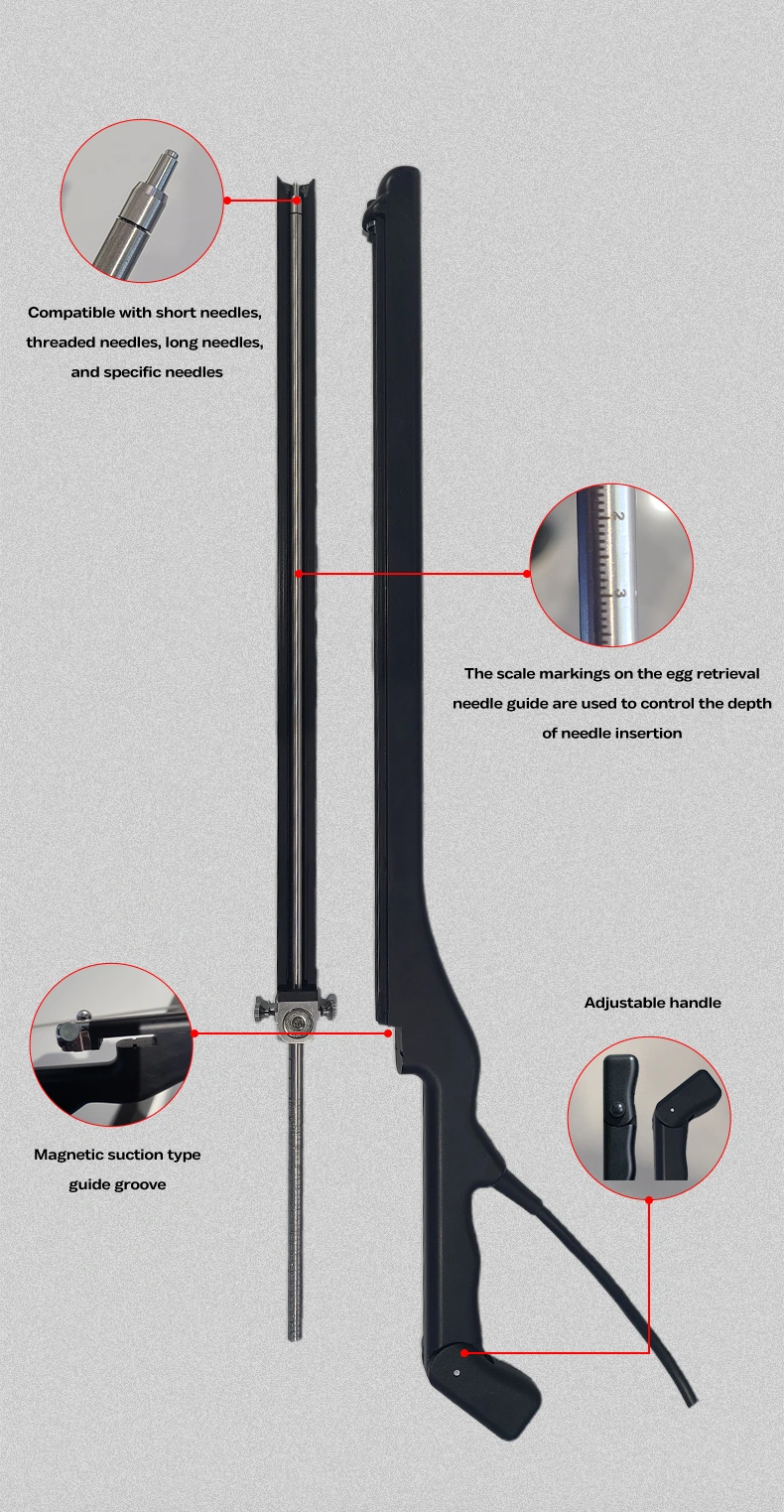

BXL-DB20 Veterinary Doppler Color OPU Ultrasound Equipment(图6)

Warranty Info

Main unit: 18 months
Probe: 12 months
