BXL-S101

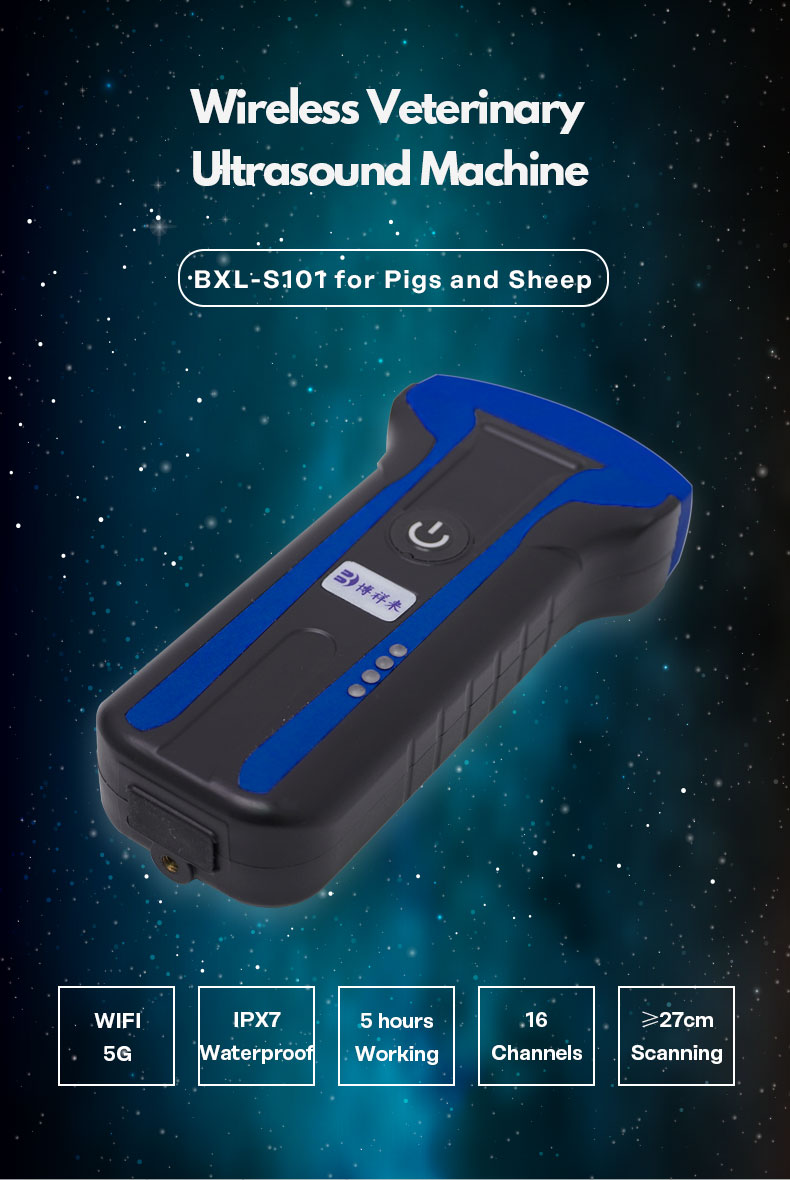

The BXL-S101 is a fully digital, wireless ultrasound system designed specifically for animals like cattle, sheep, pigs, and more. With IPX7 waterproofing, 5G image transmission, and compatibility with iPads, smartphones, and PCs, it offers high flexibility and clarity. It features over 30 preset scan modes, a 60 fps frame rate, 27cm scan depth, and supports multiple measurements and diagnoses including pregnancy and ovarian conditions. Lightweight at 250g, it supports various carry modes and remote system upgrades, making it ideal for field veterinarians.

Talk to an expert

Specifications

The BXL-S101 is a waterproof and dustproof wireless ultrasound system, that provides clear imaging for detecting pregnancy in cattle and horses, as well as follicle and corpus luteum development.

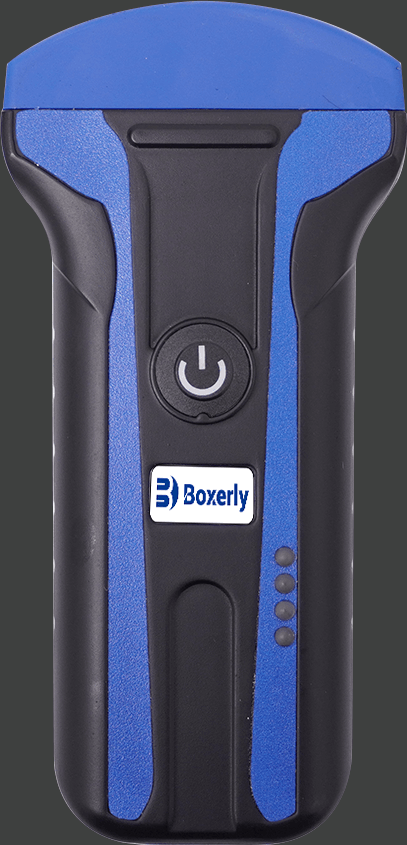

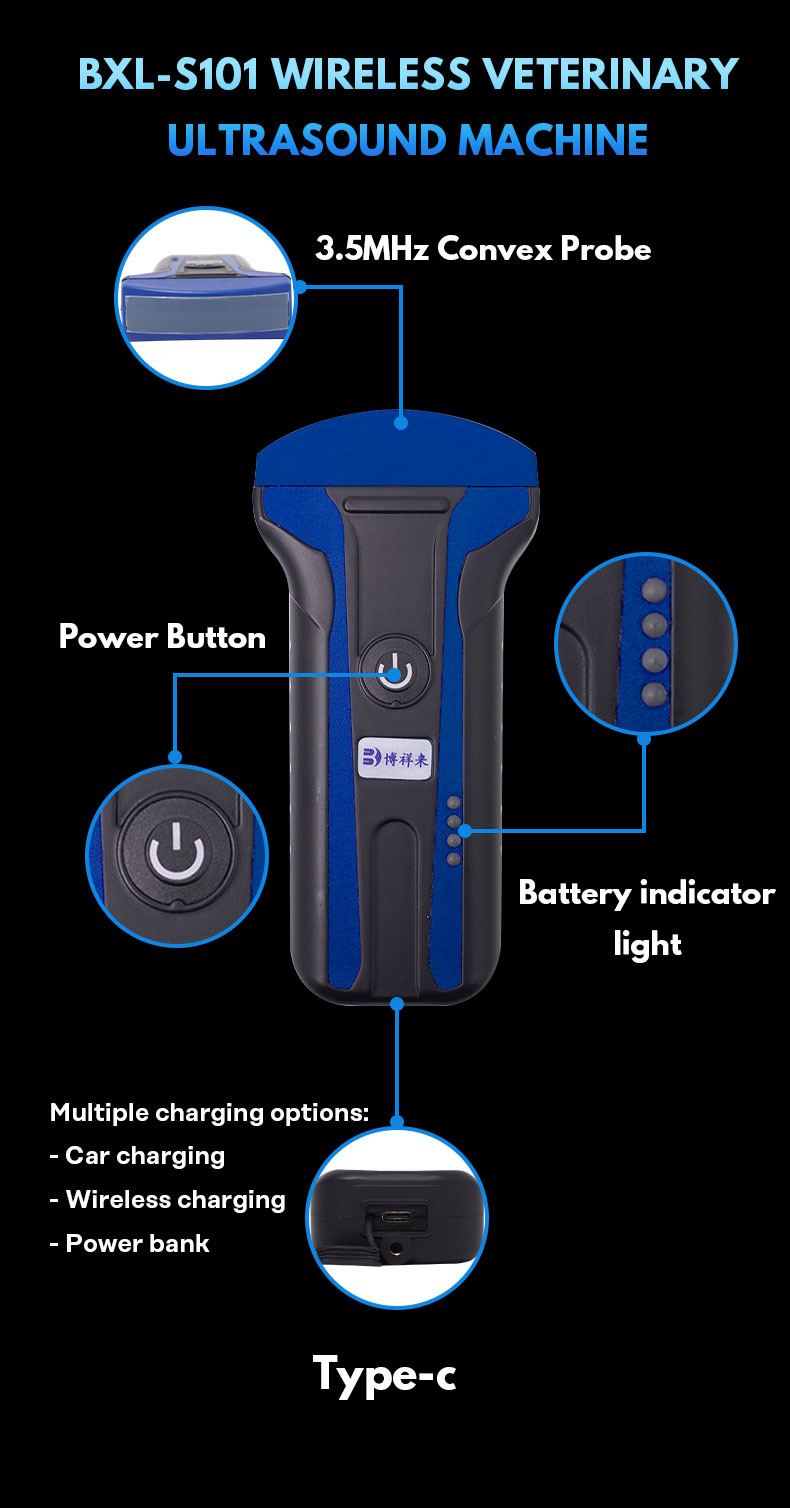

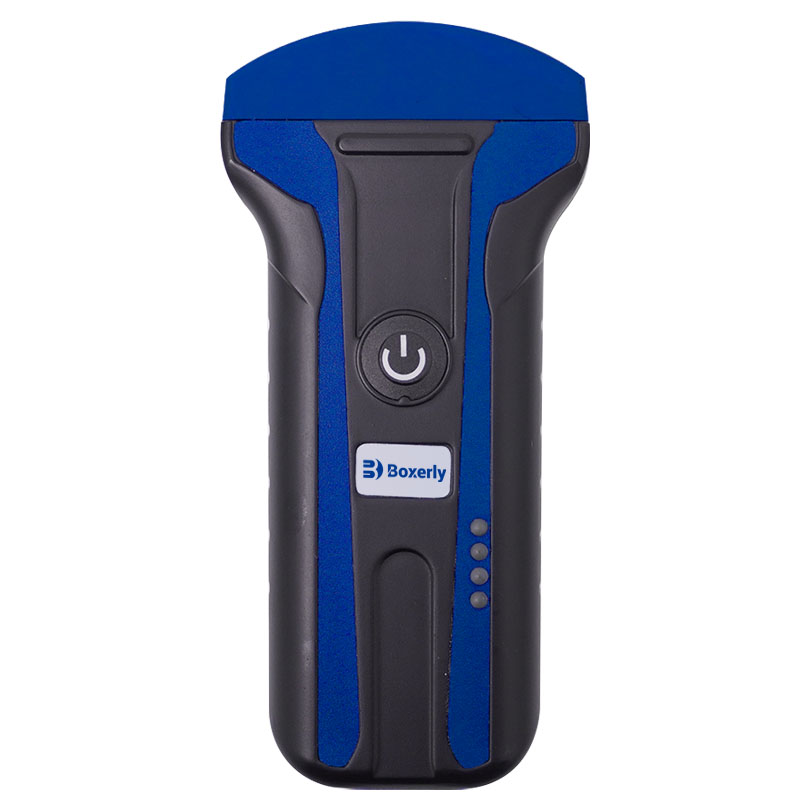

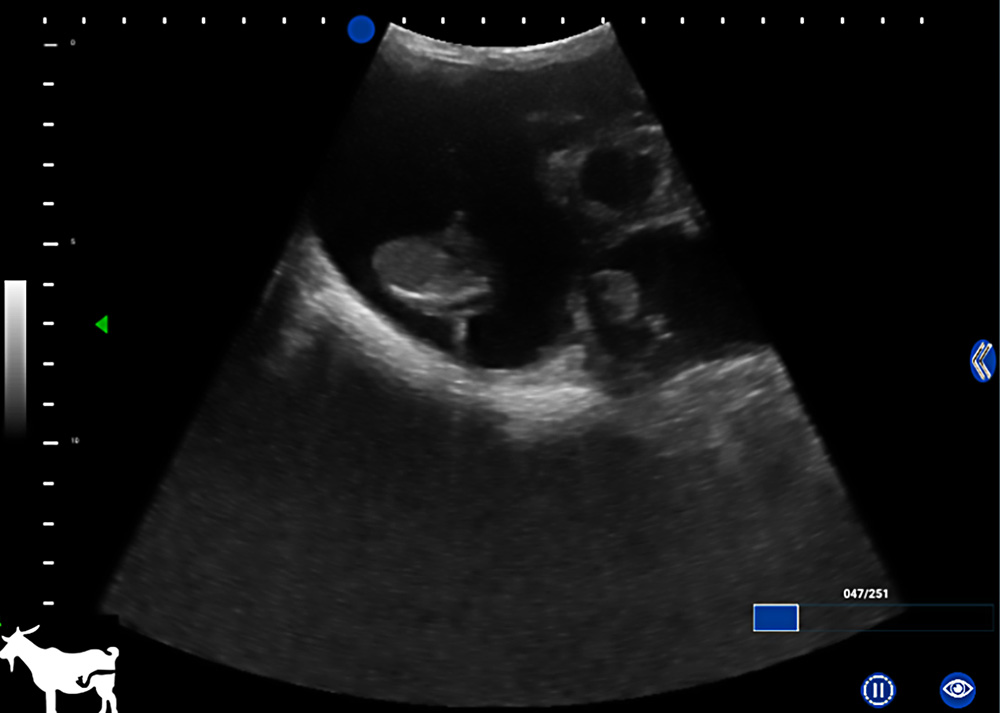

BXL-S101 Wireless veterinary ultrasound machine(图1)

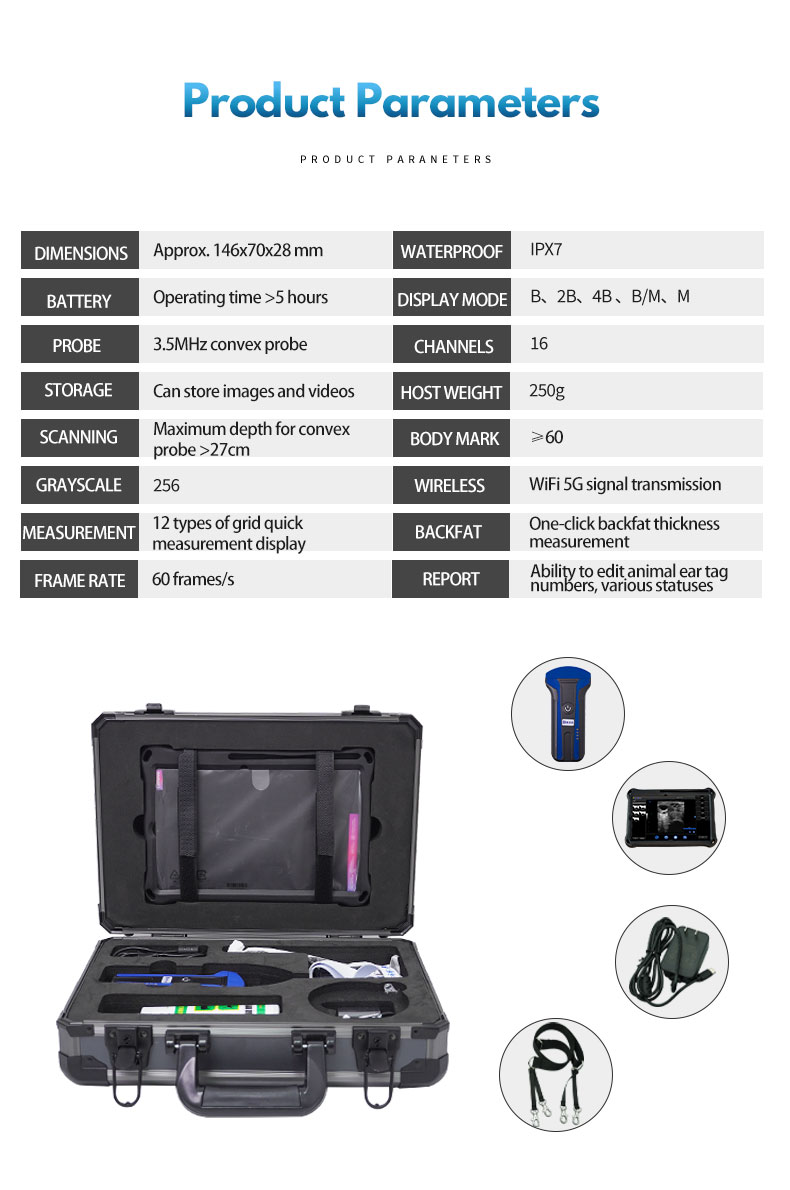

Technical parameters:

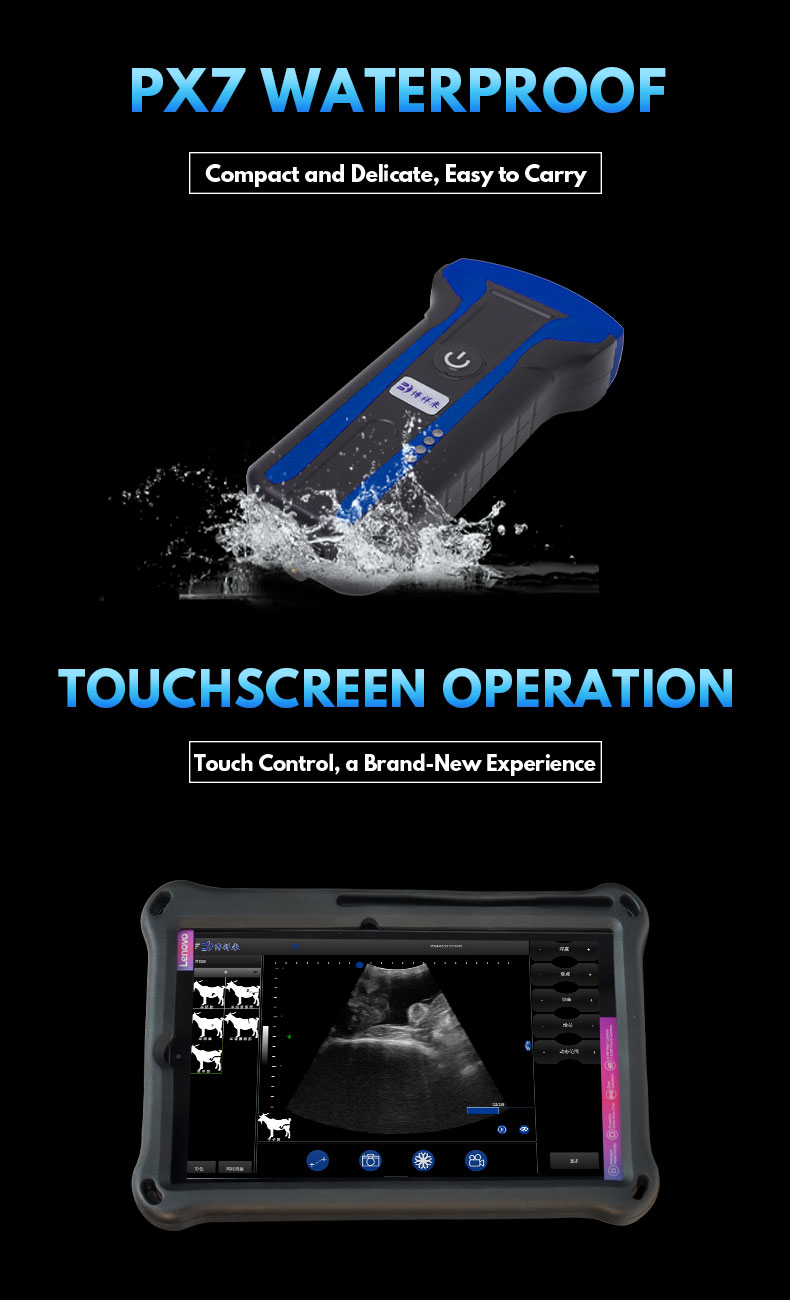

1.1. The whole machine is waterproof and dustproof, with a waterproof level of IPX7; Durable and sturdy

1.2. Fully digital wireless small waist animal specific ultrasound system, suitable for scanning cattle, sheep, horses, pigs, donkeys, camels, small animals, wild animals and other animals

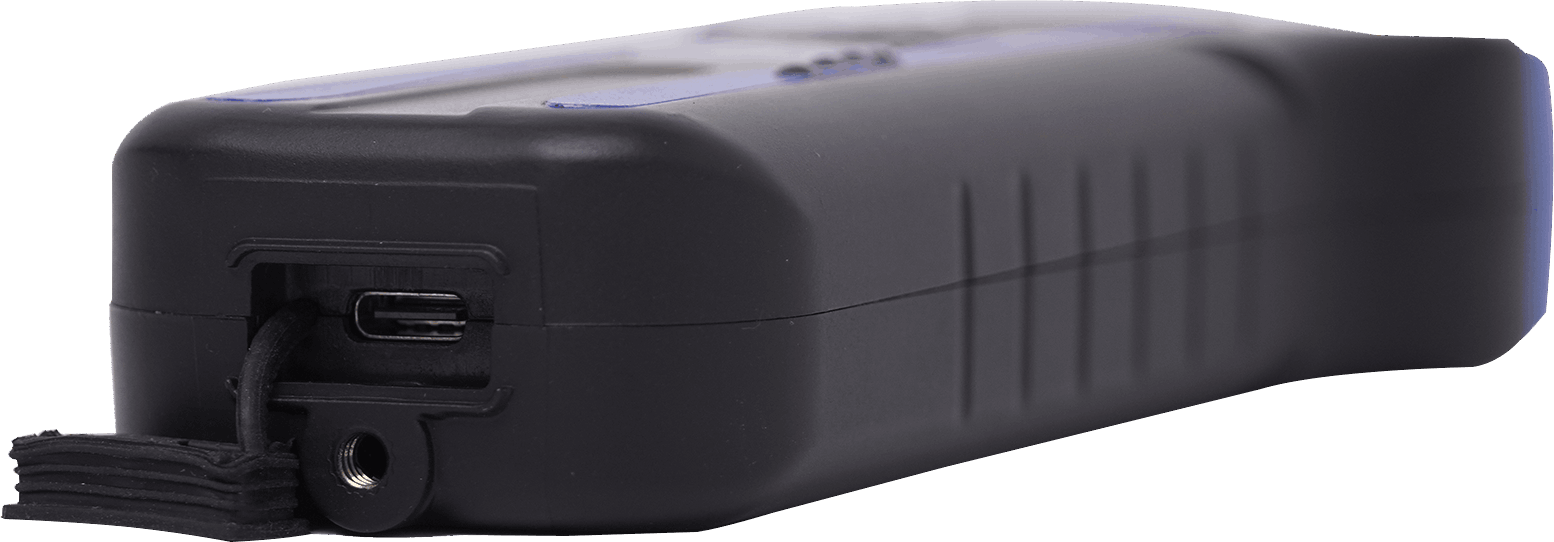

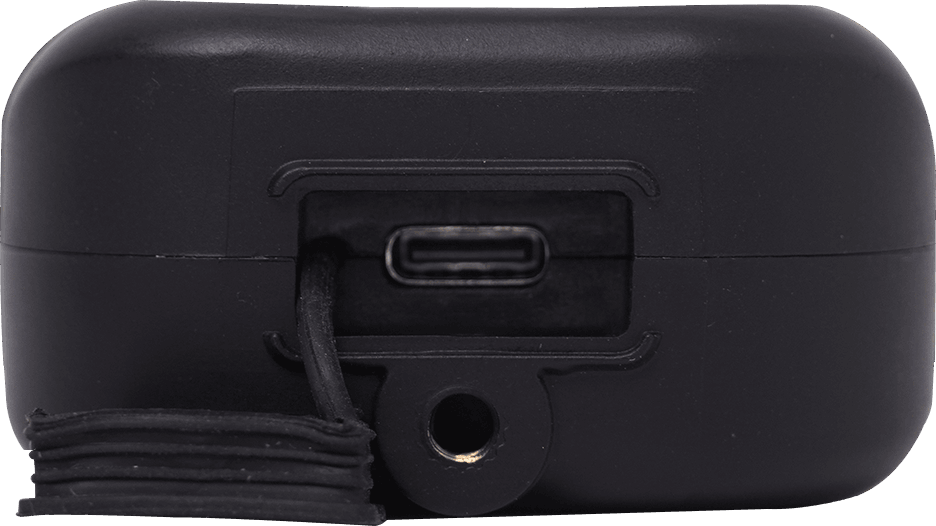

1.3. Built in lithium battery, with a working range of ≥ 5 hours. Type-C data cable charging, capable of wireless charging, in car charging, fast charging, and power supply from power banks

1.4. The host system comes with a WI Fi module to achieve wireless transmission mode and 5G transmission

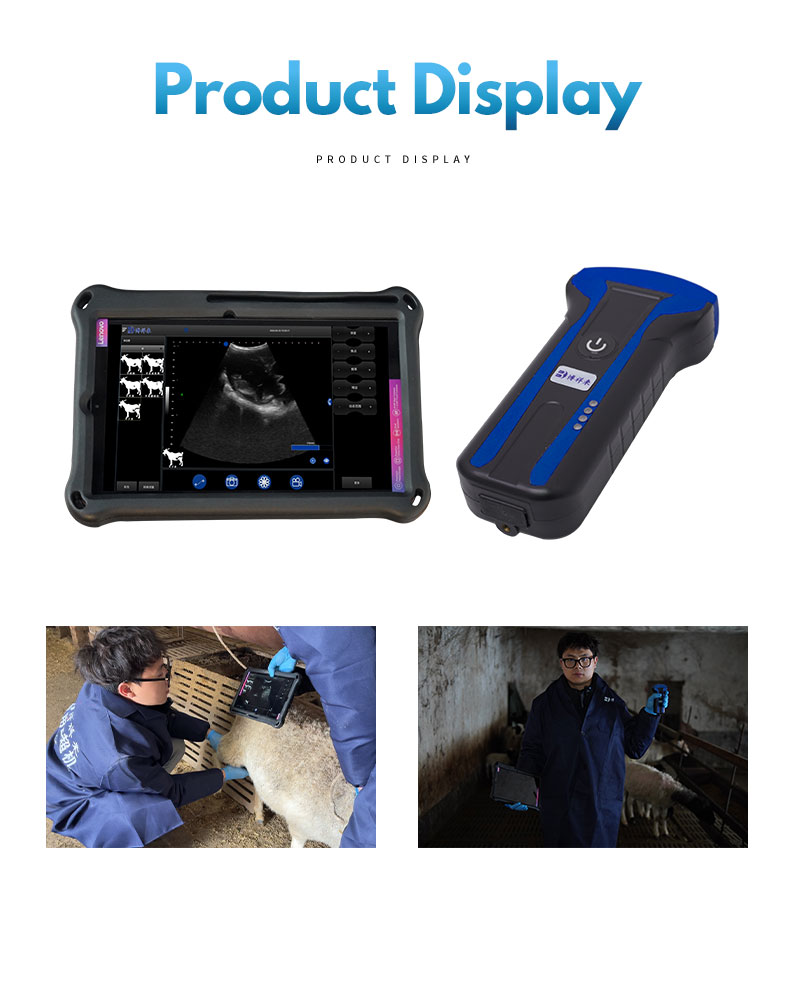

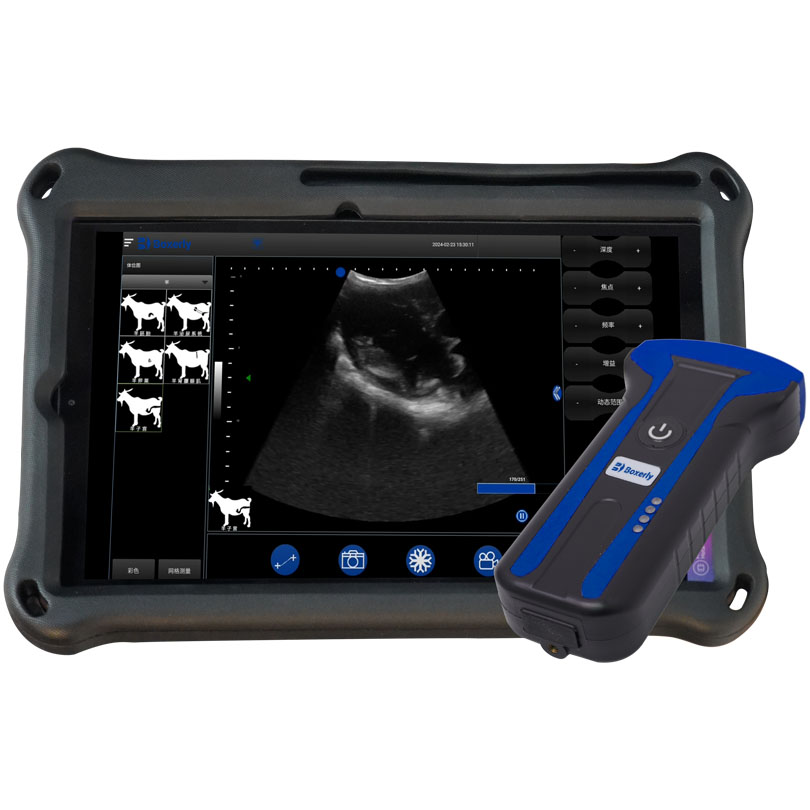

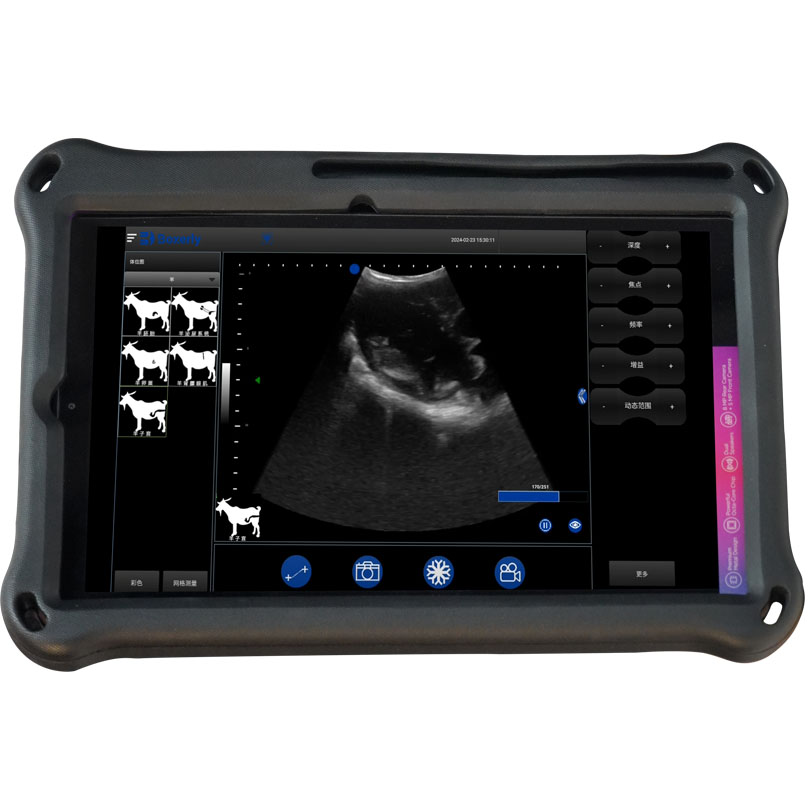

1.5. Wireless connection display support: iPad tablet, smartphone, laptop, desktop computer. Display size and resolution can be selected at your own discretion

1.6. Free APP wireless display for monitor installation, APP compatible with operating systems: Android, Windows (Microsoft)

1.7. Inspection types: The software has preset inspection modes for embryos, ovaries, uterus, urinary system, backfat, and other parts corresponding to animals such as cows, sheep, horses, pigs, and donkeys,

Various modes can be selected for corresponding inspections and professional measurements. The corresponding host parameters have been fixed in each mode. Check modes ≥ 30

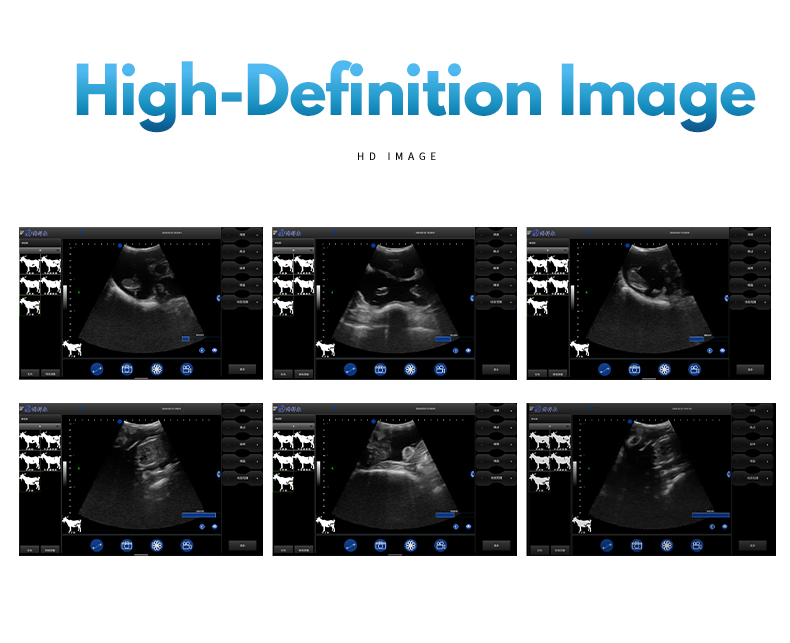

1.8. Image display modes: B, 2B, 4B, B/M, M and other display modes.

1.9 Harmonic imaging: Two frequency ranges: S1005-10MHz; S1012.9-5.0MHz; S1042.9-5.0MHz Gain adjustment: 0-255

Dynamic range adjustment: 0-15 Transmission power: 0-3

1.10. Focus: S101:3-1513 gear adjustment

1.11 Scanning depth: maximum depth ≥ 27cm

1.12. Fragment gain: TGC can be adjusted in eight segments, and TGC can be adjusted with one click

1.13. Parameter sliding adjustment

1.14. Equipped with both Chinese and English operating interfaces

1.15. System grayscale: 256 levels, system dynamic range ≥ 180dB, A/D conversion ≥ 12bit

1.16. Number of channels: 16

1.17. Host startup time: 1 second. The host is equipped with a freeze key all digital beamformer

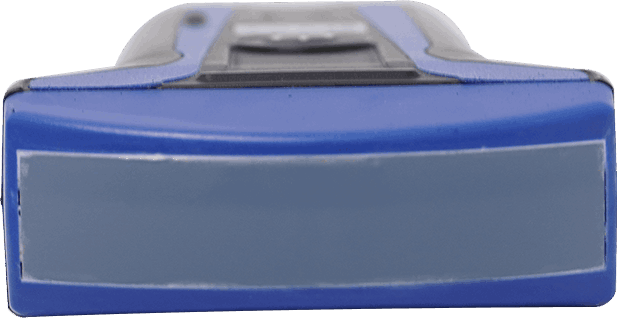

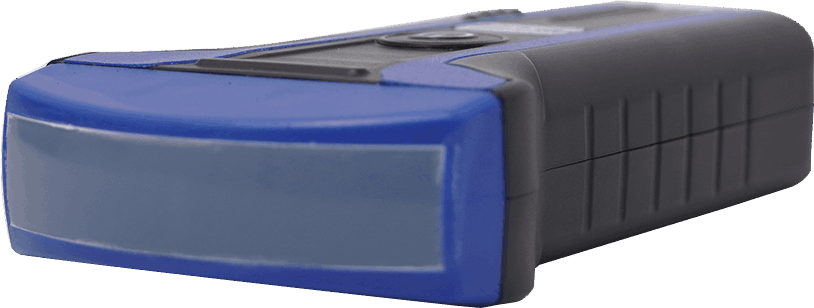

1.18. Host probe: S100: 6.5MHz rectal linear array; S101:3.5MHz convex array; S104:3.5MHz Rectal Convex Array

1.19. Body markings: Cattle (embryo, ovary, uterus, urinary system, backfat, buttocks, etc.), pigs (embryo, ovary, uterus, urinary system, backfat, buttocks, etc.)

Animals such as goats (embryos, ovaries, uterus, urinary system, backfat, buttocks, etc.), water buffaloes, sheep, alpacas, cats, dogs, etc

Same body marker, no less than 60 body markers

1.20, Measurement and Analysis: Supports basic measurements such as distance, perimeter, area, and circular area, with multiple specialized obstetric analysis software packages for animals, and ≥ 30 types of obstetric measurements for animals. heart

Various measurement functions such as dirty measurement

1.21. Host usage: It can be clipped onto a belt and held in hand. Display usage: wrist, sling

1.22. Grid setting quick measurement function, displaying 12 types of grid quick measurement

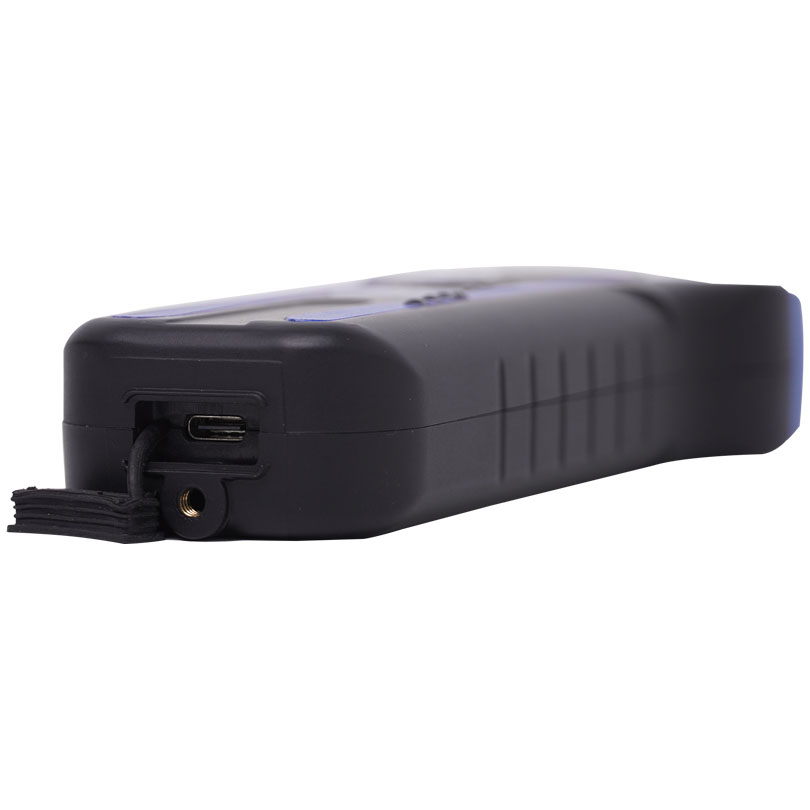

1.23. One click measurement of backfat thickness function; S101 and 104 are equipped with screws to quickly fix extension rods, suitable for animal inspection

1.24. Multiple system preset functions, B-mode imaging can locally zoom in/out

1.25. Storage: Static image storage and preview, with the ability to add landmarks to images when saving, dynamic movie image storage and playback of ≥ 255 frames, expandable

1.26. Animal Report: Animal ear labels, various statuses, etc. can be edited. When saving animal image pictures, there is a corresponding function of taking animal photos

1.27. Rated input of the host: DC9.0V2.22A; Adapter output: DC9.0V2.22A

1.28. Power supply: 100-240V-0.8A Frequency: 50-60Hz

1.29. Weight: The total weight of the machine is 300g (with probe)

1.30. Image frame rate: 60 frames per second

1.31. Host size: S100: approximately 174 x 70 x 28mm (length x width x height); S101:146 × 70 × 28mm (length x width x height); S104:174 × 70 × 28mm (length × width × height)

1.32. Software version: Animal specific version

major function

2.1 Wireless WiFi connection for iPad tablets, smartphones, laptops, and desktop computers

2.2. Support full screen function

2.3. Support report preview function

2.4 One click optimization function

2.5 THI tissue harmonic imaging technology function

2.6. Equipped with digital focusing function

2.7. Speckle noise suppression technology function

2.8. Support spatial composite imaging function

2.9. Support 2D image angle deviation function

2.10. Support parameter sliding adjustment function
